ASSEMBLY INSTRUCTIONS
7
Place all parts from the box in a cleared area and position them on the oor in front of you. Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com to the Services section and order the part needed, e-mail
us at customerservice@staminaproducts.com, or call us toll free at 1-800-375-7520 (in the U.S.). Our
Customer Service Staff is available to assist you from 7:30 A.M. to 5:00 P.M. (Central Time) Monday
through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.

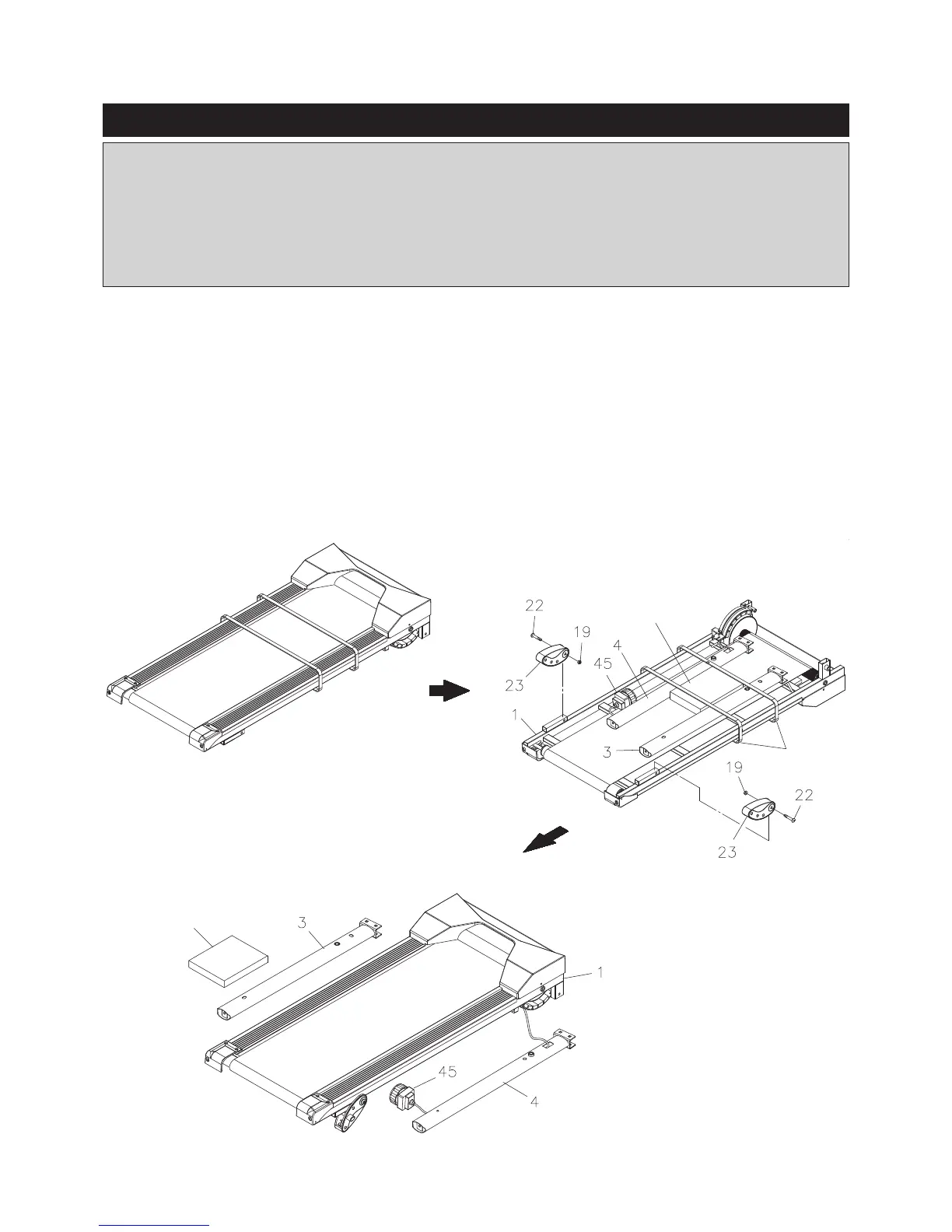

STEP 1
Remove the Avari® Adjustable Height Treadmill from its packing carton, the main assembly of the
product is shown in view 1. Turn the main assembly up-side down as shown in view 2. Attach the REAR
SUPPORTS(23) to the MAIN FRAME(1) with BUTTON HEAD BOLTS(M8x1.25x45mm)(22) and
NYLOCK NUTS(M8)(19) on both sides.
Cut off the packing straps and remove the LEFT UPRIGHT(3) and meter box from the main assembly.
The RIGHT UPRIGHT(4) is connected to the MAIN FRAME(1) by the cable of the TENSION KNOB(45).
Turn the MAIN FRAME(1) and the RIGHT UPRIGHT(4) back over as shown in view 3. Display the parts
on the oor as shown in view 3.
2.
3.
1.
Meter Box
Meter Box
Packing
Straps
To Next Page
