ASSEMBLY INSTRUCTIONS
8
STEP 2

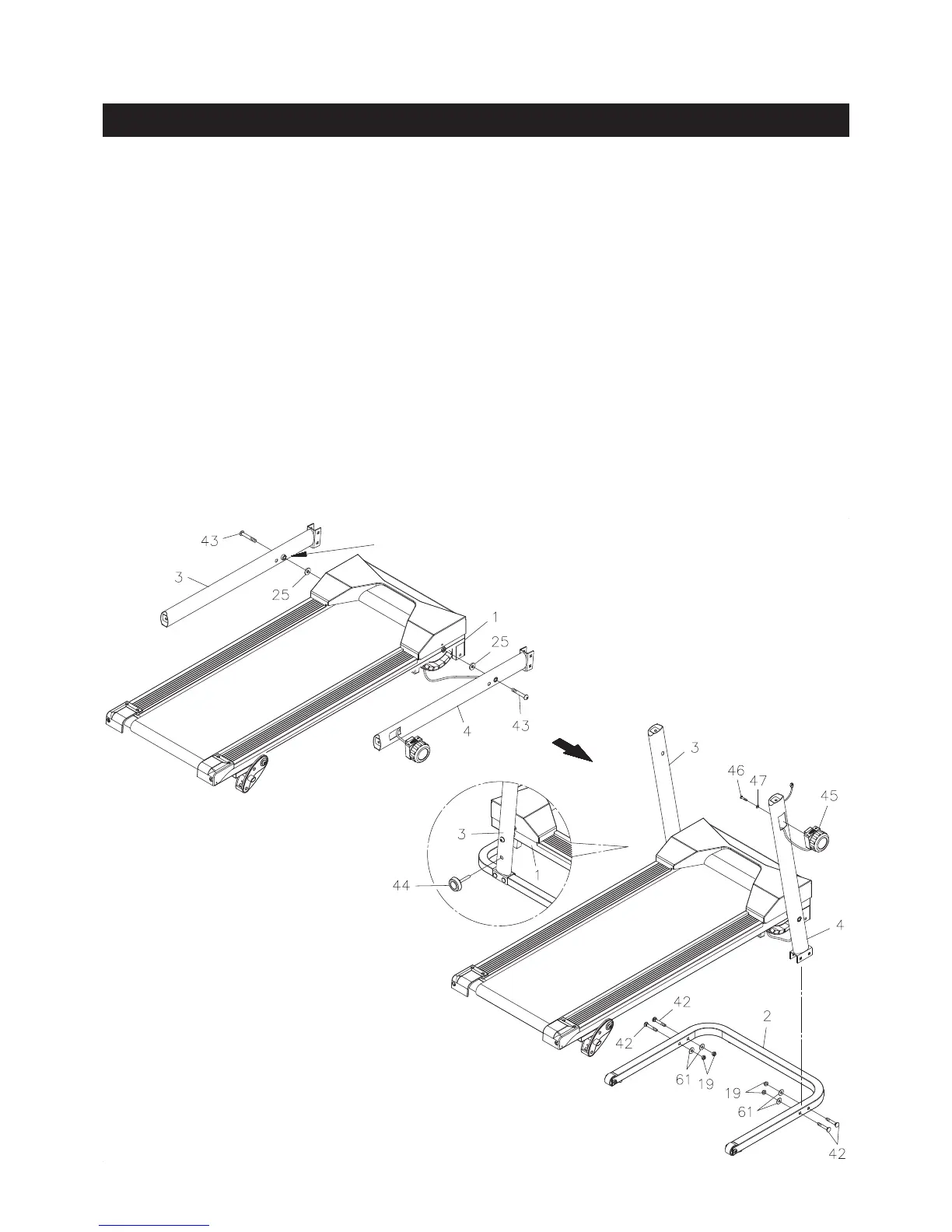

Refer to illustration A. Attach the RIGHT UPRIGHT(4) to the MAIN FRAME(1) with BUTTON HEAD
BOLT(M10x1.5x65mm)(43), and PLASTIC WASHER(ø10.2xø25x4mm)(25). Repeat on other side.
STEP 3
Refer to illustration B. Rotate the LEFT and RIGHT UPRIGHTS(3, 4) to the upright position. Attach the
LEFT and RIGHT UPRIGHTS(3, 4) to the BASE FRAME(2) with CARRIAGE BOLTS(M8x1.25x45)(42),
WASHERS(M8)(61), and NYLOCK NUTS(M8x1.25)(19).
STEP 4
Refer to the detail view. Lock the MAIN FRAME(1) in the unfolded position by inserting the LOCKING
KNOB(44) through the hole in the LEFT UPRIGHT(3) and screwing it into the MAIN FRAME(1).
STEP 5
Install the TENSION KNOB(45) into the opening in the RIGHT UPRIGHT(4) and secure with ROUND
HEAD SCREW(M5x0.8x15mm)(46) and WASHER(M5)(47).
A.
B.
Support Tube protuding
out at this side.
