ASSEMBLY INSTRUCTIONS
STEP 6

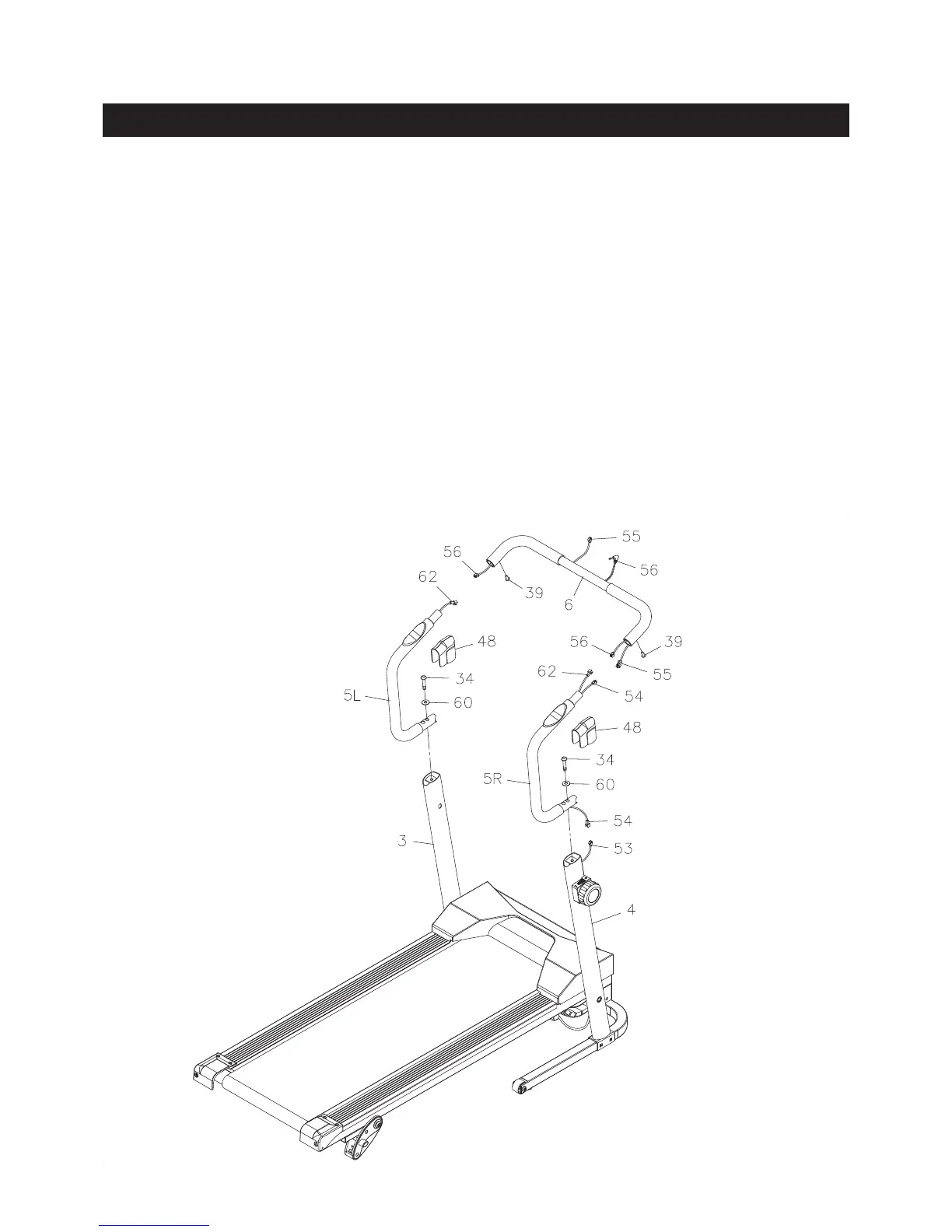

Refer to the illustration below. Attach the RIGHT HANDRAIL(5R), the one with EXTENSION WIRE(54),
to the RIGHT UPRIGHT(4) with BUTTON HEAD BOLTS(M8x1.25x40)(34) and ARC WASHERS(M8)(60).
Attach the LEFT HANDRAIL(5L) to the LEFT UPRIGHT(3) with BUTTON HEAD BOLTS(M8x1.25x40)
(34) and ARC WASHERS(M8)(60). DO NOT TIGHTEN THE BUTTON HEAD BOLTS(M8x1.25x40)(34).
STEP 7
Plug the EXTENSION WIRE(54) into the METER CONNECTING WIRE(55). Connect the PULSE
SENSOR WIRES(62) to the PULSE CONNECTING WIRES(56). Push the wires back inside of the
LEFT and RIGHT HANDRAILS(5L, 5R). Insert the FRONT HANDRAIL(6) onto the LEFT and RIGHT
HANDRAILS(5L, 5R) and secure with the ROUND HEAD BOLTS(M6x1x15mm)(39).
STEP 8
Securely tighten the BUTTON HEAD BOLTS(M8x1.25x40)(34) from STEP 6. Connect the EXTENSION
WIRE(54) which is attached on the RIGHT HANDRAIL(5R) to the SENSOR CONNECTING WIRE(53).
Press the HANDRAIL CAPS(48) onto the LEFT and RIGHT HANDRAILS(5L, 5R) to cover the top ends
of the LEFT and RIGHT UPRIGHTS(3, 4).
9
