10
ASSEMBLY INSTRUCTIONS

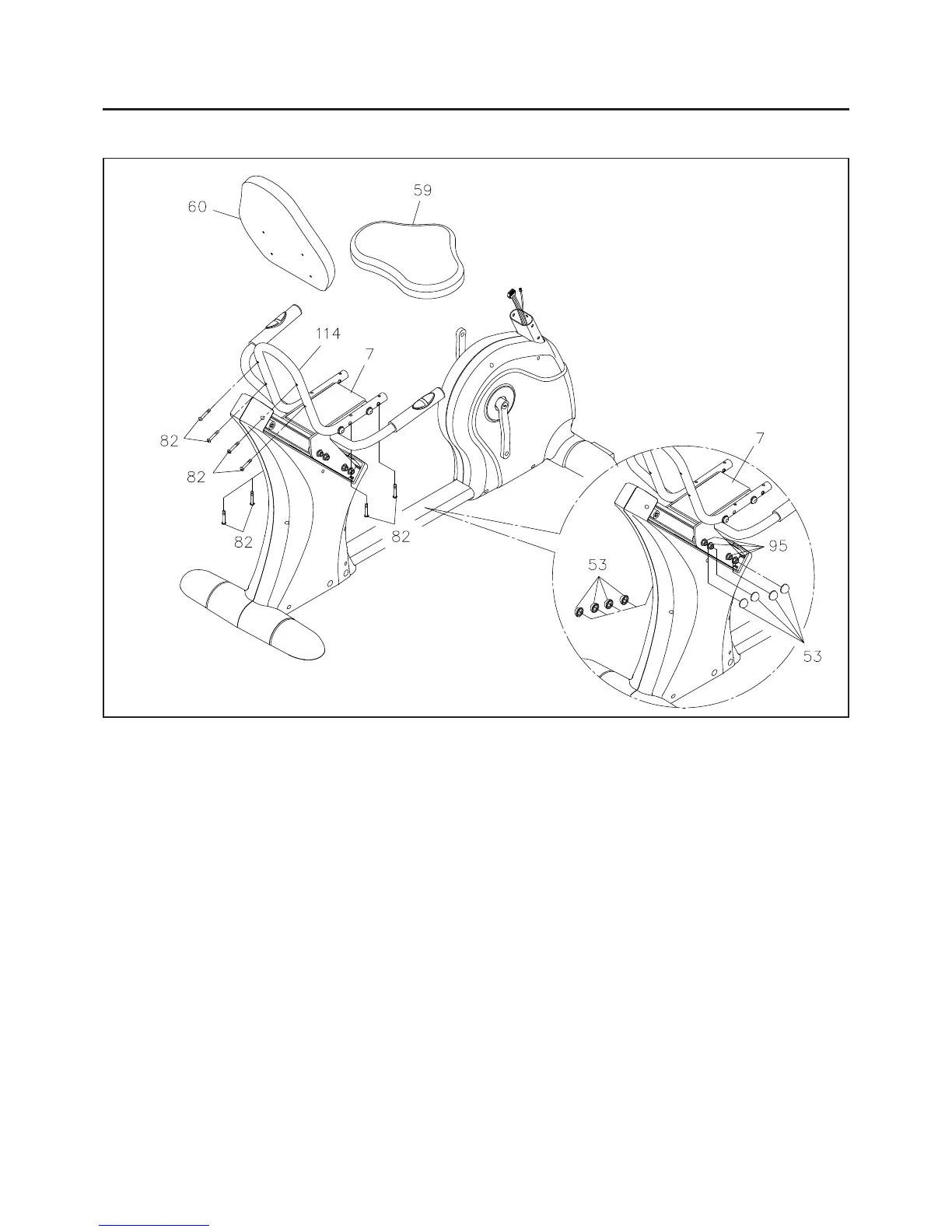

STEP 9
Attach the SEAT(59) and BACK CUSHION(60) to the SEAT FRAME(114) with ROUND HEAD BOLTS
(M6x1x38mm)(82).
STEP 10
Refer to the inset drawing. Press the NUT CAPS(M10)(53) onto the NYLOCK NUTS(M10x1.5)(95) on both
sides of the SEAT CARRIAGE(7).
