ASSEMBLY INSTRUCTIONS
7
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please call
our toll-free number for assistance 1-800-375-7520 or e-mail us at customerservice@staminaproducts.com.
Wheel(118)
Wheel(118)
STEP 1

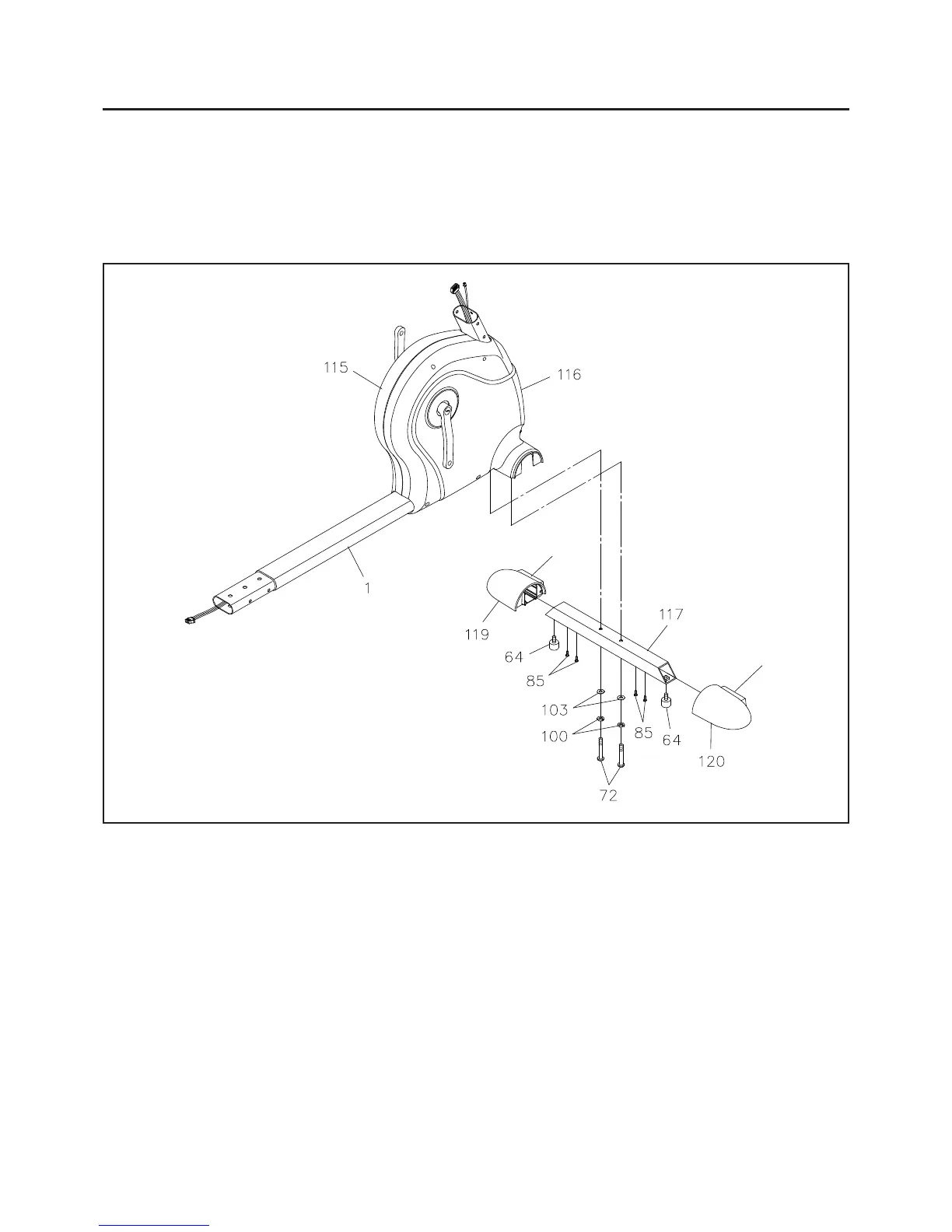

Attach the FRONT STABILIZER(117) to the FRONT FRAME(1) with BUTTON HEAD BOLTS
(M8x1.25x53mm)(72), LOCK WASHERS(M8)(100), and WASHERS(M8)(103).
STEP 2
Make the WHEELS(118) on the LEFT and RIGHT FOOT CAPS(119, 120) face the front. Slide the LEFT
and RIGHT FOOT CAPS(119, 120) onto both ends of the FRONT STABILIZER(117) so they fit over the
edges of the LEFT and RIGHT COVERS(115, 116) and secure with ROUND HEAD SCREWS
(M4x0.7x15mm)(85). Screw the FOOT STANDS(64) all the way up into the FRONT STABILIZER(117) on
both sides.
To Next Page
