8
ASSEMBLY INSTRUCTIONS

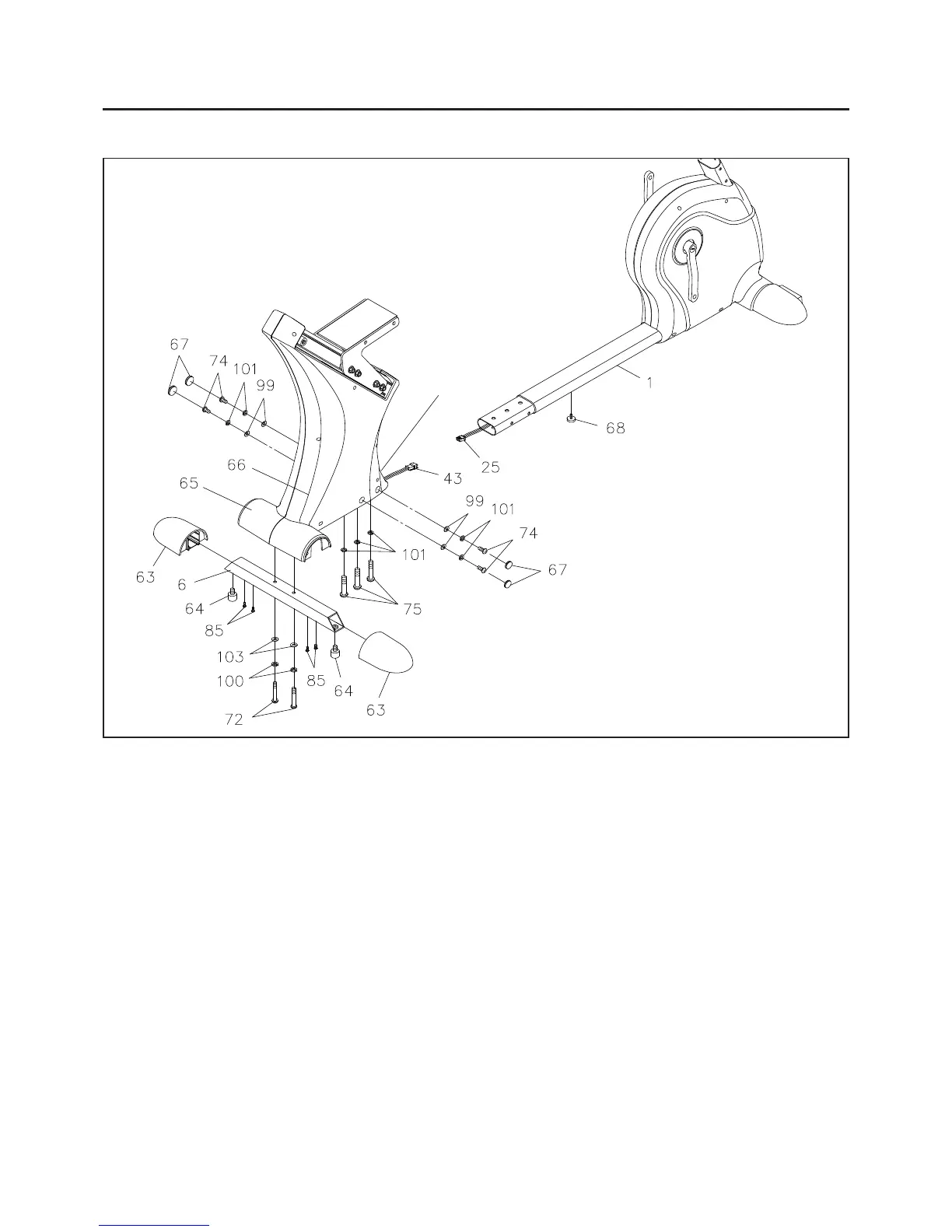

STEP 3
Attach the REAR STABILIZER(6) to the REAR FRAME(5) with BUTTON HEAD BOLTS(M8x1.25x53mm)
(72), LOCK WASHERS(M8)(100), and WASHERS(M8)(103).
STEP 4
Slide the FOOT CAPS(63) onto both ends of the REAR STABILIZER(6) so they fit over the edges of the
LEFT and RIGHT REAR COVERS(65, 66) and secure with ROUND HEAD SCREWS(M4x0.7x15mm)(85).
Screw the FOOT STANDS(64) all the way up into the REAR STABILIZER(6) on both sides.
STEP 5
Screw the STAND(68) all the way up into the bottom of the FRONT FRAME(1). Connect the PULSE
EXTENSION WIRE(43) to the CONTROL WIRE(25). Insert the FRONT FRAME(1) into the REAR FRAME(5)
and secure with BUTTON HEAD BOLTS(M10x1.5x20mm)(74), BUTTON HEAD BOLTS(M10x1.5x53mm)
(75), ARC WASHERS(M10)(99), and LOCK WASHERS(M10)(101). Press the COVER PLUGS(67) into
the holes in the LEFT and RIGHT REAR COVERS(65, 66).
NOTE: See page 13 for detailed leveling instructions to prevent rocking.
Rear Frame(5), is
inside of Rear
Covers(65, 66)
To Next Page
