ASSEMBLY INSTRUCTIONS
7

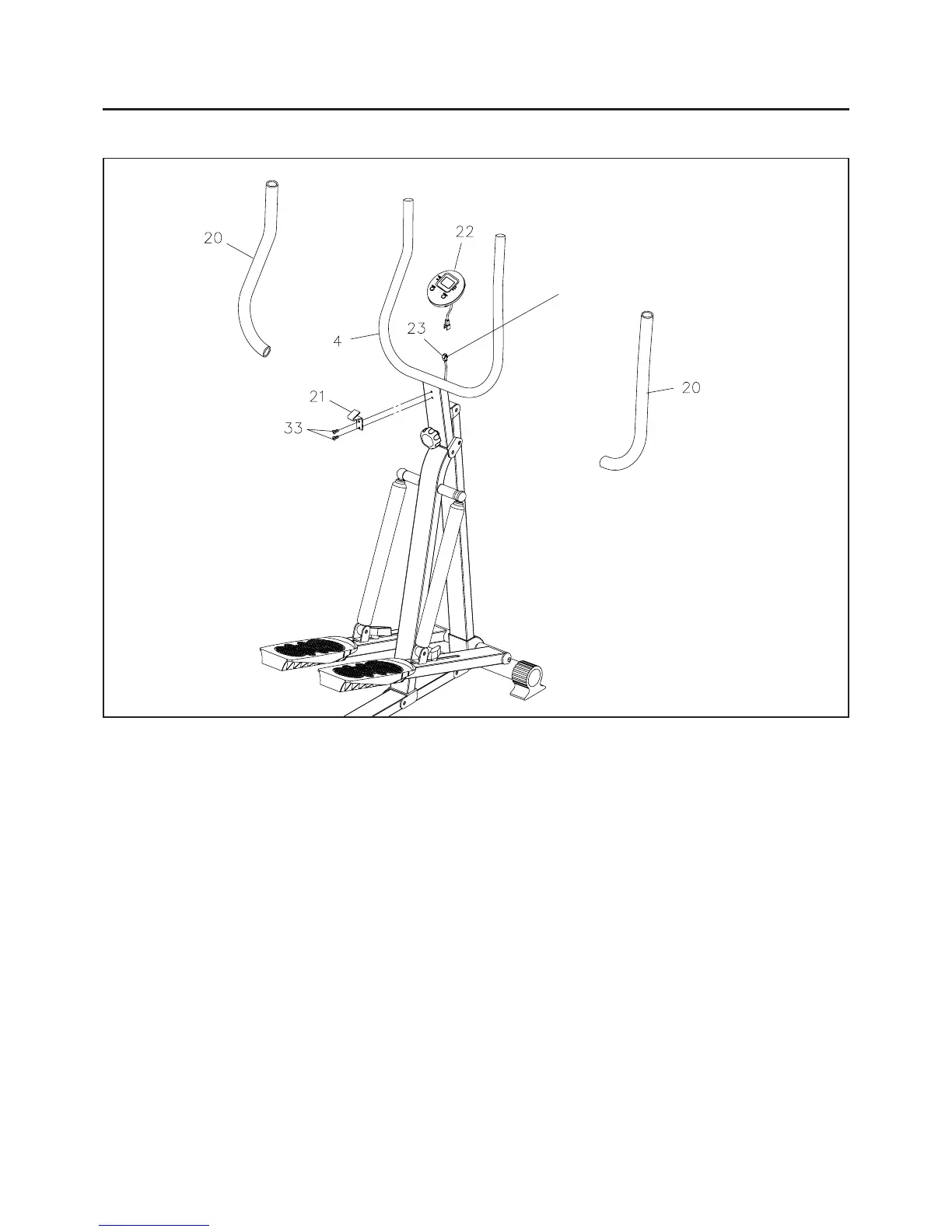

STEP 4
For easier installation of the FOAM GRIPS(20), lubricate the HANDLEBAR(4) with a small amount of
liquid soap. Slide the
FOAM GRIPS(20) onto the HANDLEBAR(4).
STEP 5
Attach the MOUNTING BRACKET(21) onto the HANDLEBAR(4) with ROUND HEAD SCREWS
(M5 x 15mm)(33).
STEP 6
Install an "AA" battery into the METER(22), one battery included. See page 8 for detailed battery installation
instructions. Slide the
METER(22) onto the MOUNTING BRACKET(21). Make sure the SENSOR
WIRE(23) is located at the front of the HANDLEBAR(4), then plug the SENSOR WIRE(23) into the
METER(22).
Make sure the SENSOR WIRE(23)
is located at the front of the
HANDLEBAR(4).
