Standard Pump SP-PP Series - Page 4

Standard Pump Operating Instructions and Parts Manual (OIPM-IND-1019)
4

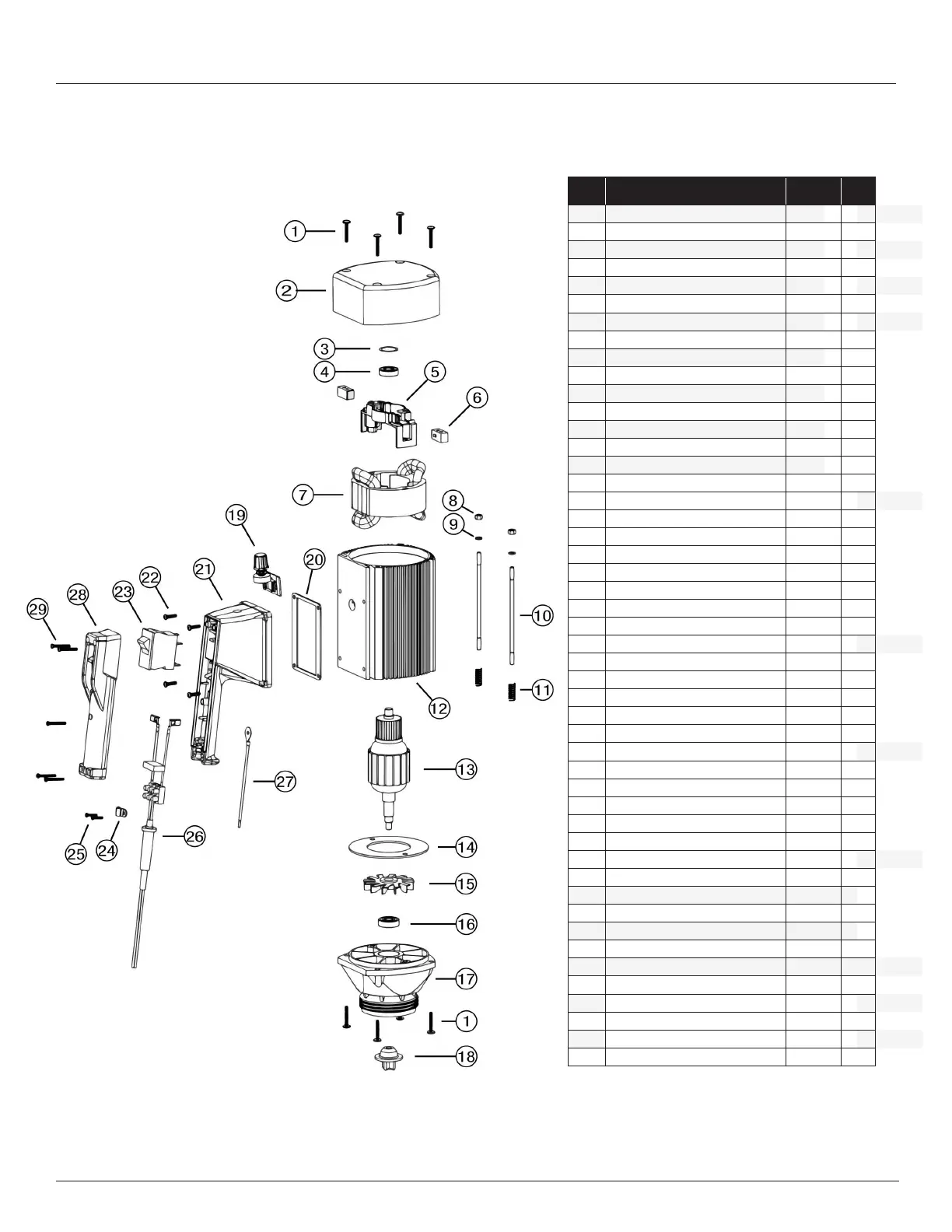

SP-280P Series Spare Parts List
Ref # Description P/N Qty
1
Screw, Motor Cover/Lower Housing
8130P 8
2
Motor Cover
8000 1
3
Wave Washer
8125 1
4
Bearing, Upper
8331 1
5
Brush Holder
8508 1
6
Carbon Brushes, 110/220V
8509* 2
7
Stator
1
110V
8503
220V
8702
8
Hexagon Nut
8448 2
9
Lock Washer
8071 2
10
Rod Connector
8506 2
11 Pressure Spring 8507 2
12 Motor Housing 8510P 1
13 Armature 1
110V
8502
220V
8701
14
Guide Disc
8504 1
15
Fan
8512 1
16
Bearing, Lower
8126 1
17
Lower Housing
8100 1
18
Motor Coupling
8333* 1
19
Speed Potentiometer
1
110V
9803
220V
9804
20
Gasket
1
110V
8167
220V
8167LVR
21
Switch Housing
1
Fixed Speed
8001
Variable Speed
8010
22
Screw, Switch Housing
4
110V
8131
220V
8131LVR
23
Overload Switch
1
110V
8611
220V (w/ Low Voltage Release)
8704LVR
220V (w/o Low Voltage Release)
8704
24
Cable Clamp
8001-1 1
25
Screw, Cable Clamp
8001-2 2
26
Power Cord
1
110V
8360-KIT
220V
8705-KIT
27
Earthing Lead
8183 1
28
Switch Cover
8002 1
29
Screw, Switch Cover
8221 5
N/A Repair Kit* (Includes Items 6 & 18) 1
110V - 220V
9055
