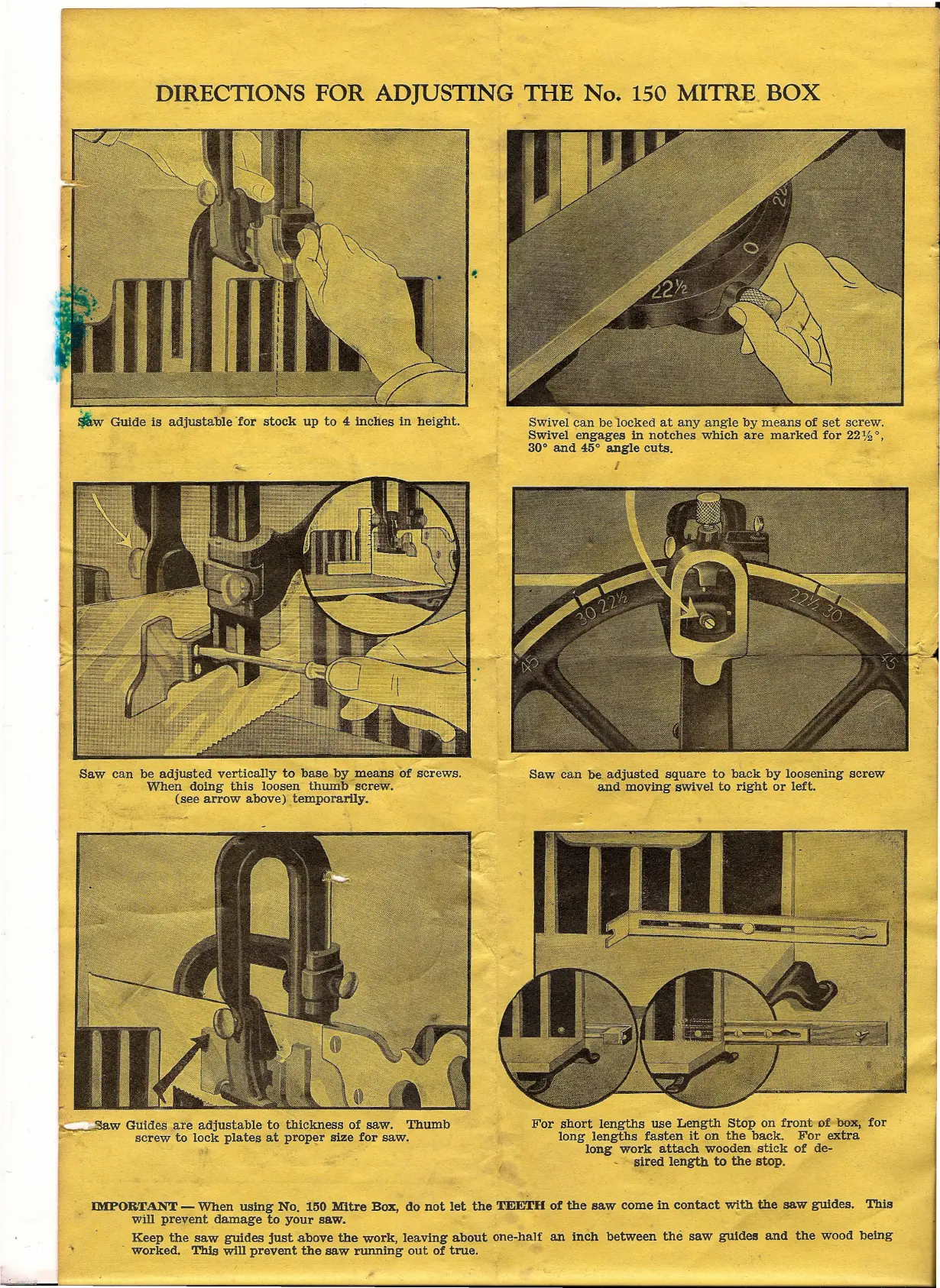

DIRECTIONS FOR ADJUSTING THE No. 150 MITRE BOX
__w Guideis adjustable -for stock up to 4 inches in height.
Saw can be adjusted vertically to base by means of screws.
When doing this loosen thumb"screw.
(see arrow above)temporarily.
~w Guidesare adjustable to thickness of saw. Thumb
screw to lock plates at prop~r size for saw.
Swivelcan belocked at any angle by means of set screw.
Swivel engages in notches which are marked for
22lh °,
30° and 45° angle cuts.
I
Saw can be adjusted square to back by looseningscrew
and movingswivelto right or left.
For short lengths use Length stop on front of box, for
long lengths fasten it on the back. For extra
long work attach wooden stick of de-
sired length to the stop.
IMPORTANT -
When using No. 150Mitre Box, do not let the
TEETH
of the saw comein contact with the saw guides. This
will prevent damage to your saw.
Keep the saw guides just above the work, leaving about one-half an inch between the saw guldes and the wood being
worked. This willprevent the saw running out of true.
