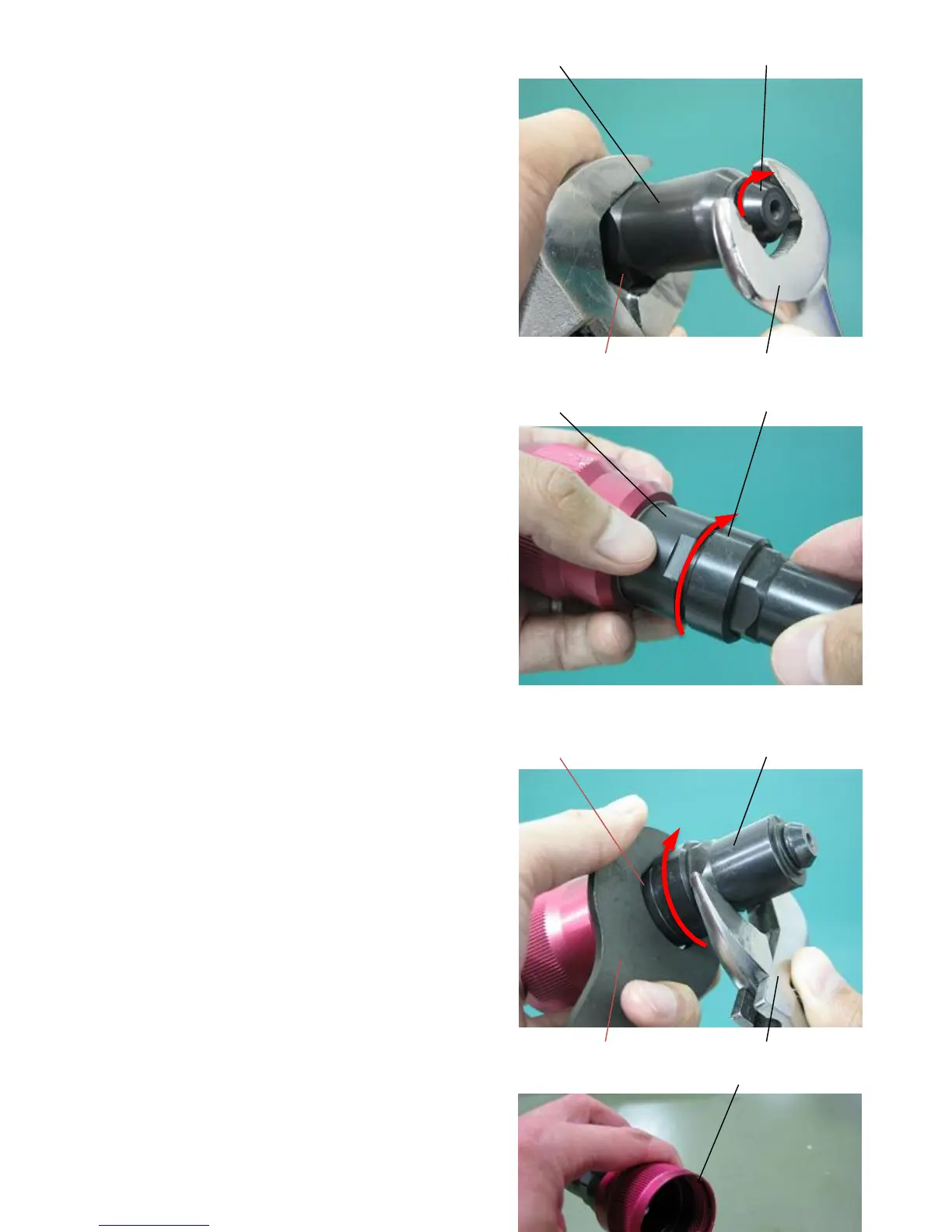

Tighten up the SA Nosepiece A type securely
with spanners (see adjacent picture)
Width across flats: 14mm and 23mm
Insert the SA Nosepiece B type on to SA the
Nose Housing (TP143-643) and screw on by
hand.
Tighten up the SA Nosepiece B type securely
by using the Screw wrench provided in the kit
box and another spanner (see adjacent
picture).
Width across flats: 27mm and 23mm
Apply grease to the inside of Nose Housing Nut
(see adjacent picture).
SA Nosepiece A type
SA Nose Housing(TP143-594)
Spanner 14mm
Spanner 23mm
SA Nosepiece B type
SA Nose Housing(TP143-643)
SA Nosepiece B type
SA Nose Housing(TP143-643)
Spanner 23mm
Spanner 27mm
Nose Hosuing Nut
