UNPACKING & ASSEMBLY
Unpacking
Note: Carefully unpack your chainsaw. Dispose of all packing
material in an environmentally responsible manner.
Remove from plastic bag.
Note: Plastic bags can be a danger to young children, dispose of
immediately. Always dispose of packaging in a responsible manner.
Your chainsaw is factory assembled. Before operating your
chainsaw you need to understand the following parts:
On/Stop Switch
The ON/STOP SWITCH is used to stop the engine.
Throttle Trigger
The THROTTLE TRIGGER controls engine speed.
Throttle Lock-Off Button
The THROTTLE LOCK-OFF BUTTON must be pressed before you
can squeeze the throttle trigger. This feature prevents you from
accidentally squeezing the trigger.
Choke Lever
The choke and fast idle are set by pulling the CHOKE LEVER out
to the full extent for cold starting or after refuelling. The choke
provides additional fuel to the engine during cold starting.
Primer Bulb
The PRIMER BULB circulates fuel to the carburettor to provide
quicker starting.
Chain Brake
The chain brake is a device designed to stop the chain if
kickback occurs. The chain brake activates automatically in
the event of kickback. The chain brake activates manually if
the front hand guard is pushed forward. The chain brake is
disengaged by pulling the front hand guard back toward the
front handle as far as possible.
Chain Tension
It is normal for a new chain to stretch during the first 5 minutes
of operation.
Ensure the engine is always SWITCH OFF before fitting or
adjusting the chain. You should check your chain tension
frequently. See CHAIN TENSION on page 14.

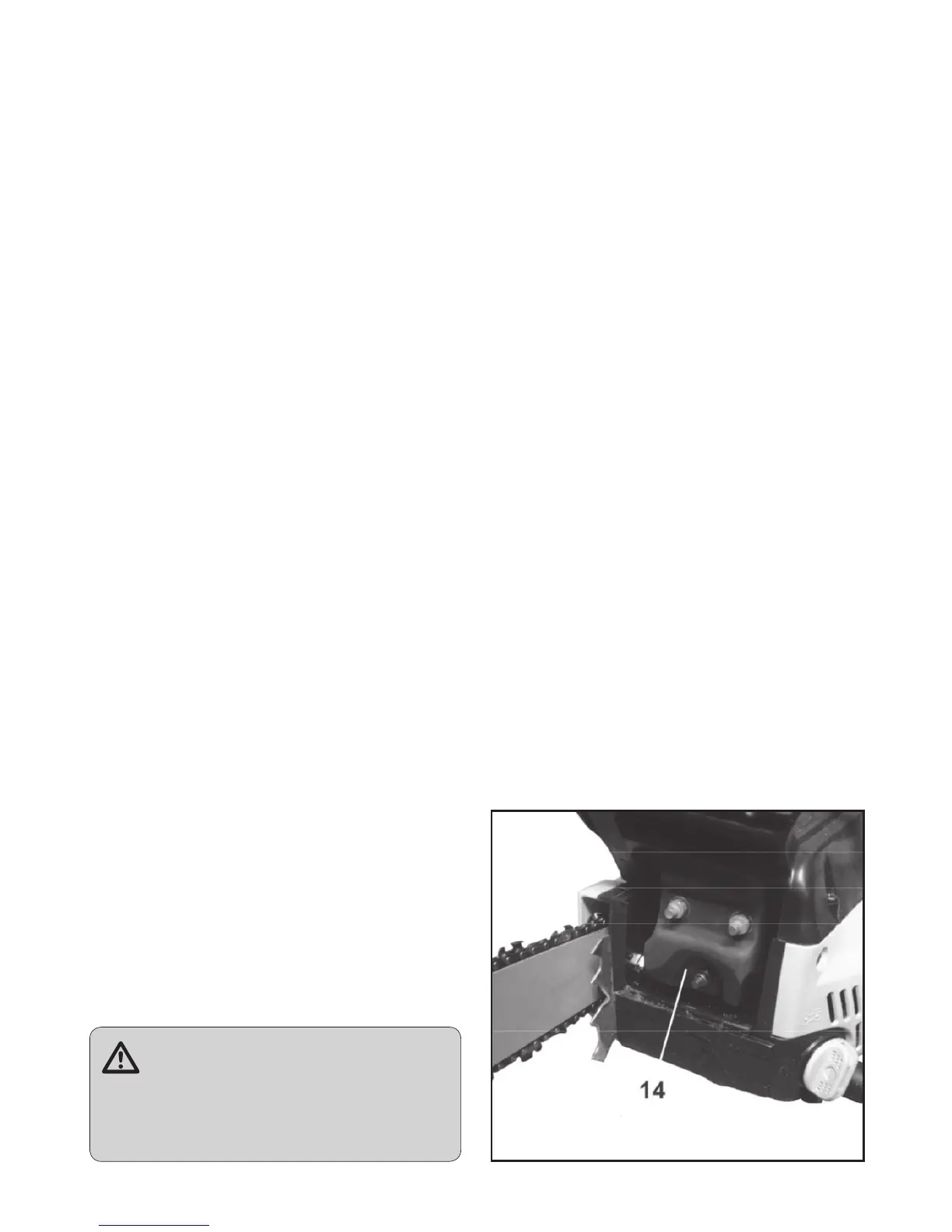

PIC. 6
