Stanley SGC-8000N User Manual

8

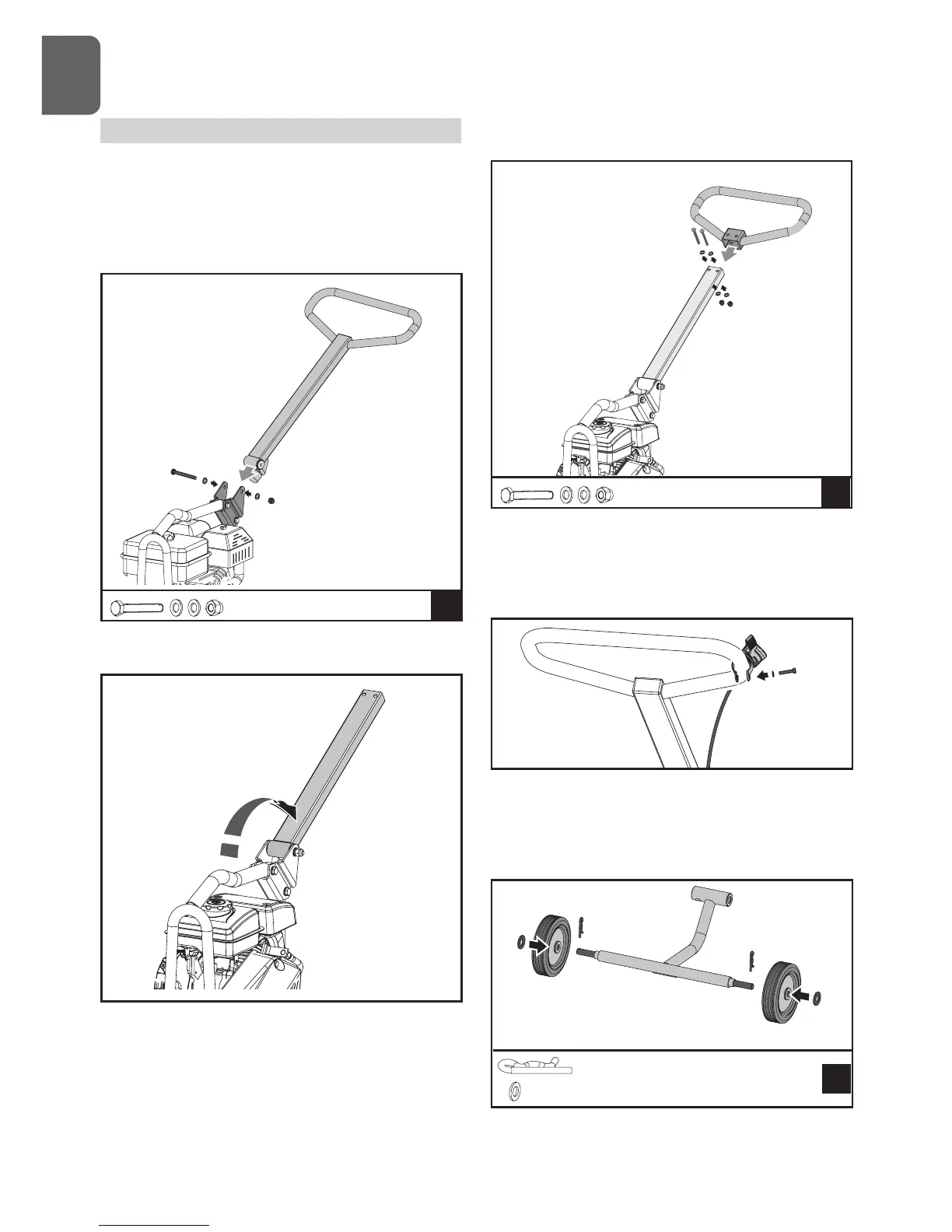

ASSEMBLY
Following the assembly directions below, you
will assemble the plate compactor in a few
minutes.
Handle
Mount the handle to the chassis with the M10X95
bolt, washers and nut.
1. Turn over the lower handle.
M8 X 60 X2
B
2. Mount the upper handle to the lower handle with
2 M8X60 bolts, washers and nuts.
Throttle Control
Fix the throttle control to the upper handle as
shown.
Folding Wheels Kit
C
X2
X2
M10 X 95 X 1
A
SGC-8000N
G
B
