Stanley SP1X User Manual

2 • SP1 and SP2
APPLICATIONS
Use as a Laser Torpedo Level:
The SP1, SP1X and SP2 Laser Level is a highly
durable, lightweight aluminum level with a red
beam laser that can be used in a variety of appli-
cations. With its level and circular plumb vials,
this state-of-the-art level projects a highly visible
red dot on almost any surface with up to
±1/4-in
@ 50-ft
(6mm accuracy at 15.3m).
Use as Laser Chalkline:
The Laser Chalkline easily attaches to the
front of the laser level. Using the line
generator, project straight lines on any
surface. Generate level and plumb chalk-
lines using the level and plumb vials.

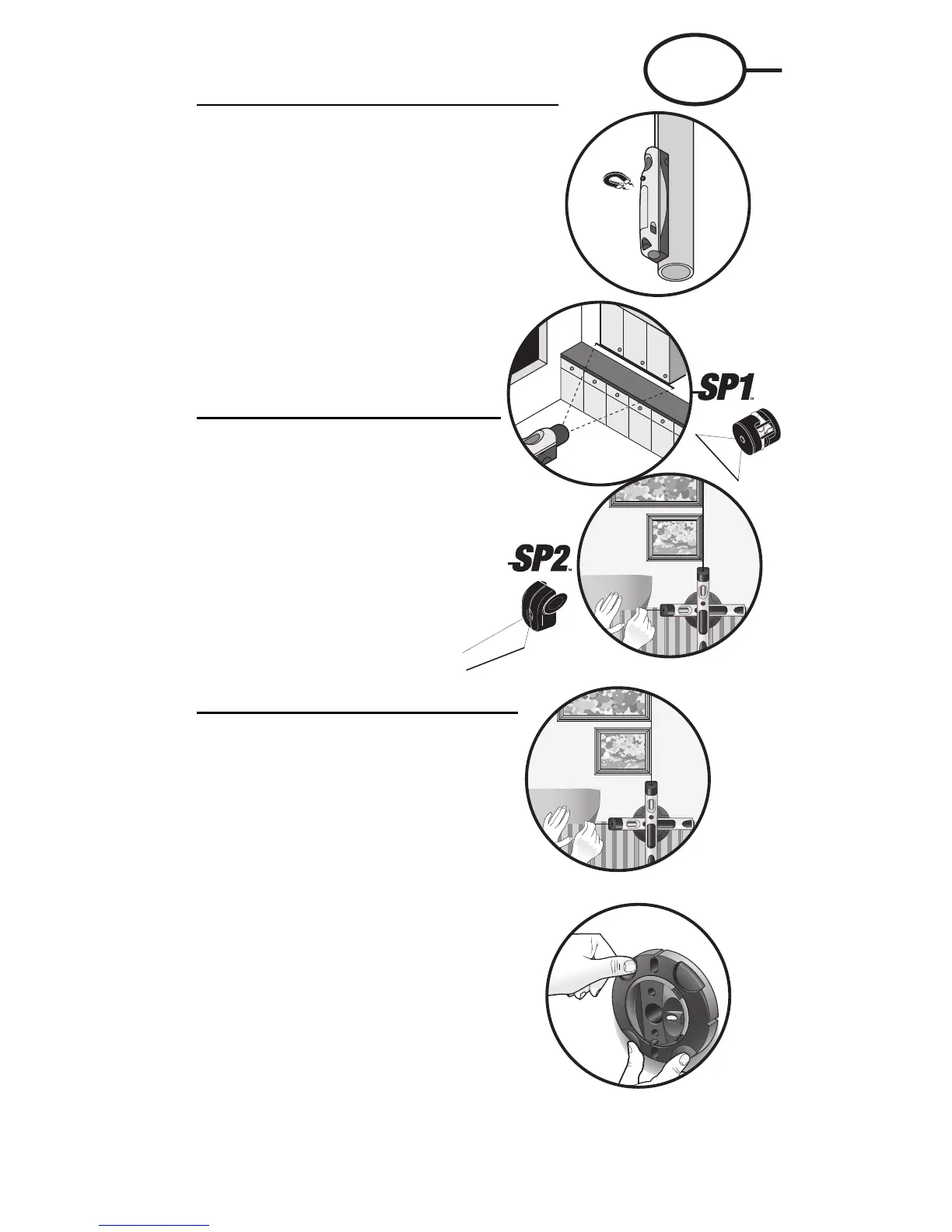

Use as Laser Square –
SP2 Only (on vertical surface)
Wall, Stud & Floor Mount/90º Swivel Mount
allows 90º layout capability. Place the
mount on the surface. Press the two but-
tons to push the retractable pins into any
soft wood or wall-board surface. Secure
the laser level to swivel mount using the
alignment pin on the mount.
Use extra caution when handling the
mount. Retractable pins are very sharp.
Push the buttons only when you place
the mount on the surface of a soft wood
or wall-board.
The laser level can be rotated 360º (with 90º ref-
erences) on the wall/stud mount.
Use level vial (1g) to mark level line. Rotate 90º
so base level vial (3a) is within line. Mark laser
chalkline. You now have a 90º square from the
level line.
To use as laser square on floor, mount laser on
wall/floor mount. Align first chalkline using
arrow marker " " on swivel base. Turn swivel
base 90º using reference mark on fixed base.
You now have 90º laser square.
