1 - Locate the electrical outlet that is close to the
device you want to control.
2 - Set the ON / TIMER switch located next
to the dial to the TIMER position. Plug the
timer into the outlet.
3 - Set the current time - turning clockwise,
align the Arrowhead (See diagram) on TOP
of the timer to the
present time (lines
between numbers are
in increments of 30 minutes).
There is no need to touch the
pins to set current time. NOTE:
Dial is based on AM/PM.
4 - Determine desired start time and push “DOWN”
all pins until desired OFF time. When pins are pushed
down the timer will be on and working. When pins are
in the UP position timer is OFF (note: “pins” are grey
slices around the dial.) For example: to turn the timer
ON at 5pm and OFF at 10pm, push down all the pins
from 5pm to 10pm.
ON
TIMER
ENGLISH
Timer pins are factory preset in the
“pushed down” (‘ON’) position.
Pull pins up for timers ‘OFF’ intervals.

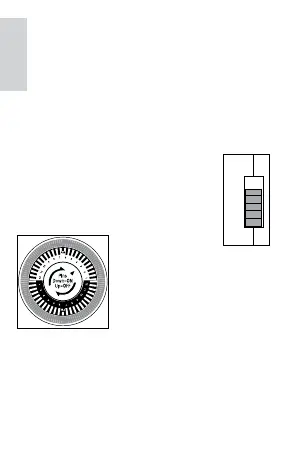

OPERATING INSTRUCTIONS
See diagram on the next page
To Next Page
