MODEL 600 SIENA
600 MANUAL TO POWER SWIVEL CONVERSION KIT
4
LEFT RIGHT

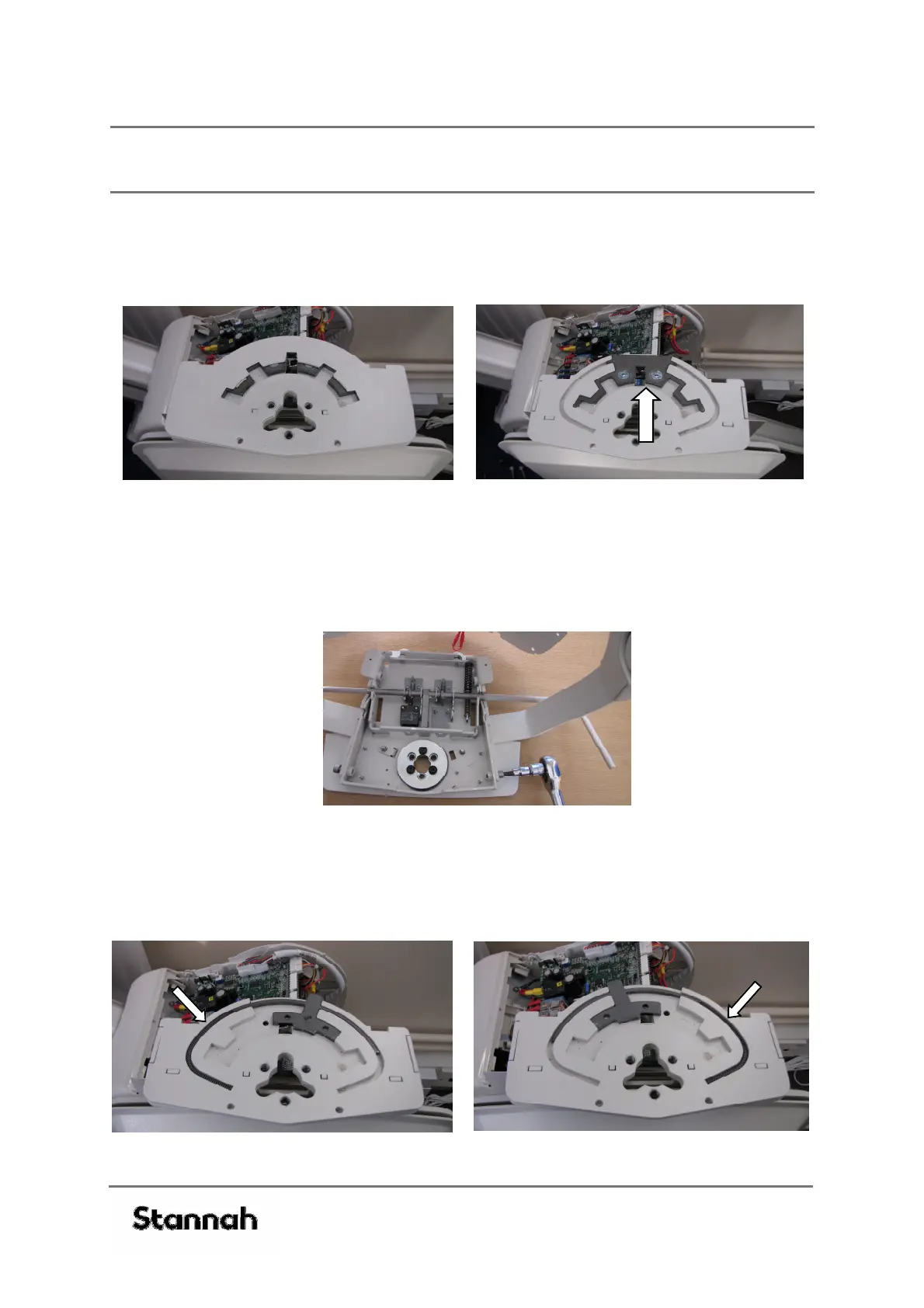

21. Remove swivel locking plate cover (Fig 3)
22. Remove 2X fixings securing swivel locking plate and remove swivel locking plate
(Fig 4).
23. Remove swivel lever assembly.
24. Remove 4 X fixings securing chair frame to seat chassis. Fig 5 Remove seat pivot
spring assembly if applicable.
25. Remove seat chassis and discard.
REASSEMBLY
26. Fit downside swivel emergency release mechanism and spring for LEFT or RIGHT
hand installations as shown. Fig 6
Fig 3
Fig 4
Fig 5
Fig 6
SPRING
SPRING
