PARTS AND MATERIALS
The following parts are included with the STAR TRAC INSTINCT INNER THIGH / OUTER THIGH:
T
OOLS
R
EQUIRED
Most STAR TRAC INSTINCT machines can be assembled using the following tools:
Your INSTINCT INNER THIGH / OUTER THIGH includes a hex key set and combination open-end wrench.
SITING REQUIREMENTS
Your INSTINCT INNER THIGH / OUTER THIGH requires approximately 32 square feet of floor space to ensure safe opera-
tion of the unit.
UNPACKING
Your INSTINCT INNER THIGH / OUTER THIGH is shipped in one or more shipping cartons. Each carton will generally con-
tain one subassembly of the entire unit. To unpack:
■
Remove the shipping straps from the outside of each shipping carton.
■
Open the top of each carton and fold back all four flaps.
W
EIGHT
B
ELT
I
NSPECTION
R
EQUIREMENTS
WARNING: REPLACE WORN WEIGHT BELTS IMMEDIATELY. FAILURE TO COMPLY CAN RESULT IN HAZ-
ARDOUS CONDITIONS FOR USERS OR OTHER BYSTANDERS.

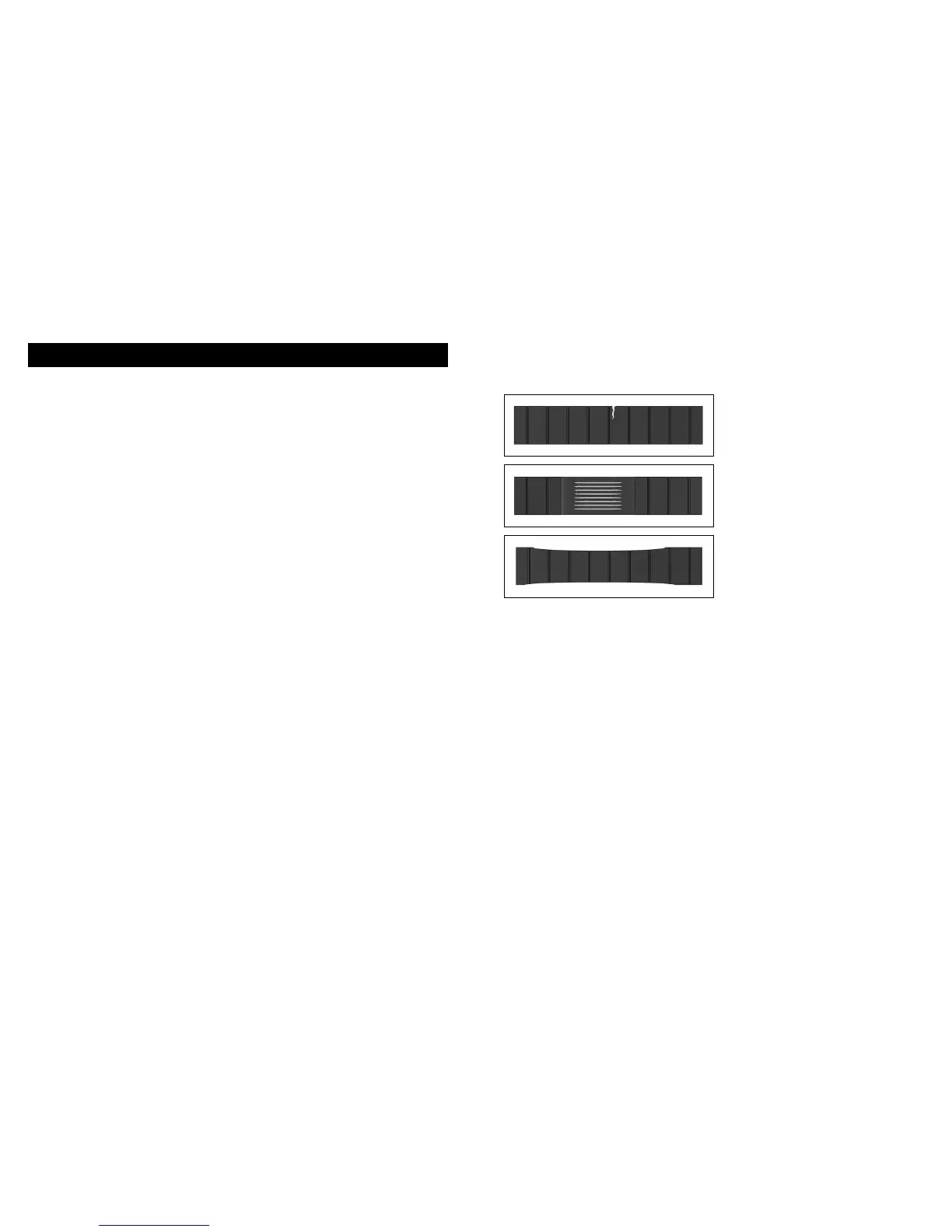

Inspect all weight belts for evidence of excessive wear or other damage. Give particular attention to the following conditions:
■
Torn or cracked belt
■
Exposed belt cords
■
Worn edges
STAR TRAC INSTINCT INNER THIGH / OUTER THIGH O
WNER
’
S
M
ANUAL
156 STAR TRAC INSTINCT INNER THIGH / OUTER THIGH O
WNER
’
S
M
ANUAL
A
SSEMBLY AND
S
ETUP
1 Frame, Weight Stack 1
2 Frame, Main 1
3 Frame, Center 1
4 Crossbeam, Right 1
5 Crossbeam, Left 1
6 Pedal, Right 1
7 Pedal, Left 1
8 Bracket, Thigh Cushion 2
9 Bracket, Pedal 1
10 Flywheel, Range-of-Motion 1
11 Lever, Flywheel 1
12 Cover, Frame 1
13 Cover, Flywheel 1
15 Pulley/Clamp 1
16 Link, Pedal 1
17 Plate, Top, Weight Stack 1
18 Weight, 5lb 3
19 Weight, 10lb 6
23 Selector Pin 1
25 Clip, Shaft 2
31 Washer 2
32 Retainer, Belt 4
37 Cushion, Seat 1
38 Cushion, Back 1
39 Cushion, Thigh 2
40 Cushion, Thigh 2
45 Mat 1
47 Shaft, Pedal 2
48 Guide Post, Weight Stack 2
50 Spacer, Shaft 1
51 Washer, 32M 1
52 Cover, Front 1
53 Belt 1
54 Belt 1
55 Shroud, Lower, Front 1
56 Shroud, Lower, Rear 1
57 Shroud, Upper 2
61 Support, Weight Stack 2
62 Cap, Rubber 2
63 Cap, Rubber 2
66 Nut, Tapped Hole 6
67 Screw, Button Head Socket Cap, 10X130M 6
68 Screw, Button Head Socket Cap, 10X80M 2
69 Screw, Button Head Socket Cap, 10X75M 8
72 Screw, Button Head Socket Cap, 10X30M 2
73 Screw, Button Head Socket Cap, 10X35M 10
74 Screw, Button Head Socket Cap, 10X45M 2
75 Screw, Button Head Socket Cap, 10X25M 4
76 Screw, Retaining 4
79 Screw, Button Head Socket Cap, 8X20M 18
82 Lock Nut, Nylon Insert, 10M 16
85 Washer, 11M 46
86 Washer, 9M 18
87 Washer, Spring, 8M 6
88 Washer, Spring, 10M 4
■
Metric Hex Key Wrenches - 2.5mm, 5mm, 6mm, 8mm, 10mm
■
Metric Open-End Wrenches - 10mm, 15mm, 17mm
■
Metric Ratchet Socket Wrench Set (including 17mm socket)
■
Torque Wrench
■
Channel Lock Pliers
■
Vice Grip Pliers
■
Rubber Mallet
■
Phillips Head Screwdriver - #2
