Star Trac Instinct - Assembly and Setup

PARTS AND MATERIALS
The following parts are included with the STAR TRAC INSTINCT GLUTE PRESS:
T OOLS R EQUIRED
Most STAR TRAC INSTINCT machines can be assembled using the following tools:
Your INSTINCT GLUTE PRESS includes a hex key set and combination open-end wrench.
SITING REQUIREMENTS
Your INSTINCT GLUTE PRESS requires approximately 32 square feet of floor space to ensure safe operation of the unit.
UNPACKING
Your INSTINCT GLUTE PRESS is shipped in one or more shipping cartons. Each carton will generally contain one subassem-
bly of the entire unit. To unpack:
■
Remove the shipping straps from the outside of each shipping carton.
■
Open the top of each carton and fold back all four flaps.
■
Remove the packing materials, foam inserts, and ALL parts from each shipping carton. Keep the contents of each carton in
a separate area to facilitate assembly. To ensure personal safety during assembly, place all packing materials outside the
assembly area.
■
Verify that all parts listed above are included in your shipment.
Take time now to enter your INSTINCT GLUTE PRESS serial number in the space below. If parts are missing, or if you have
any operational questions, please call Star Trac’s Service department at (800) 503-1221; have your serial number ready.
Serial No. __________________________________________
STAR TRAC INSTINCT GLUTE PRESS O WNER ’ S M ANUAL 156 STAR TRAC INSTINCT GLUTE PRESS O WNER ’ S M ANUAL
A SSEMBLY AND S ETUP
1 Frame, Weight Stack 1
2 Frame, Main 1
3 Crossbeam, Upper 1
4 Crossbeam, Lower 1
5 Handgrip, Left Side 1
6 Handgrip, Right Side 1
14 Shroud, Lower, Front 1
15 Shroud, Lower, Rear 1
16 Cushion, Chest 1
17 Retainer, Belt 2
19 Guide Post, Weight Stack 2
20 Belt 1
21 Shroud, Upper 2
22 Plate, Top, Weight Stack 1
24 Weight, 5lb 3
25 Weight, 10lb 3
26 Weight, 15lb 3
28 Cap, Rubber 2
33 Support, Weight Stack 2
27 Selector Pin 1
37 Nut, Tapped Hole 6
39 Screw, Button Head Socket Cap, 8X20M 6
41 Screw, Retaining 2
42 Screw, Button Head Socket Cap, 10X30M 2
44 Screw, Button Head Socket Cap, 10X80M 2
46 Screw, Button Head Socket Cap, 10X130M 10
48 Lock Nut, Nylon Insert, 10M 10
49 Washer, 11M 25
50 Washer, 9M 6
■
Metric Hex Key Wrenches - 2.5mm, 5mm, 6mm, 8mm,
10mm
■
Metric Open-End Wrenches - 10mm, 15mm, 17mm
■
Metric Ratchet Socket Wrench Set (including 17mm sock-
et)
■
Torque Wrench
■
Channel Lock Pliers
■
Vice Grip Pliers
■
Rubber Mallet
■
Phillips Head Screwdriver - #2

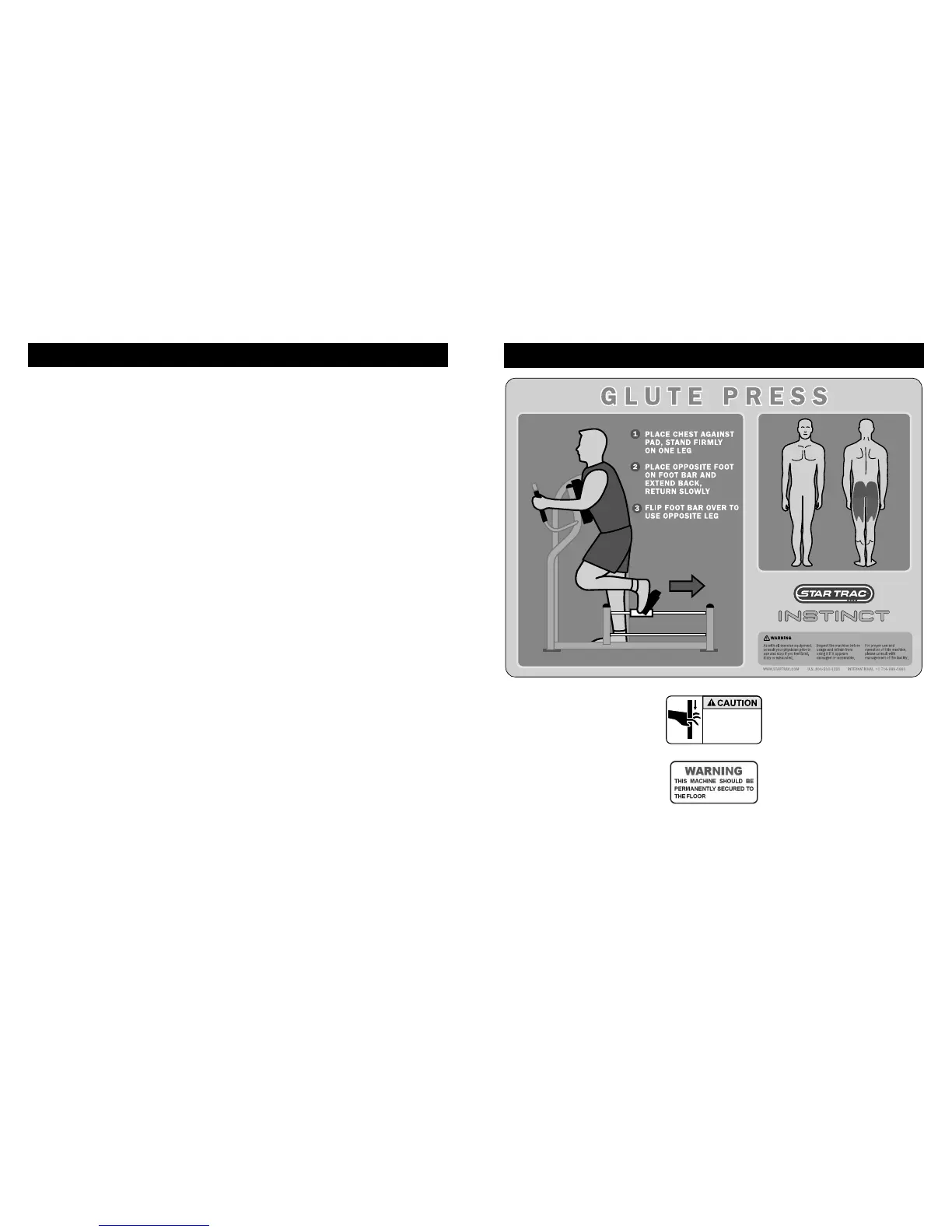

L ABELS AND P LACARDS
Pinch Points.
Keep hands away
from moving parts.
