ASSEMBLY
5

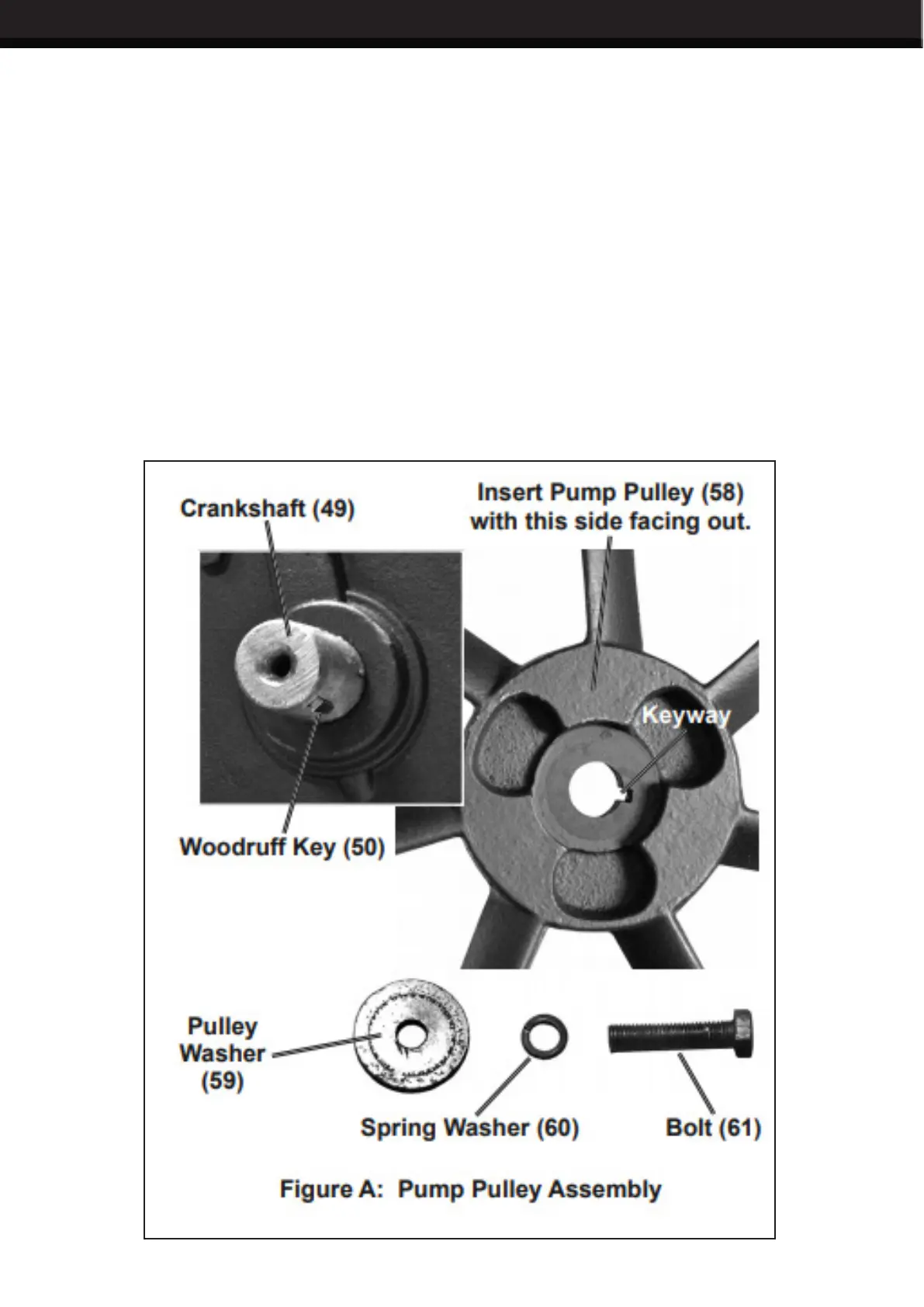

1. Place a small amount of grease in the slot at the tapered end of the Crankshaft (49) and insert the
Woodruff Key (50) into the slot.
2. Make sure that the center hole and the keyway on the Pump Pulley (58) are clean and free of burrs and
rough edges.
3. Apply a thin layer of grease to the hole and keyway. With the indented side of the Pulley center facing out,
align the keyway with the Woodruff Key and slide the Pump Pulley over the Crankshaft.
4. Slide the Pulley Washer (59) and Spring Washer (60) onto the Bolt (61) and insert the Bolt through Pump
Pulley and thread counterclockwise into the Crankshaft. Tighten using a wrench (not included).
WARNING! Do not force or hammer the Pump Pulley onto the Crankshaft.
NOTE: The Bolt has a left-hand thread. To tighten, turn bolt counterclockwise.
