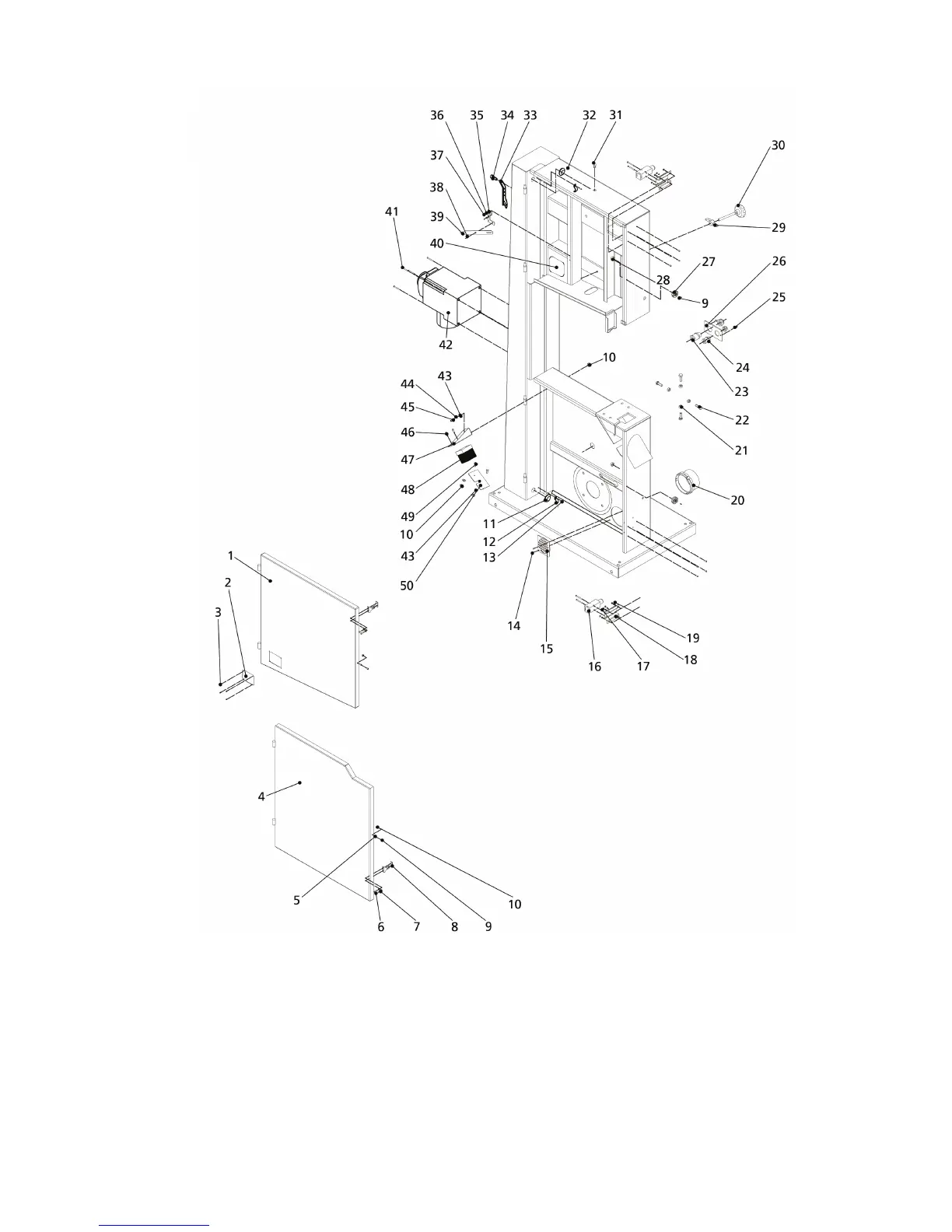

STARTRITE 352E - Diagrams & Components - 502 E

10. Diagrams & Components-502E
Ref No. Description
1 Upper wheel cover
2 Clear window
3 Rivet 3x7
4 Lower wheel cover
5 Bushing
6 Pan head screw M4X12
7 Flat washer 4
8 Thread plate
9 Hex. Socket head screw M6X20
10 Hex. Nut M6
11 Rubber bushing
12 Clamp plate
13 Screw M5X10
14 Tapping screw 3.5X13
15 Dust bar screen
16 Safety switch
17 Hex. Nut M4
18 Switch plate
19 Spring washer 4
20 Dust port
21 Hex. Nut M8
22 Screw M8X25
23 Strain relief M20
24 Strain relief M16
25 Pan head screw M6X8
26 Cable plate
27 Star handle
28 Locknut M6
29 Lock handle
30 Adjusting handle
31 Ring
32 Frame
33 Plastic pusher
34 Screw M6X25
35 Indicator plate
36 Flat washer 5
37 Pan head screw M5X6
38 Screw
39 Indicator
40 Tension label
41 Screw M4X50
42 Switch
43 Flat washer 6
44 Spring washer 6
45 Hex. Socket head screw M6X12
46 Tapping screw 4.8x16
47 Brush holder
