15
45º
250
100
60
8. Operation and Bandsawing Practice

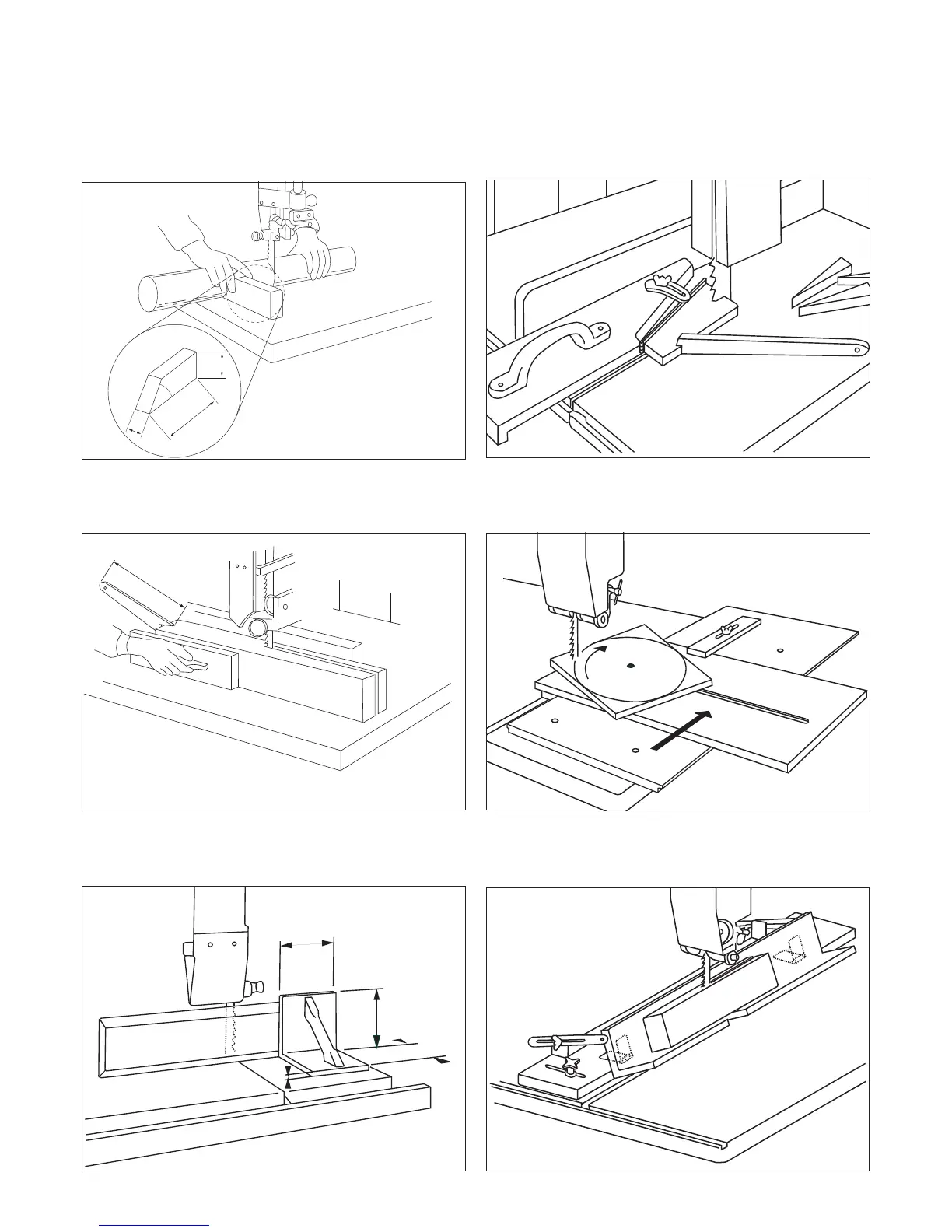

Ex. 2. Always support round pieces with a wedge or vee block. Take extreme
care as there is a danger that if the work is not secured properly the blade
will snatch the work piece, potentially causing it to spin or bounce back at
you.
Ex. 3. Use a side pressure pad for accurate cutting of taller material.
Ex. 4. Chamfered pieces can be cut squarely using an additional support jig
on the opposite side of the work piece to the fence.
Ex. 5. Jig for accurate repetitive wedges.
Ex. 6. By mounting a registration pin on a slide repetitive circles
can easily be achieved.
Ex. 7. Angle cutting jig for accurate repetitive compound angles.
400
180
100
20
120
