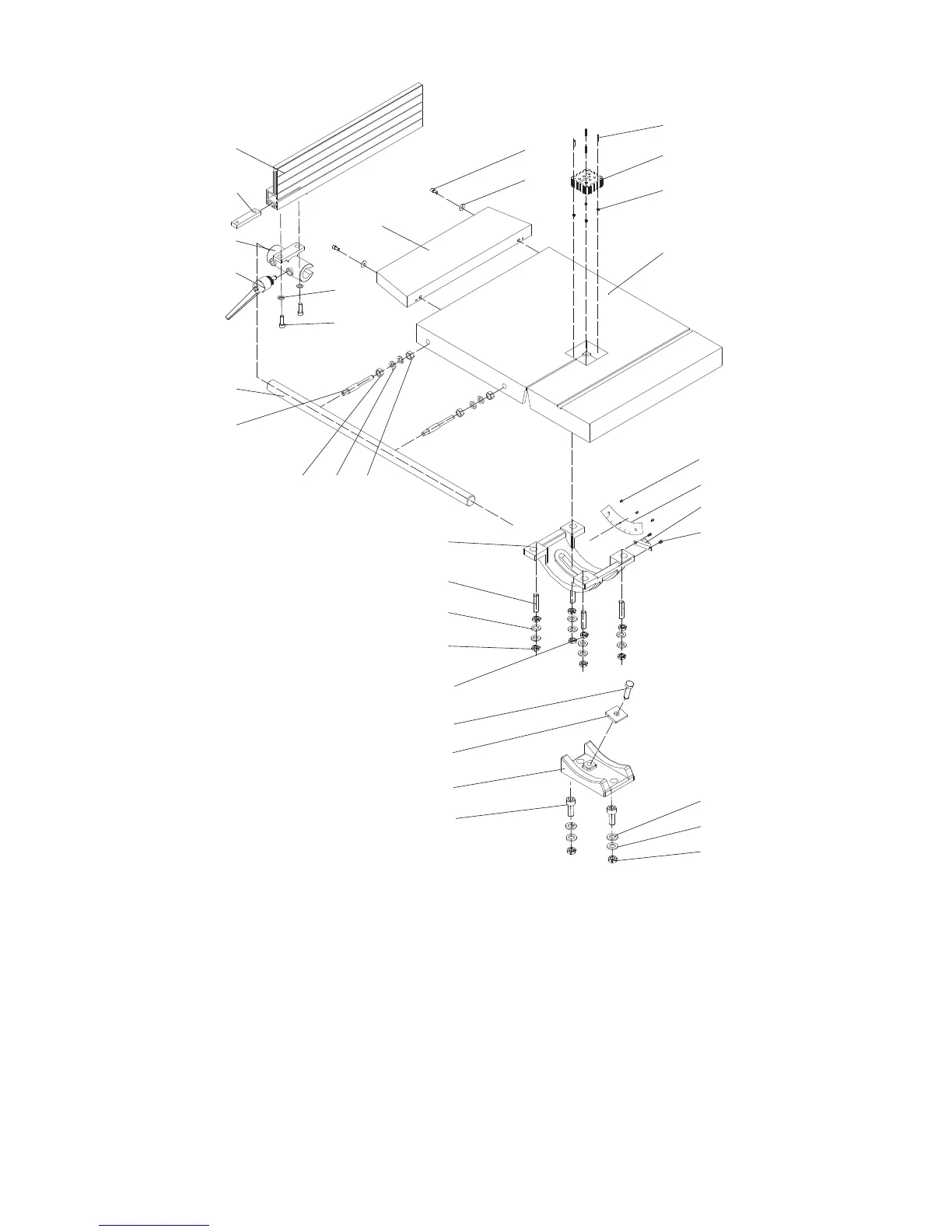

13. Parts Lists and Diagrams - 603/UK3
74
75
76
77
78
79
80
81
8 2 8 3 84
89
90
91
92
93
94
95
96
97
98
99
100
1 01
1 02
1 03
1 06
1 04
1 05
88
87
86
85
1 07
74 Rip fence JXBS1803060001 1
75 Lock plate JXBS2001060001 1
76 Fence bracket JXBS2001060002-001G 1
77 Handle JXBS2201061000-001S 1
78 Screw M8X25GB70Z 2
79 Washer WSH8GB97D1Z 2
80 Fence guide BS6001060001 1
81 Rod JXBS2001060003 2
82 Hex nut JXBS2001060004 2
83 Washer WSH10GB97D1Z 4
84 Hex nut M10GB6170Z 2
85 Slider JXBS2402031002-124L 1
86 Nut M12X60GB77B 4
87 Large washer WSH12GB96Z 8
88 Hex nut M12GB6170Z 4
89 Support JXBS2402031001-124L 1
90 Hex Bolt M12X45GB30Z 1
91 Large pad JXBS2401031007 1
92 Support JXBS2402031001-124L 1
93 Hex Bolt M10X45GB5783Z 2
94 Hex nut M10GB6170Z 2
95 Large washer WSH10GB96Z 2
96 Spring washer WSH10GB93Z 2
97 Nut M3X5GB818Z 2
98 Angle pointer JXBS2402031004 1
99 Angle Signs JXBS2402031005 1
100 Rivet RVT2D5X5GB827C 3
101 Lock nut M5GB889Z 4
102 Table insert BS5001030001-001S 1
103 Nut M5X30GB77B 4
104 Large washer WSH8GB96Z 2
105 Nut M8X16GB70Z 2
106 Table BS6001030001-001G 1
107 Extension table JXBS2402030002-001U 1
No. Description Part Number Quantity No. Description Part Number Quantity
Table Assembly
To Next Page
