ELECTRICAL CONNECTION
Fitting Guidelines
The electric hob is manufactured to work with single-phase alternating current (220V-240V/50Hz.
The connection diagram is also on the cover of the connection box.

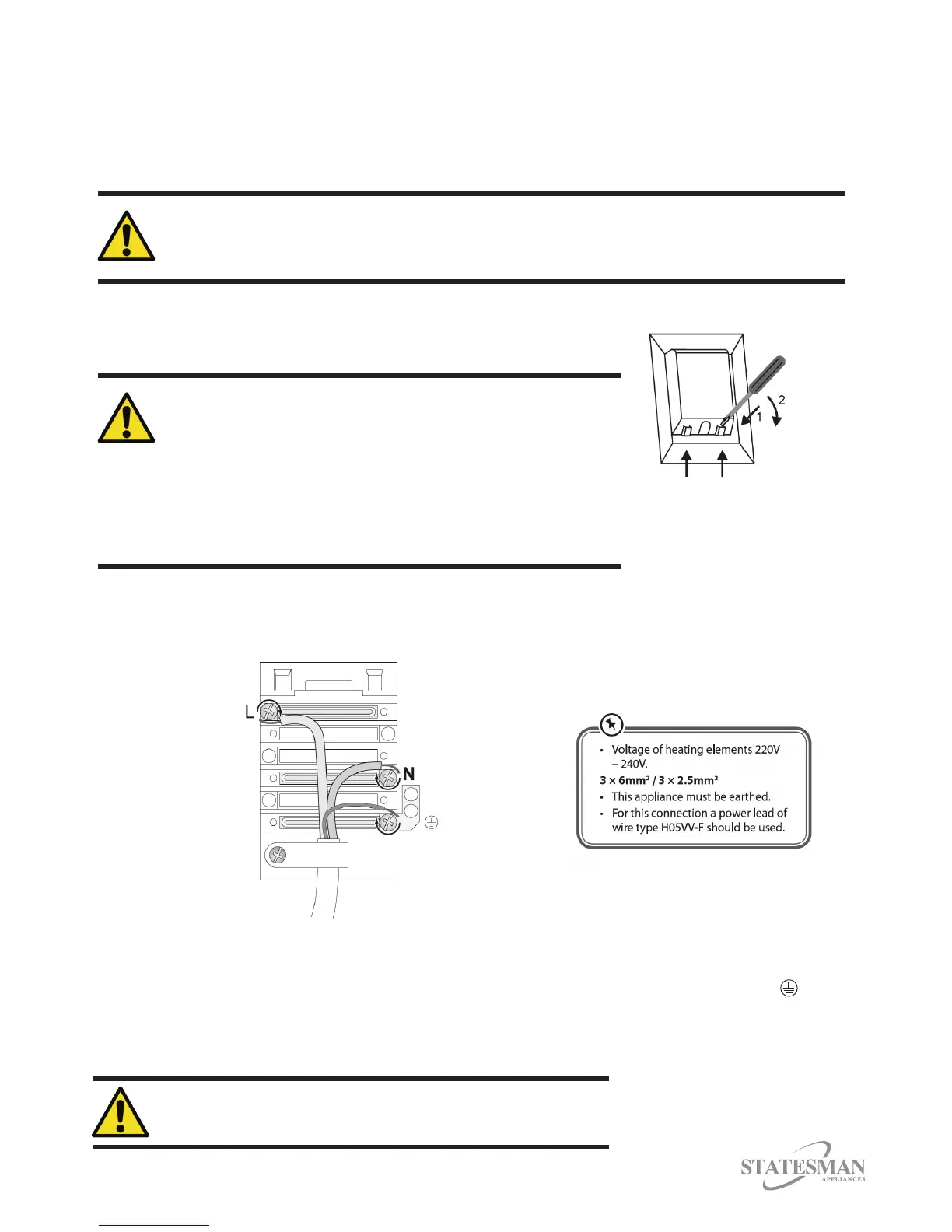

Connecting the Hob to the Mains Power Supply
The connection cable must be secured in the strain-relief clamp.
Wiring Instructions
The earth wire coloured Green/Yellow must be connected to the Earth terminal marked .
The Live wire coloured Brown must be connected to the Live terminal marked L.
The neutral wire coloured Blue must be connected to the terminal marked N.
Always place the wire on the side of the screw which
follows the tightening direction (clockwise).
All electrical work should be carried out by a suitably qualied and authorised
electrician. No alterations or wilful changes in the electricity supply should be
carried out.
The electricity supply for the electric hob must have
an isolation switch which enables the power to be
cut off in case of an emergency and for maintenance.
The distance between the working contacts of the
isolation switch must be at least 3mm.
Before connecting the electric hob to the mains
power supply it is important to read the information
on the data plate and the connection diagram.
