3.4.3 Voltage Output ( Bridge Excitation ),option
04

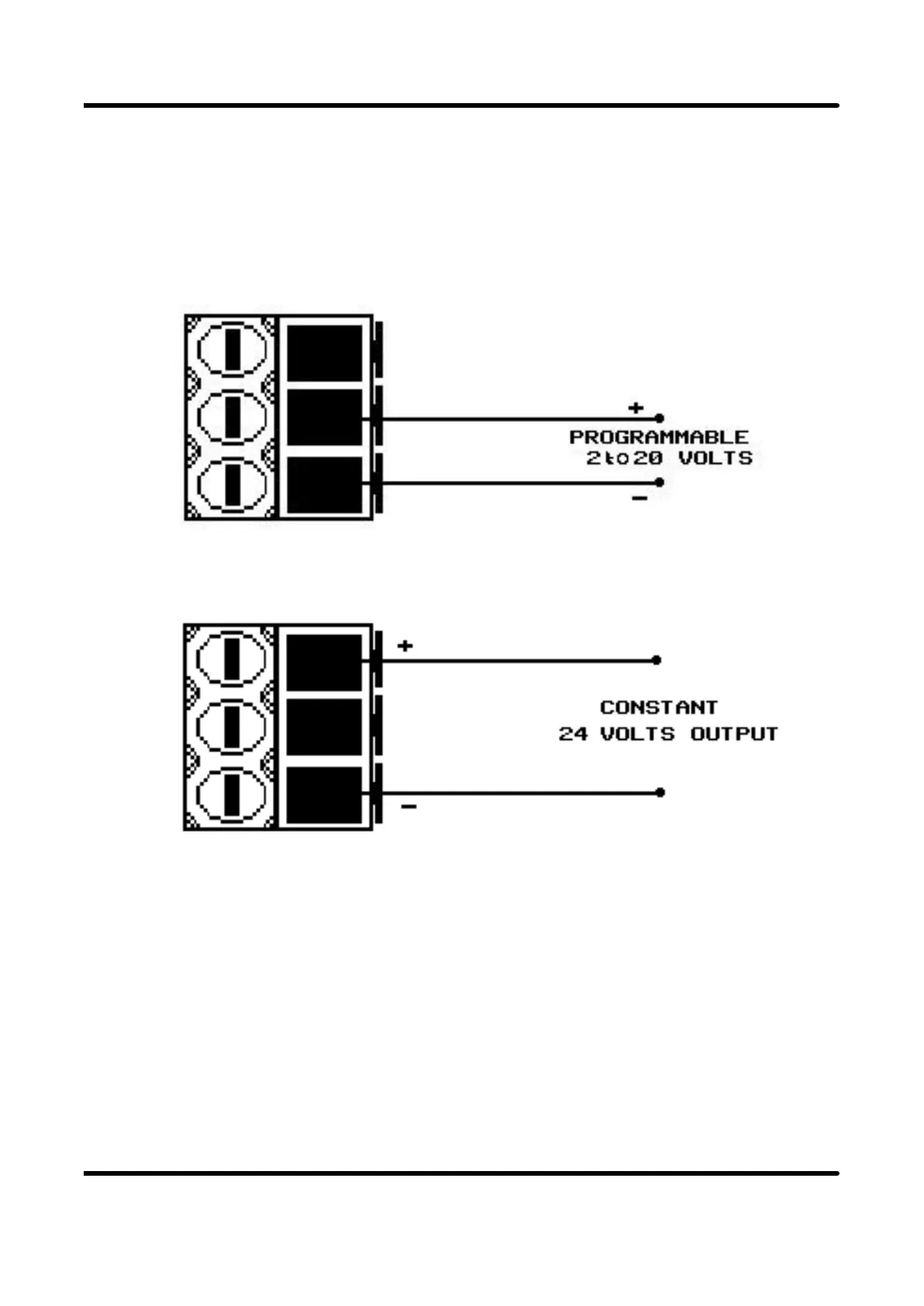

There are two options. Either a programmable 2 to 20 volt output or a fixed 24 volt
output. The connections for both cases are shown below.
INSTALLATION
VOLTAGE OUTPUT
