4.1.1 KEY DEFINITIONS
All programming is done using the
three front panel keys. How these
keys are used to program the
instrument is shown in this tutorial.

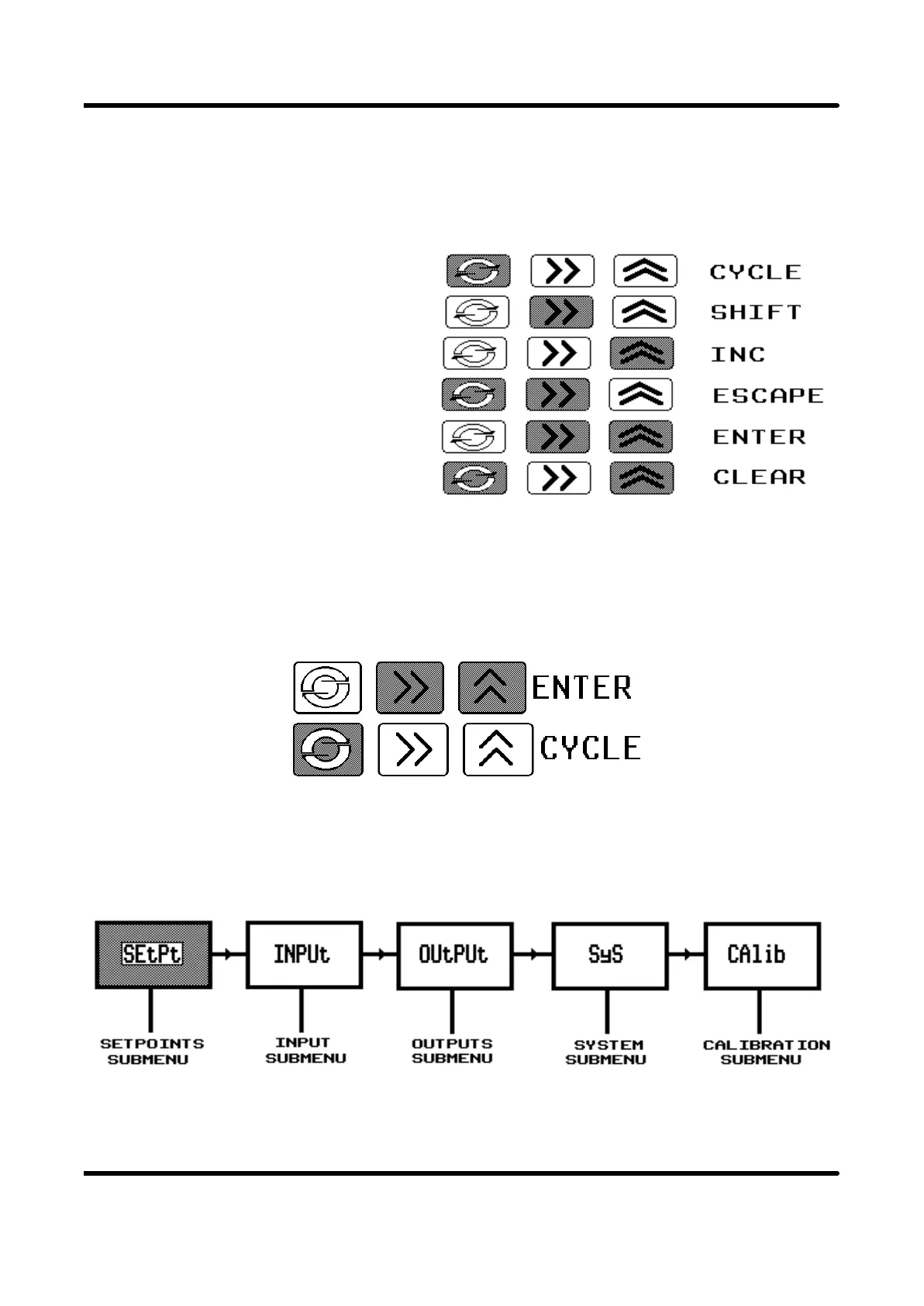

The functions of the keys are
summarised as follows. The black
symbols indicate the keys to press.
Shaded keys indicate that the keys
should pressed simultaneously.
4.1.2 GETTING INTO MENU MODE
The Menu mode is accessed from the Display PV mode by pressing the following
sequence of keys.
The display will now show SETPt. In order to understand what this means, the
following diagram shows where we are within the basic or Root menu structure.
TUTORIAL
Page 28
