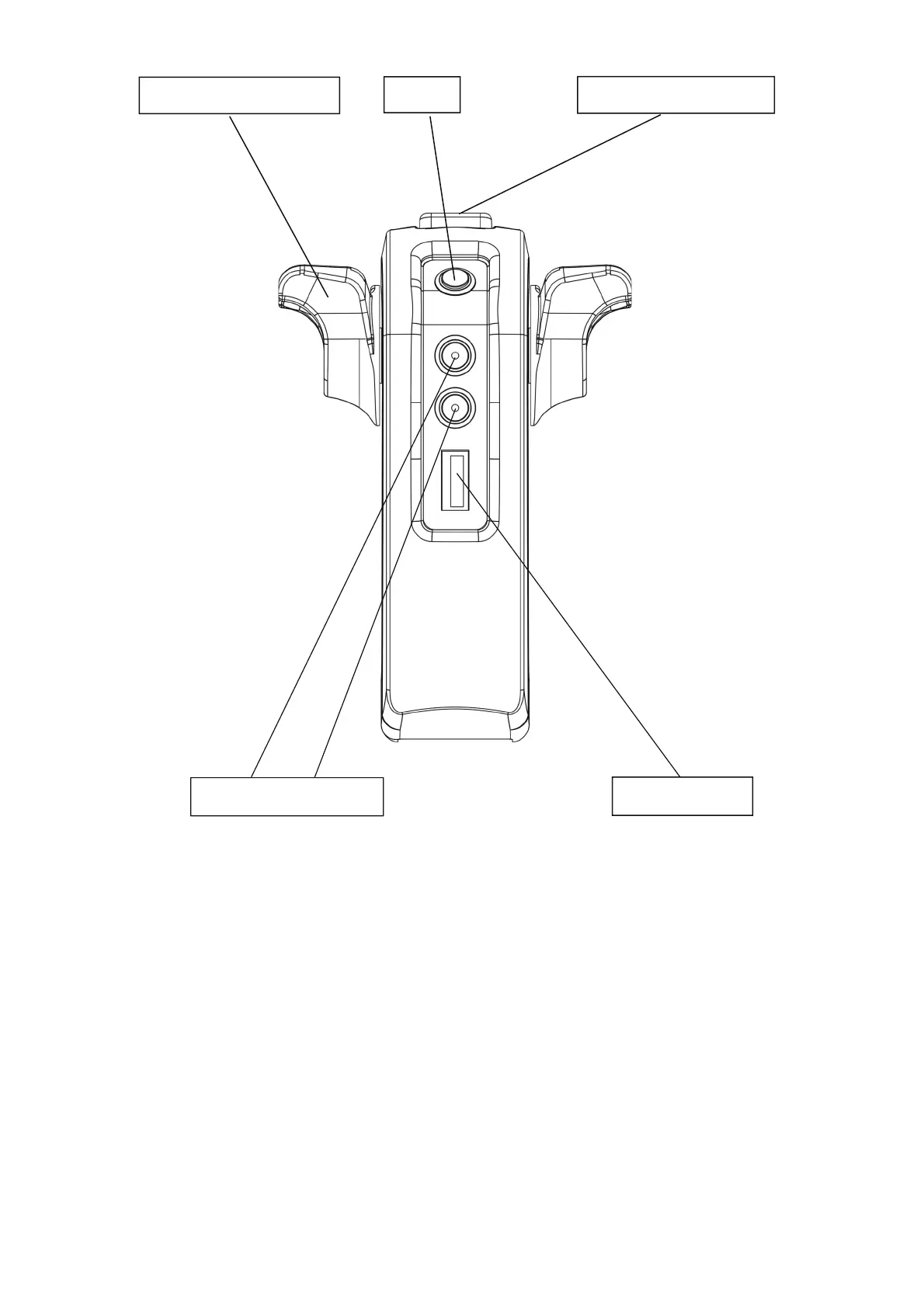

Fork Lifting & Lowering
Forward & backward knob
Horn
Emergency reverse button
Battery indicator
5.4 Drive
Wheel
Disassembly
Introductions
1. Let the drive wheel #10 suspend.
2. Dismantle controller cover (#7) by removing 3 bolts #8.
3. Loosen controller (#5) by removing 2 bolts #6. Avoid force on wires.
4. Dismantle nut cover (#3) by removing 4 bolts #4.
5. Remove nut #2, gently knock out the wheel shaft #9 and remove drive wheel #10.
No. Reference No. Reference
1 drive assembly 6 bolt
2 nut 7
controller cover
3 nut cover 8
bolt
4 bolt x 4 9 wheel shaft
5 controller 10 drive wheel
