STEALTH ELECTRIC BIKES 2013 OWNER’S MANUAL
V 1.2 PAGE | 27

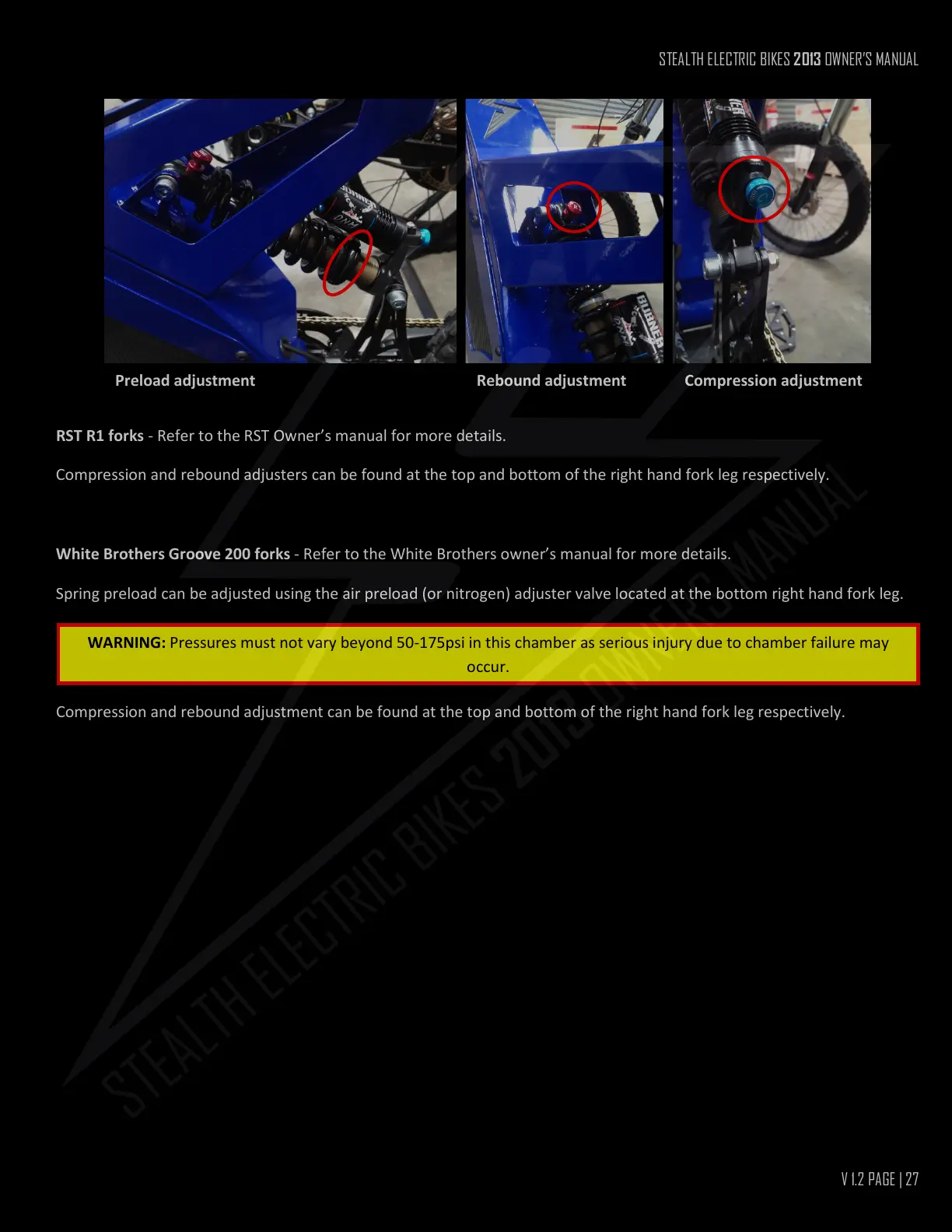

RST R1 forks - Refer to the RST Owner’s manual for more details.
Compression and rebound adjusters can be found at the top and bottom of the right hand fork leg respectively.
White Brothers Groove 200 forks - Refer to the White Brothers owner’s manual for more details.
Spring preload can be adjusted using the air preload (or nitrogen) adjuster valve located at the bottom right hand fork leg.
Compression and rebound adjustment can be found at the top and bottom of the right hand fork leg respectively.
WARNING: Pressures must not vary beyond 50-175psi in this chamber as serious injury due to chamber failure may
occur.
