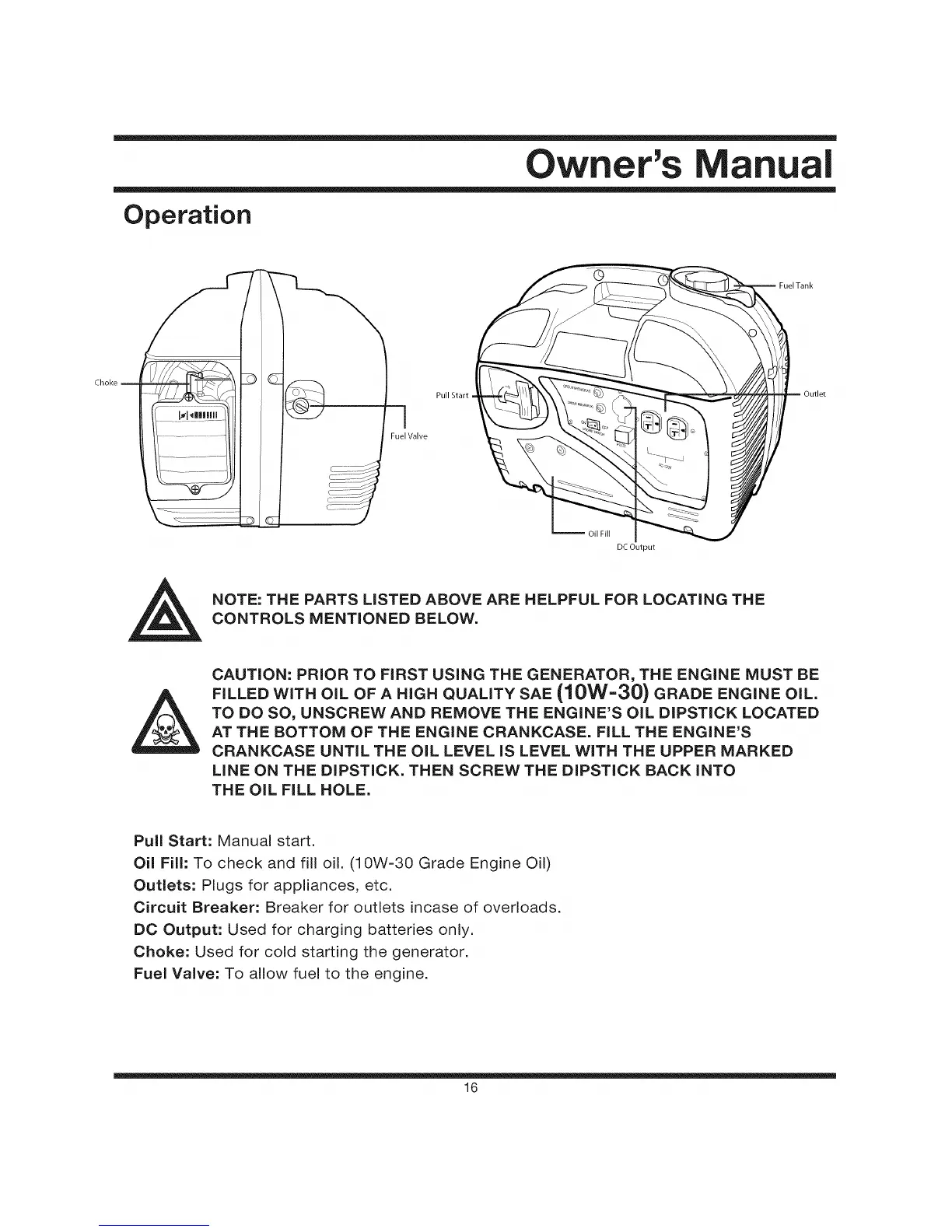

OwneP s anual
Operation
Choke
i
Fuel Valve
Pull Start =
Oil Fill
DC Output
NOTE: THE PARTS LISTED ABOVE ARE HELPFUL FOR LOCATING THE
CONTROLS MENTIONED BELOW.
CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST BE
FILLED WITH OIL OF A HiGH QUALITY SAE (10W-30) GRADE ENGINE OIL.
TO DO SO, UNSCREW AND REMOVE THE ENGINE'S OIL DIPSTICK LOCATED
AT THE BOTTOM OF THE ENGINE CRANKCASE. FILL THE ENGINE'S
CRANKCASE UNTIL THE OiL LEVEL IS LEVEL WITH THE UPPER MARKED
LINE ON THE DIPSTICK. THEN SCREW THE DIPSTICK BACK INTO
THE OIL FILL HOLE.
Pull Start: Manual start.
Oil Fill: To check and fill oi!. (10W-30 Grade Engine Oil)
Outlets: Plugs for appliances, etc.
Circuit Breaker: Breaker for outlets incase of overloads.
DC Output: Used for charging batteries only.
Choke: Used for cold starting the generator.
Fuel Valve: To allow fuel to the engine.
16
