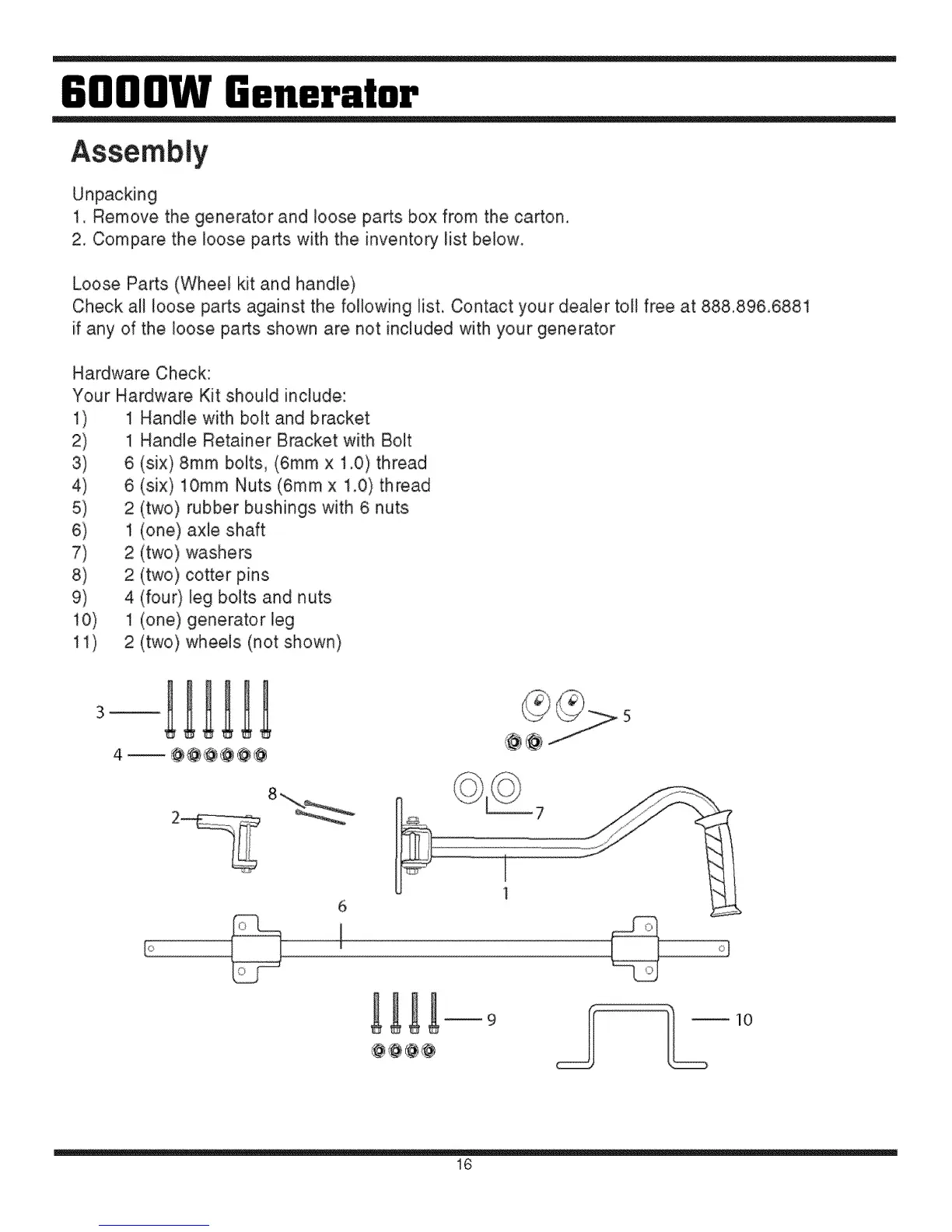

6000W G orator
Assembly
Unpacking
1. Remove the generator and loose parts box from the carton.
2. Compare the loose parts with the inventory list below.
Loose Parts (Wheel kit and handle)
Check al! loose parts against the following list. Contact your dealer toll free at 888.896.6881
if any of the loose parts shown are not included with your generator
Hardware Check:
Your Hardware Kit should include:
1 1 Handle with bolt and bracket
2
3
4
5
6
8
9
lO)
11)
1 Handle Retainer Bracket with Bolt
6 (six) 8ram bolts, (6ram x 1.0) thread
6 (six) lOmm ['-Juts(6ram x 1.0) thread
2 (two) rubber bushings with 6 nuts
1 (one) axie shaft
2 (two)washers
2 (two) cotter pins
4 (four) leg bolts and nuts
1 (one) generator leg
2 (two) wheels (not shown)
0 O]
L
_10
16
