CLEARANCE REQUIREMENTS
There are minimum clearances that must be
maintained when choosing a location. (See Figure
2.) These areas surrounding the heater must be kept
open and free of debris. Objects such as curtains,
furniture, or bed covers must be kept a minimum of
4" from all surfaces of the heater. The back clearance
is provided by the wall mounting bracket or by the
security base. DO NOT place objects of any kind on
top of the heater. The heater may be recessed into a
wall; however, access to the heater's front panel and
grill MUST NOT be obstructed or enclosed and all
clearance requirements MUST be maintained.
2100 Series Installation 2.02
PLACEMENT
The heater can be placed on an interior or an exterior wall. Ideal placement is along an interior wall, adjacent to an
exterior wall. To nd the best location for the heater, consider the following:
♦ Physical Dimensions - All clearance requirements specied in the Clearance Requirements section (Page
2.02) MUST be followed to ensure proper operation, safety, and performance of the equipment.
 ♦ Weight - The weight of the heater MUST be considered when selecting a location. If there are structural
weight concerns, consult a building contractor or architect before installing.
 ♦ Flooring - The heater can generally be placed on any standard ooring. The bottom of the heater will be
warm in normal operation; therefore, discoloration under the heater may occur to certain ooring products.
Contact the ooring manufacturer or Steffes Corporation with questions regarding the acceptability of the
oor covering. If installing on extremely thick carpet, it may be necessary to slightly elevate the heater as
carpet should remain at least ¾ inch away from air discharge grill openings.
 ♦ Room Temperature Sensing - To ensure accurate room temperature sensing, avoid installing the heater
near an open stairwell, near sources of heat or cold, or with less than 12" clearance on the right side. Refer
to Room Temperature Control section (Page 1.02) for information regarding the optional remote room
temperature sensor.
Riskofre.Cancauseinjuryordeath.Violationof
the clearance requirements can cause improper
operation of the equipment. Maintain the placement
andclearancerequirementsspecied.
WARNING
A clearance of 12" is recommended on the right side of heater. If there is less than a 12" clearance,
a remote room temperature sensor is recommended to ensure accurate room temperature sensing.
The 12" clearance also allows space for hinging the right side panel open for servicing.
Special requirements must be considered if placing the system in a garage or other area where
combustible vapors may be present. Consult local, state, and national codes and regulations to ensure
proper installation.
Minimum Clearances
Top 4"
Front & Grill 15"
Sides 2"
Back 1 1/2"

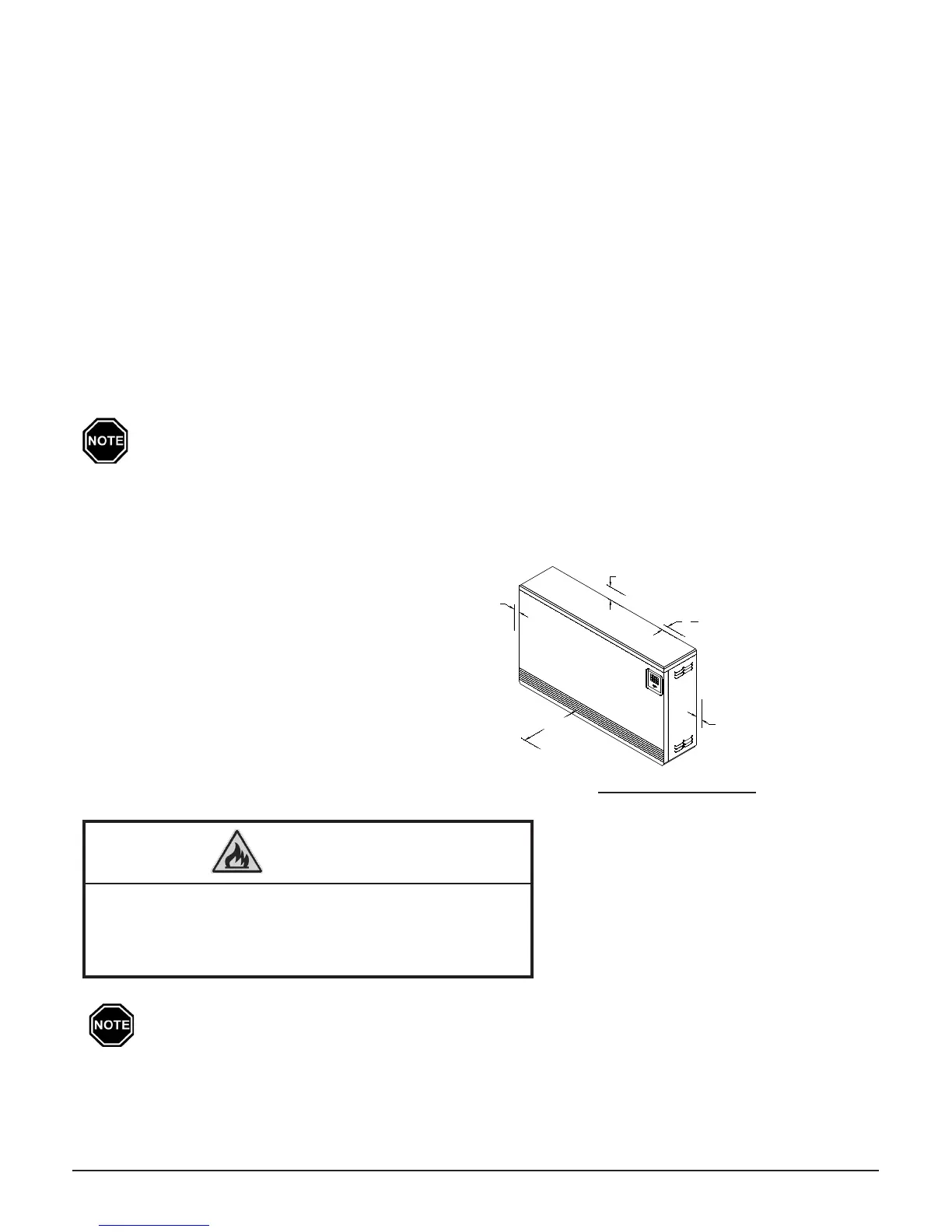

Minimum Clearances
Figure 2
1
1
2
"
15"
2"
4"
2"
(12" Recommended)
