Assembling the solar shower

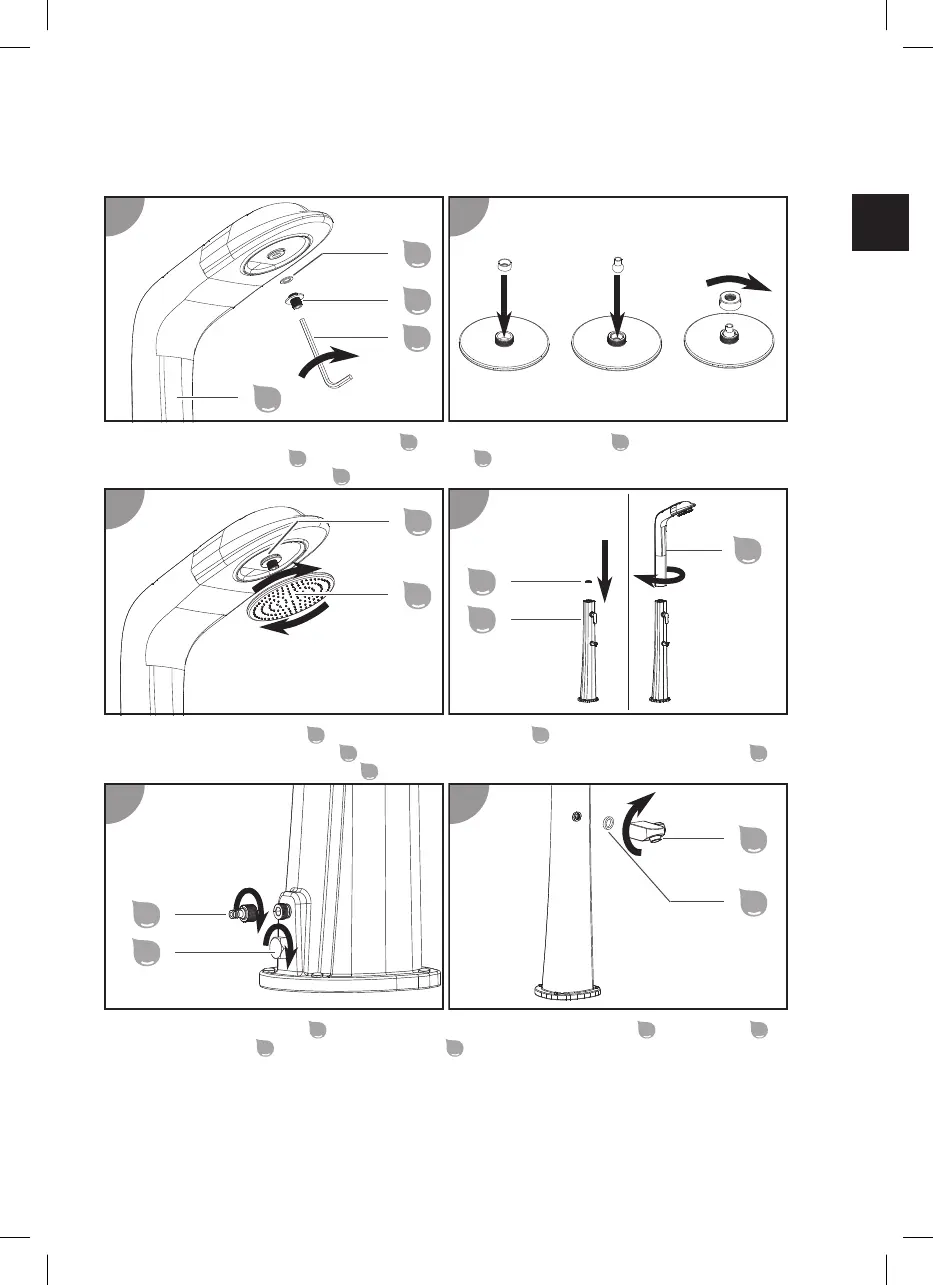

To assemble the solar shower, proceed as follows:
2
1
3
2
12
3
1. Place the O-ring for the shower head
1
on the connecting element
2
and screw the connecting
element into the tank
3
using the Allen wrench
12
.
2. Assemble the shower head
11
.
4
2
11
1
11
5
6
3
4
3. Screw the shower head
11
onto the connecting element
2
.
4. Place the O-ring for the tank
4
into the screw connection of the bottom part of the tank
6
.
5. Position the top part of the tank
3
and screw the top part onto the bottom part.
6
8
7
7
6
9
10
6. Screw the hose adapter
8
onto the hose connection and the drain cap
7
into the tank
6
.
7. Place the O-ring
10
on the cold water outlet
9
and screw the cold water outlet into the tank.
The solar shower is assembled.
