STEINEL HG 2220 E - Maintenance; Changing the Heating Element

- 9 -
English

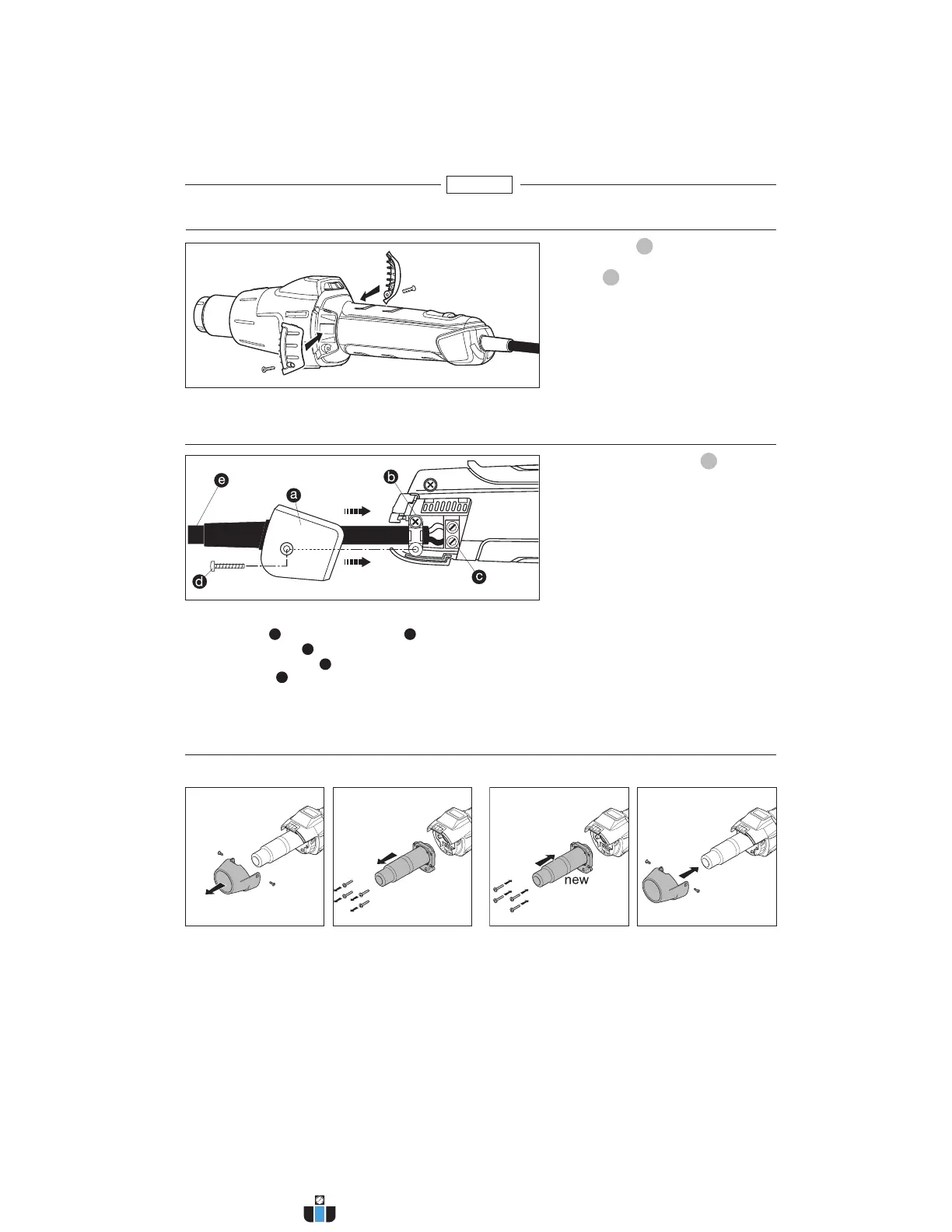

Maintenance
Fine dust filter
3
The HG2620 E has an integrated fine
dust filter
3
. To clean it (with com-
pressed air), undo screws (a), take off
cover and remove filter.
a
a
Repair
Changing the power cord
14
Important! Disconnect tool from power
supply. Let have electrical repairs only
be executed by fully trained licensed
electricians.
If the power cord is damaged, it can easily be changed without opening the casing.
1. Undo screw and pull off cover cap
.
2. Release cable grip
.
3. Undo mains terminals
.
4. Pull out cable .
5. Insert new cable and secure in reverse order (1. Firmly screw down mains terminals etc.).
d
a
b
c
e
Changing the heating element
The plug-in heating element in the HG 2620 E can be changed in a matter of seconds.
1.
3.
2.
4.
1.
3.
2.
4.
Important! Disconnect tool from power supply.
1. Undo guard sleeve screws and remove guard sleeve (Fig. 1).
2. Undo 4 screws at the end of the hot air outlet nozzle and detach heating element.
3. Replace the heating element with a new one and firmly screw heating element into place (Fig. 3).
4. Firmly screw guard sleeve back on (Fig. 4).
