STEINEL HL 2010 E - Spare Parts List HL 1910 E; Wiring Diagram HL 1910 E

- 12 -
English
1
4
12 13
7
2
10
9
11
6
8
5

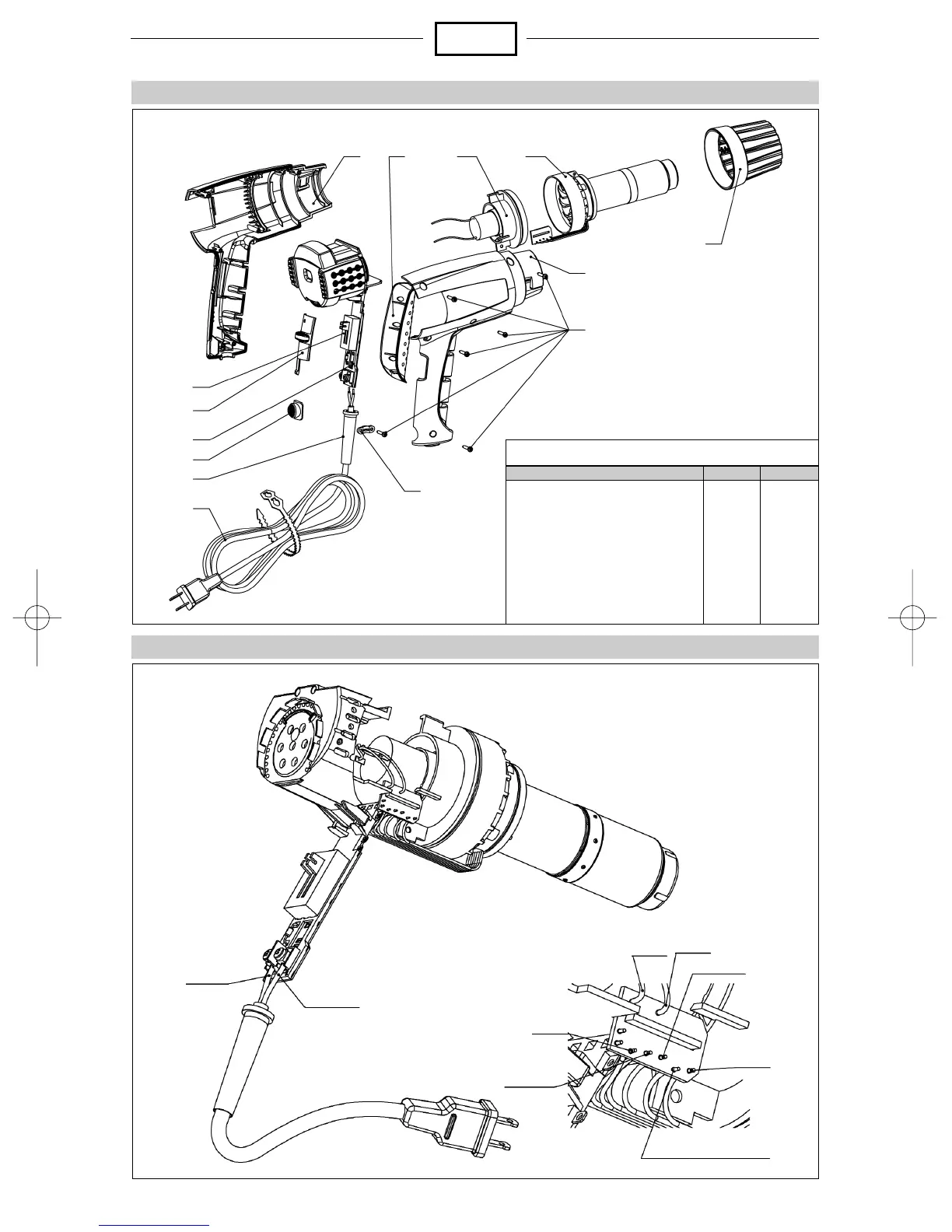

Spare Parts List HL 1910 E
Part No.
Pos.
HL 1910 E, Type 3484
Housing Set incl. Labels
Switch with Markings (external)
Softgrip
Rubber Soft Stand
Power Cord with Strain Relief
Outlet Protection Tube
Power Cord Connector
Set of 5 Housing Screws
PCB/IC Block with Switch and End Cap
Motor/Fan Assembly
Heating Element 1500W/120V
Switch (internal)
1 + 2
3
4
5
6 + 8
7
9
10
11
12
13
14
02819
02420
02621
02629
02723
02523
—
02829
02319
02225
02120
02426
white
black
2:1
green
red
red
blue
blue
yellow
yellow (fuse)
Wiring Diagram HL 1910 E
3
14
