STEINEL L 800 LED iHF User Manual

- 14 - - 15 -
Motion detection and all other sensor functions are
completely deactivated (sensor o). We recommend
selecting the shortest time ( 5seconds ) for setting
the detection zone.

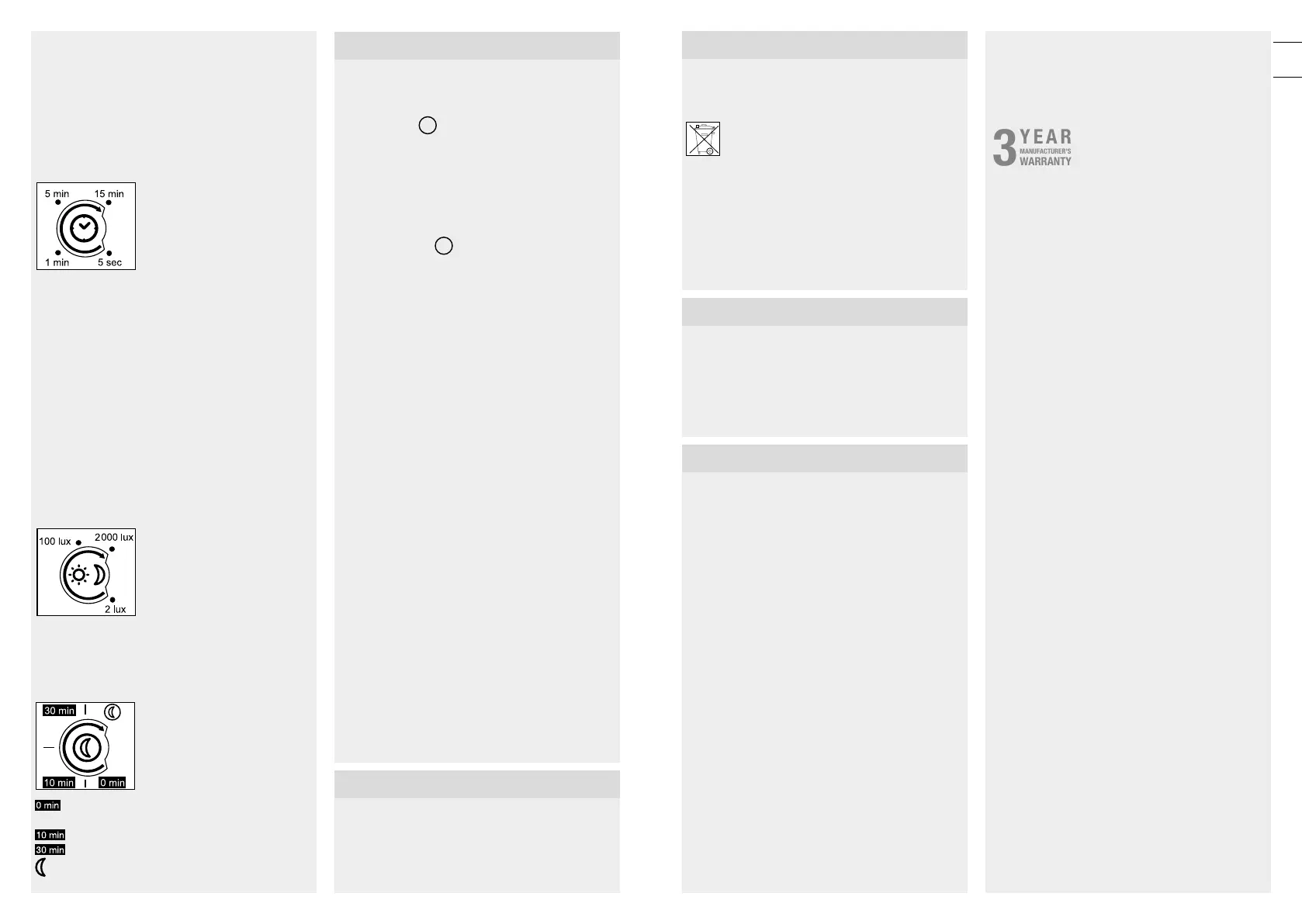

Time setting ( switch-OFF delay ) l
Factory setting: 5s
The light's ON time can be set to any period from
approx. 5s to a maximum of 15min.
sensor o
Adjustment control set to:
15min = maximum time
( 15min )
5sec = minimum time ( 5s )
We recommend selecting the
shortest time ( 5sec ) for setting
the detection zone.
Any movement detected before this time elapses
will restart the timer. The shortest time setting is
recommended when adjusting the detection zone
and performing the functional test.
Note:
After the light switches OFF, it takes approx. 1sec-
ond before it is able to start detecting movement
again. The light will only switch ON in response to
movement once this period has elapsed.
Twilight setting ( response threshold ) m
Factory setting: 2000lux
The chosen response threshold can be infinitely
varied from approx. 2to 2000lux.
sensor o
Adjustment control set to:
2000lux = daylight operation,
approx. 2000lux
2lux = night-time operation,
approx. 2lux
To adjust the detection zone in daylight, the control
dial must be set to 2000lux.
Programme setting n
sensor o
= Soft start / no basic lighting level ON as
from the selected twilight level
= Soft start + basic lighting level 10minutes
= Soft start + basic lighting level 30minutes
= Soft start + basic lighting level all night long
7. Manual override function
o
If a mains switch is installed in the mains supply
lead, the following functions are available in addition
to simply switching light ON and OFF:
Sensor mode
15.1
:
Switch light ON (when light is OFF):
Switch OFF and ON once. Light stays ON for
the period selected.
Switch light OFF (when light is ON):
Switch OFF and ON once. Light goes out or
switches to sensor mode.
Manual override
15.2
:
1 ) Activate manual override:
Switch OFF and ON twice. The light is set to
stay ON for 4 hours ( blue LED lights up behind
the diuser d ). Then it returns automatically to
sensor mode ( blue LED OFF ).
2 ) Deactivate manual override:
Switch OFF and ON once. Light goes out or
switches to sensor operation.
Important:
The switch should be actuated in rapid succession
( in the 0.2–1-second range ).
What is soft light start?
The sensor-switched light features a soft light start
function. This means that when turned ON, the
light is not switched directly to maximum output
but gradually builds up brightness to 100% within
the space of a second. Brightness is also gradually
reduced when the light is switched OFF.
What is basic light level?
The basic light level provides continuous night-time
illumination at approx. 10% light output. The light
only switches to the maximum output of 100% ( for
the time selected, see switch-OFF delay l ) in re-
sponse to movement in the detection zone. The light
then returns to the basic light level ( approx. 10% ).
Note:
Depending on the local power grid, the LED's may
flicker slightly when dimmed. This is not a product
defect and no reason for complaint.
8. Maintenance / care
The product requires no maintenance.
The light can be cleaned with a damp cloth ( without
detergents ) if dirty.
9. Disposal
Electrical and electronic equipment, accessories
and packaging must be recycled in an environmen-
tally compatible manner.
Do not dispose of electrical and electronic
equipment as domestic waste.
EU countries only:
Under the current European Directive on Waste
Electrical and Electronic Equipment and its imple-
mentation in national law, electrical and electronic
equipment no longer suitable for use must be col-
lected separately and recycled in an environmentally
compatible manner.
10. Declaration of Conformity
Hereby, STEINEL Vertrieb GmbH declares that the
radio equipment type L 800 LED iHF Connect /
L 810 LED iHF Connect / L 820 LED iHF Connect
is in compliance with Directive 2014/53/EU. The full
text of the EU declaration of conformity is available
at the following internet address: www.steinel.de
11. Manufacturer’s Warranty
This Steinel product has been manufactured with
utmost care, tested for proper operation and safe-
ty and then subjected to random sample inspec-
tion. Steinel guarantees that it is in perfect condi-
tion and proper working order. The warranty period
is 36months and starts on the date of sale to the
consumer. We will remedy defects caused by mate-
rial flaws or manufacturing faults. The warranty will
be met by repair or replacement of defective parts
at our own discretion. The warranty shall not cover
damage to wear parts, damage or defects caused
by improper treatment or maintenance.
Further consequential damage to other objects shall
be excluded.
Claims under the warranty will only be accepted
if the unit is sent fully assembled and well-packed
with a brief description of the fault, a receipt or
invoice ( date of purchase and dealer's stamp ) to
the appropriate Service Centre.
Repair service:
If defects occur outside the warranty period or
are not covered by the warranty, ask your nearest
service station for the possibility of repair.
MANUFACTURER'S
1
3
5
YEAR
GB
WARRANTY
MANUFACTURER'S
YEAR
WARRANTY
MANUFACTURER'S
YEAR
WARRANTY
GB
