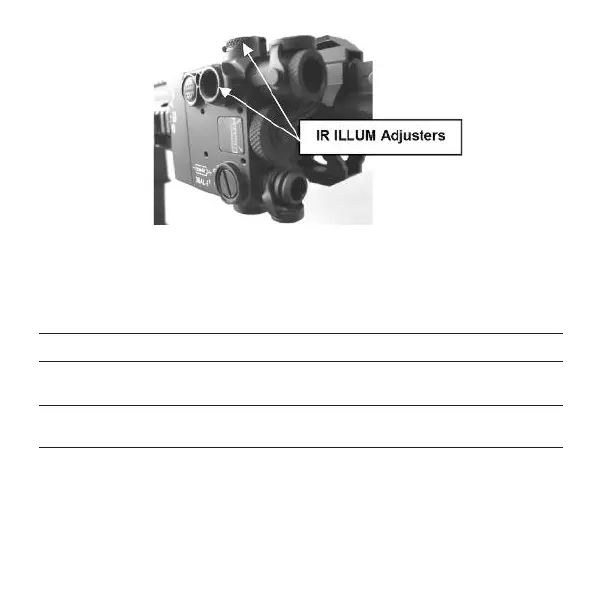

Figure 3-14 IR ILLUM Adjusters (Right Mounted)
Table 3-3 Adjuster Rotation and Illumination Area Movement for the IR
ILLUM (Right Mounted)
ZEROING THE IR ILLUM Adjuster Movement Shot Group Movement
Top Adjuster Elevation CW Up
(guard marked U/D) CCW Down
Side Adjuster Windage CW Left
(guard marked L/R) CCW Right
When adjusting in a CCW direction, apply a positive load to the adjuster by turning
an additional 1/4 turn (8 clicks) CCW, then make the final adjustments by turning
the adjusters in a CW direction. No positive load is required when adjustments are
made in the CW direction.
36
