An integrated Quick Release Mount is used to attach the DBAL-I
2
to weapons
equipped with a MIL-STD-1913 rail. Place the unit far enough back on the rail to
allow for battery replacement without removal from the weapon. If removed,
the DBAL-I
2
must be returned to the same position on the rail to retain zero.

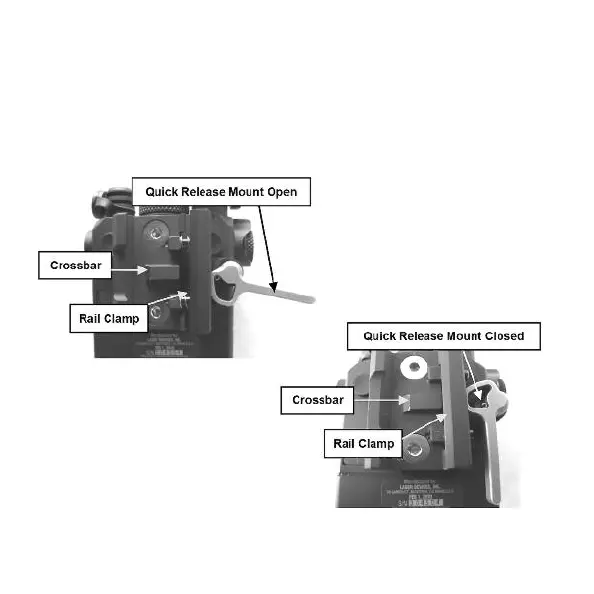

Figure 3-10 Quick Release
Mount Configuration, Open
Figure 3-10 Quick Release
Mount Configuration, Closed
