The DBAL-I
2
may be mounted on the Top, Left, or Right rail using the Quick
Release Mount.
Open the Quick Release Mount so that it is perpendicular to the DBAL-I
2
housing. See Figure 3-15.
Align the crossbar on the bottom of the mount with a slot on the rail. Push
forward on the DBAL-I
2
so that the crossbar contacts the front of the slot on
the MIL-STD-1913 rail. Move the quick release arm so that it is parallel with the
body of the laser housing. See Figure 3-16.
Install the Remote Cable Switch in a convenient location.

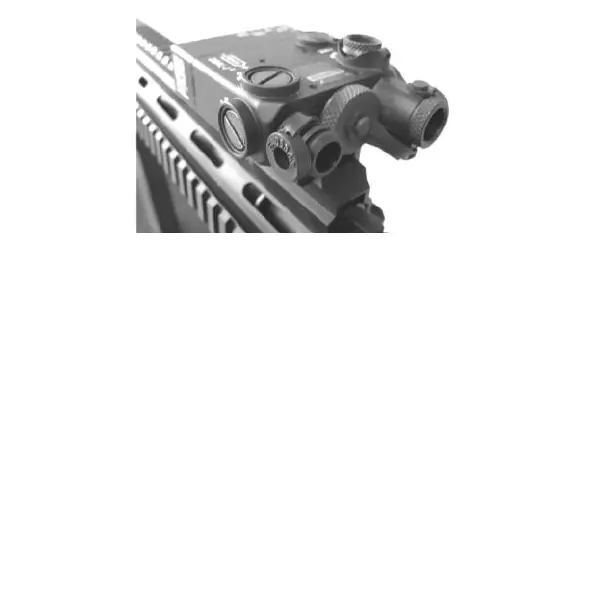

Figure 3-12 DBAL-I
2
Top Mounted on M4/M16A
40
