TMAX™ Owner’s Manual

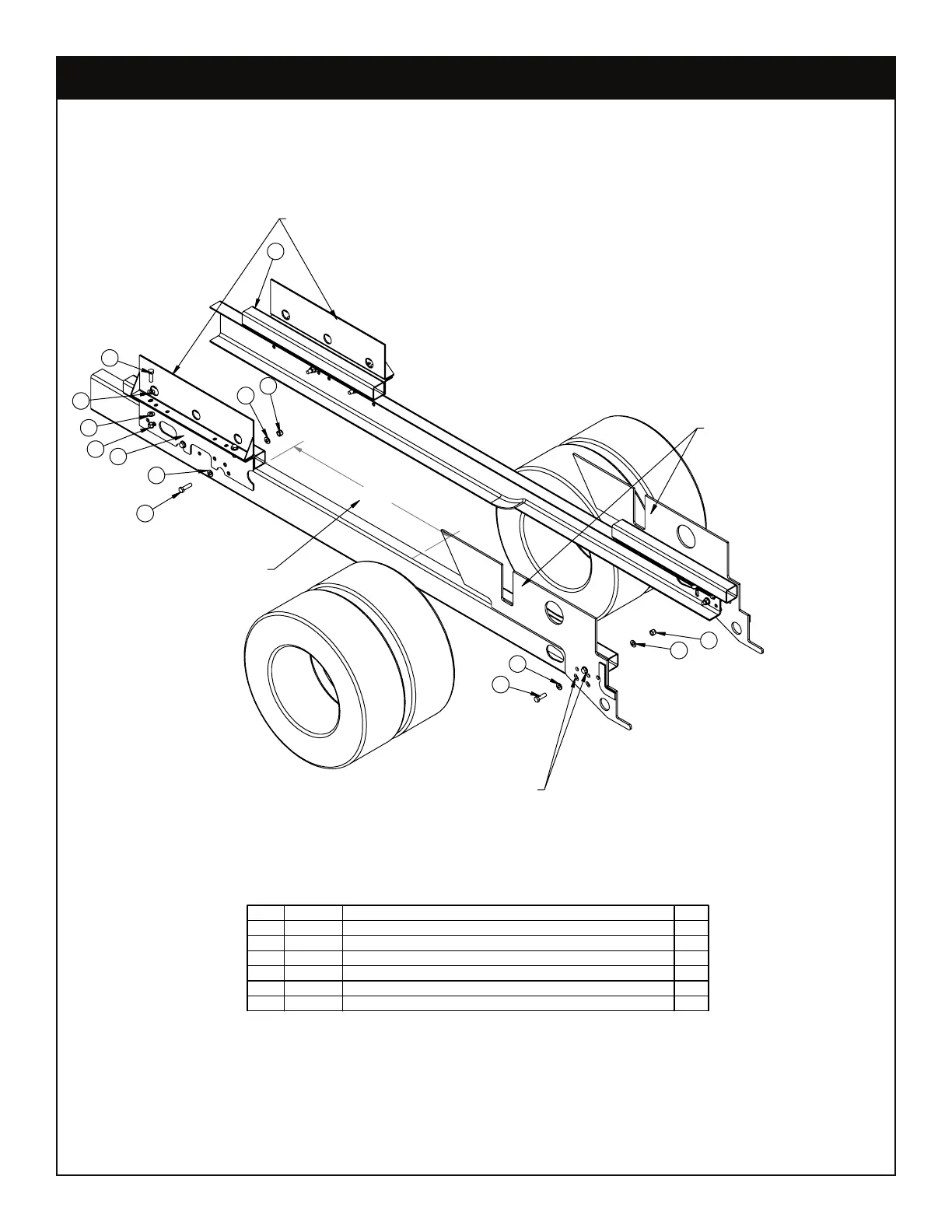

TMAX1-13 & TMAX1/30K/16K-11 Mounting Kit - Ford - PN 13258
PN 13258
01 13251 1BRKT BODY MNT FRONT RF PC BLACK
04 24868 12NUT 0.63-11 HHGR8 NYLOC
03 C5902 24WASHER 0.63 SAE FLAT YELLOW GR8
02 13254 1BRKT BODY MNT FRONT LF PC BLACK
05 C1025 8CAP SCR 0.63-11X2.00 HHGR8
06 84053 4CAP SCR 0.63-11X2.25 HHGR8
ITEM PART No. QTY.DESCRIPTION
41.13
EXISTING HOLES IN FORD CHASSIS.
BODY MOUNT ON REAR
OF SUBFRAME.
BODY MOUNT ON FRONT OF SUBFRAME
1
2
3
5
5
6
3
4
3
3
3
4
CENTER OF AXLE TO
REAR OF FRONT MOUNT
3
4
