TMAX™ Owner’s Manual | Page 11

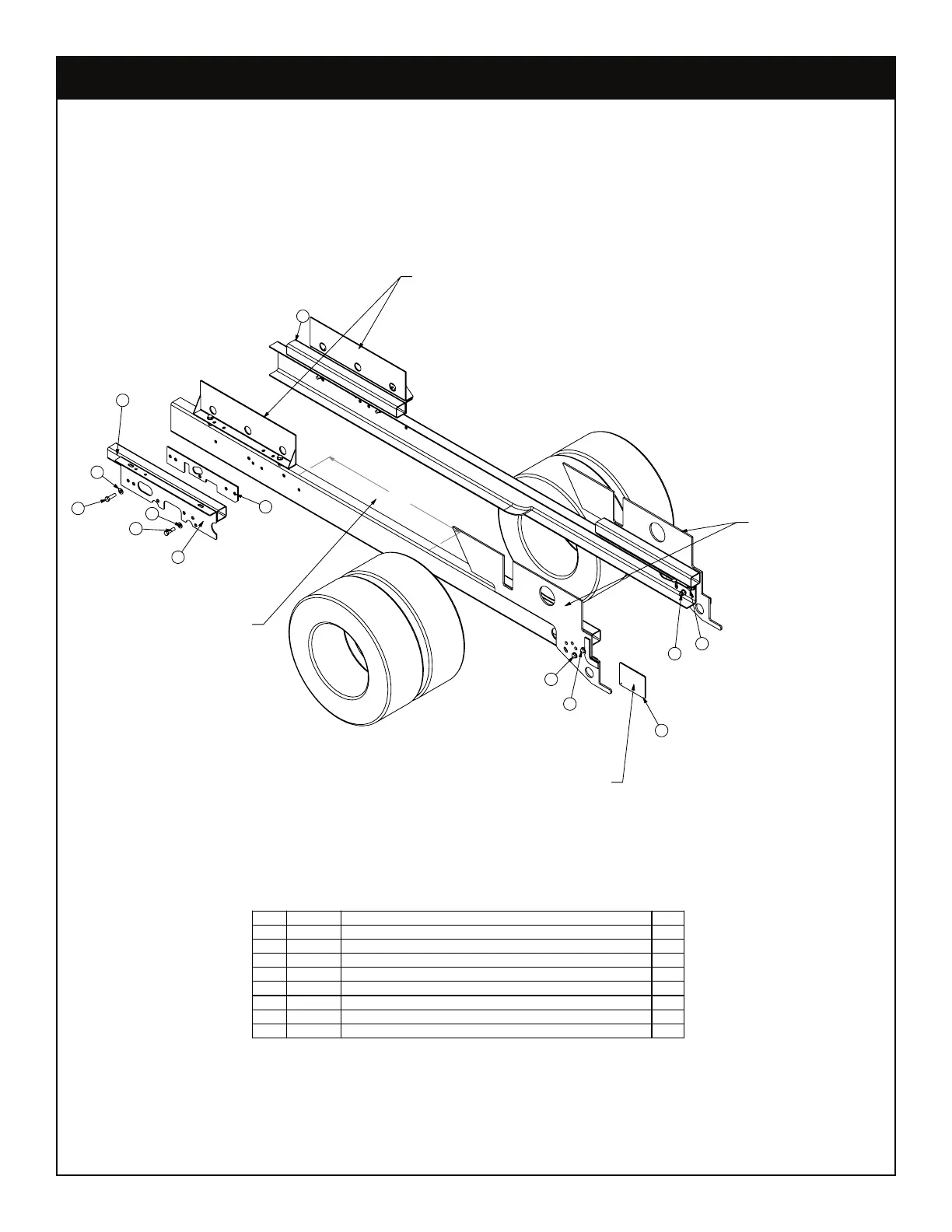

TMAX1-13 & TMAX1/30K/16K-11 Mounting Kit - Dodge - PN 57645
PN 57645
01 13251 1BRKT BODY MNT FRONT RF PC BLACK
04 24868 12NUT 0.63-11 HHGR8 NYLOC
03 C5902 24WASHER 0.63 SAE FLAT YELLOW GR8
02 13254 1BRKT BODY MNT FRONT LF PC BLACK
05 57646 2SPACER FRONT D5500 2010
06 79493 1SPACER T1 MTG D5500
07 C1025 6CAP SCR 0.63-11X2.00 HHGR8
08 84053 6CAP SCR 0.63-11X2.25 HHGR8
ITEM PART No. QTY.DESCRIPTION
41.13
1
2
2
8
3
NOTE: FRAME AND SUBFRAME WELDMENT
ARE SHOWN FOR REFERENCE ONLY.
NOTE: AFTER LOCATING THE
PART IT CAN BE TACK WELDED IN PLACE FOR EASE OF
INSTALLATION.
5
BODY SUBFRAME
6
BODY MOUNT ON REAR
OF SUBFRAME.
8
3
CENTER OF AXLE TO
REAR OF FRONT MOUNT
8
8
7
7
