Stenner 45MHP10 - Motor Exploded View

www.stenner.com36
Gear Case Cover
Motor
Shaft
Metal
Reduction
Gear
Thrust
Washer
Gear
Post
Rain Roof
Toggle
Switch
Switch
Boot
Mounting
Bracket
Coil

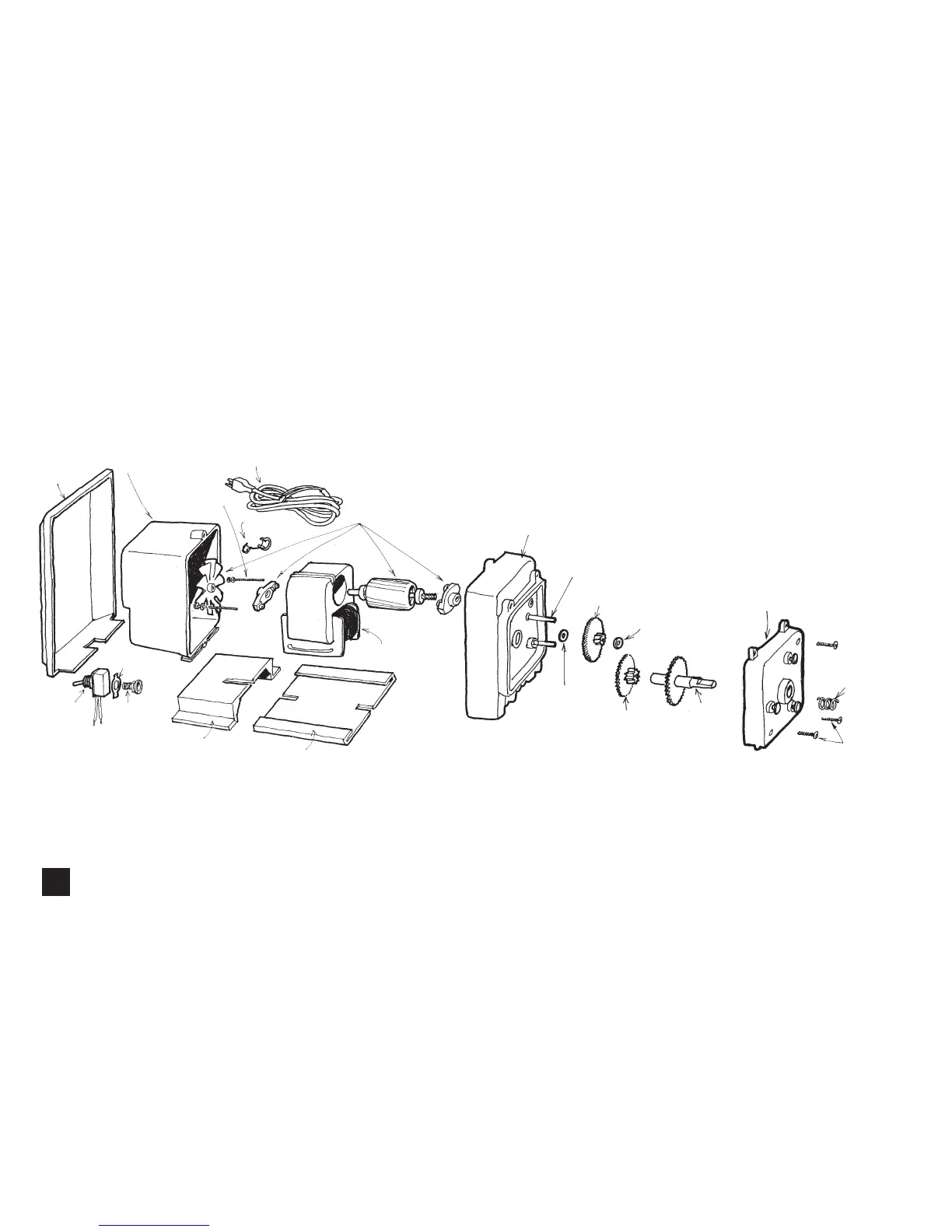

Motor – exploded view
Contact factory for part numbers.
On-Off
Switch Plate
Motor
Base
Power Cord
Strain Relief
Bushin
g
Rotor Assembly with
Bearings, Brackets,
Tolerance Rings & Fan
Gear Case
Phenolic
Gear
Phenolic
Gear Spacer
Pressure Spring
(adjustable
models only)
Cover
Screw “B”
Coil Screw “G”
w/Lock Washer
Motor Cover
with cord
