4．Block Diagram of Board

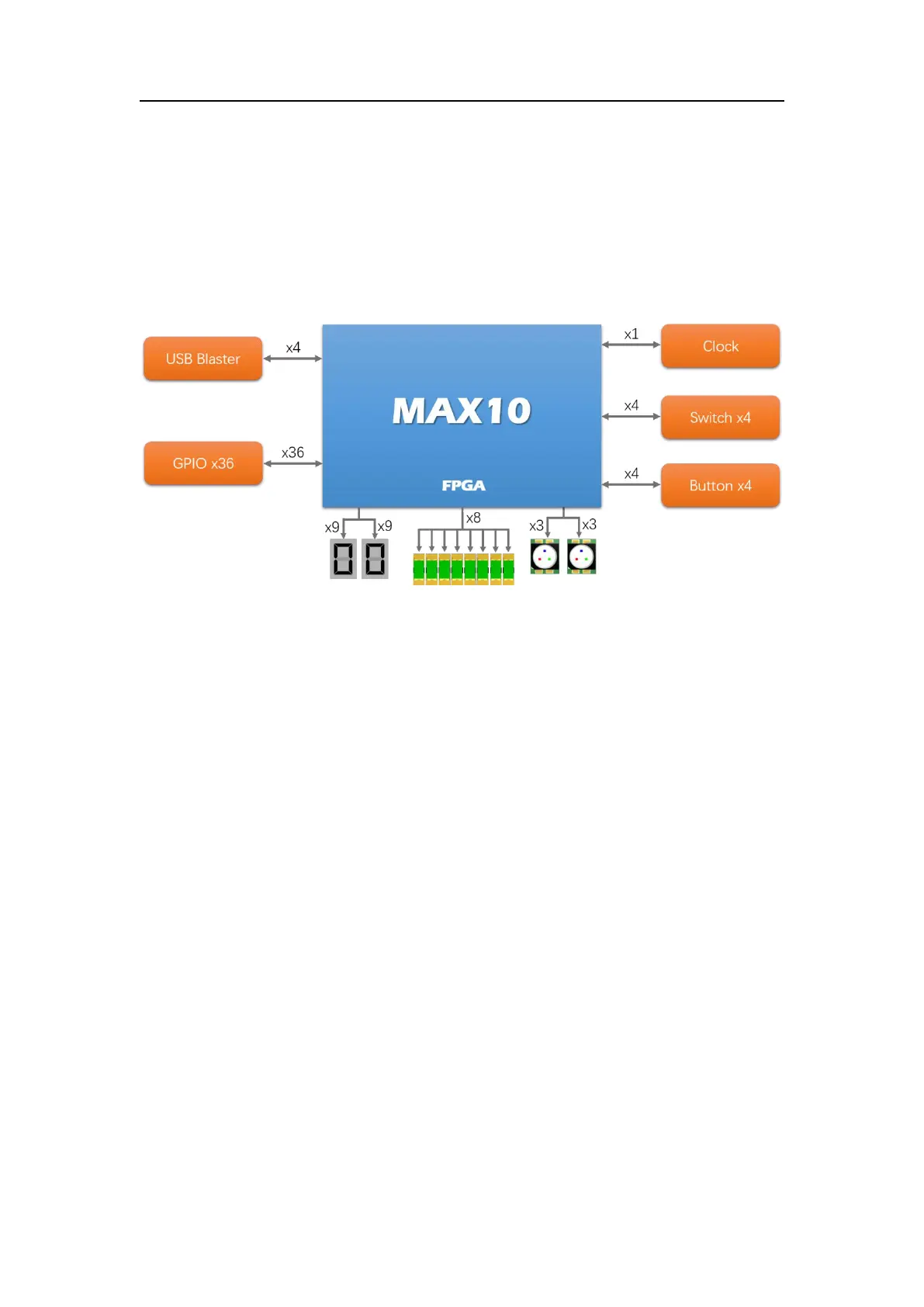

Figure 4 gives the block diagram of the board. To provide maximum flexibility for the user, all
connections are made through the MAX 10 FPGA device. Thus, the user can configure the
FPGA to implement any system design.
Figure 4 Board Block Diagram
There are two versions that can be selected: 10M02/10M08
