Stephill SE6000D4 - Fuel System Bleeding Procedure

SSD6000-SSD6000S-SE6000D4
26
The fuel system shouldn't need bleeding unless maintenance has been carried out (e.g. fuel filter).
Should the need to bleed the fuel system occur ensure the fuel tank has at least 10L of diesel.
Be aware of the generator model type below as there are different methods to bleed the fuel system.
SSD6000 - SSD6000S - SSD6000/3PH
These generator model types have an easy bleed fuel system with the aid of a low pressure 12V fuel pump.
Key Switch
DSE 3110
Press and hold the "FUEL PUMP PRIME" button located on the control panel for 1 minute.
The bleeding of the fuel system is now complete.
SE6000D4

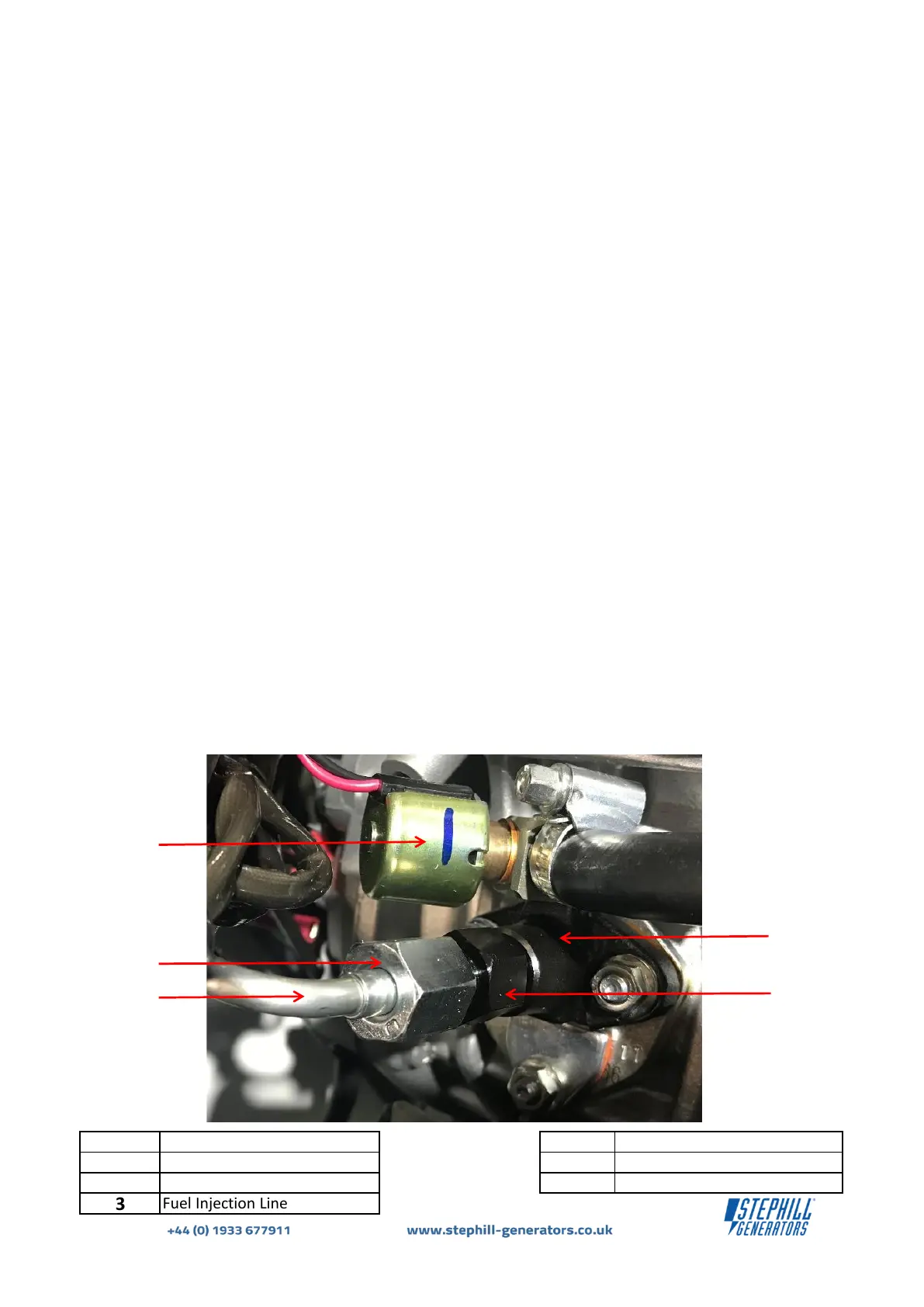

Fig.16 below shows the fuel injection pump.
Fig.16
No. No.
1
Fuel Solenoid
4
Body
2
Fuel Injection Line Nut
5
Fuel Delivery Valve
3
Fuel Injection Line
• Slowly begin to turn the key to the START position until the BATTERY lamp goes out. You should also hear
the 12V fuel lift pump operate. Hold the key at this position for approximately 1 minute, this should be
enough time to allow the fuel to completely fill the system. Turn the key back to the STOP position.
The SE6000D4 has no 12V low pressure fuel pump and solely relies on gravity to feed fuel to the injection
pump. This requires a manual approach to bleed the fuel system.
Description
Description
• Turn the key to the RUN position, do not start the generator. The BATTERY and LOW OIL PRESSURE lamps
should be illuminated - Ref. Fig.11
To self-bleed the fuel system that uses a key switch requires to operate the 12V fuel lift pump and fuel
solenoid on the generator without cranking the engine. Follow this simple procedure:
Fuel System Bleeding Procedure
1
2
3
4
5
