Stephill SE6000D4 - Page 31

31 4 5 6
7 8 9 11 12 13310
2
Item Part Number Description Qty
1 022-0687 SE6000D4 NSM Lifting beam 1
2
022-1002 Stay 1
3
022-0585 SE6000D4 Engine door 2
4
022-0538 SE6000D4 Engine mounting bracket 1
5
022-0681 SE6000D4 NSM Trolley base 1
6
022-0537 SE6000D4 L100 Air inlet tube plate 1
7
022-0682 SE6000D4 NSM door 1
8
022-0614 SE6000D4 Fan cowl 1
9
022-0572 SE6000D4 Battery clamp bottom 1
10
022-0571 SE6000D4 Battery clamp top 1
11
022-0546 SE6000D4 Battery door 1
12
027-0022 Wheel 2
13
027-0023 Wheel cap 2
R Golding
A 04/02/13
New drawing
Date Revision Issue
THIRD
ANGLE
PROJECTION
Colour
Material
Description
Fax :
Phone :
Drawing Number
Drawn

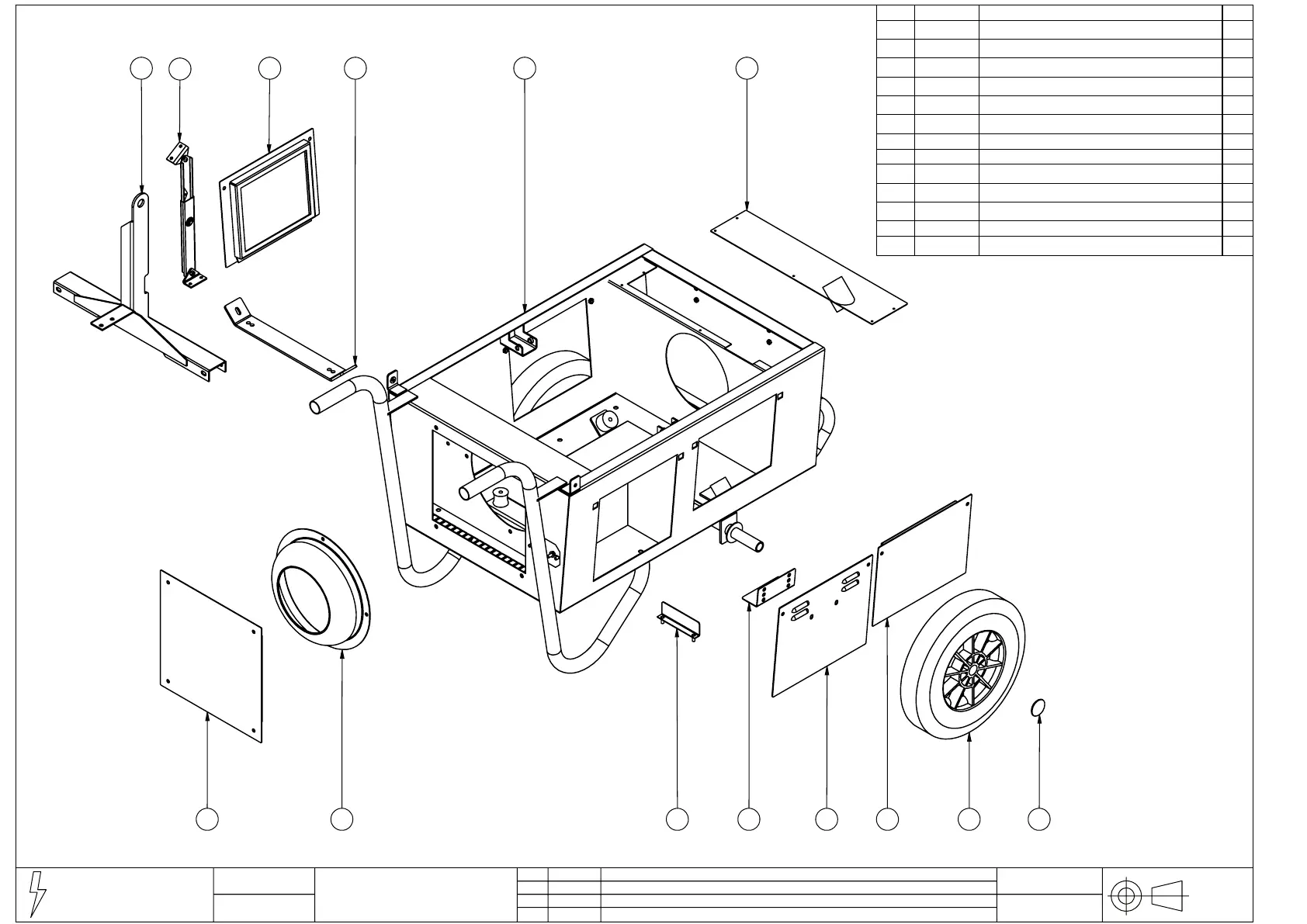

SE6000D4 NSM Exploded view
22-696
Mild steel
N/A
STEPHILL GENERATORS
+44 (0)1933 677911
+44 (0)1933 677916
B Descriptions changed. 17/06/15
C Stay added. 11/06/18
