Stephill SSD6000 - Page 33

2
5
1011
12
67
1
9
3
413
8
Part No Description Qty
1 022-0627 SSD6000 Base 1
1 022-0675 SSD6000S Base 1
2
022-0607 SSD6000 Battery tray 1
2
022-0673 SSD6000S Battery tray 1
3
022-0576 SSD6000 Engine air inlet duct 1
4
022-0575 SSD6000 Battery door 1
5
022-0598 SSD6000 Axle 1
6
027-0022 Wheel 2
7
027-0023 Wheel cap 2
8
022-0704 SSD6000 Handle 1
8
022-0724 SSD6000 Handle Lighting tower 1
9
022-0614 SSD6000 Fan cowl 1
10
022-0538 SSD6000 Engine mounting bracket 1
11
022-0697 SSD6000 NSM Alternator air inlet duct 1
12
022-0609 SSD6000 Lift beam 1
12
022-0677 SSD6000S Lift beam 1
13
022-1055 Gas strut 1
R Golding
A 04/02/13
New drawing
Date Revision Issue
THIRD
ANGLE
PROJECTION
Colour
Material
Description
Fax :
Phone :
Drawing Number
Drawn

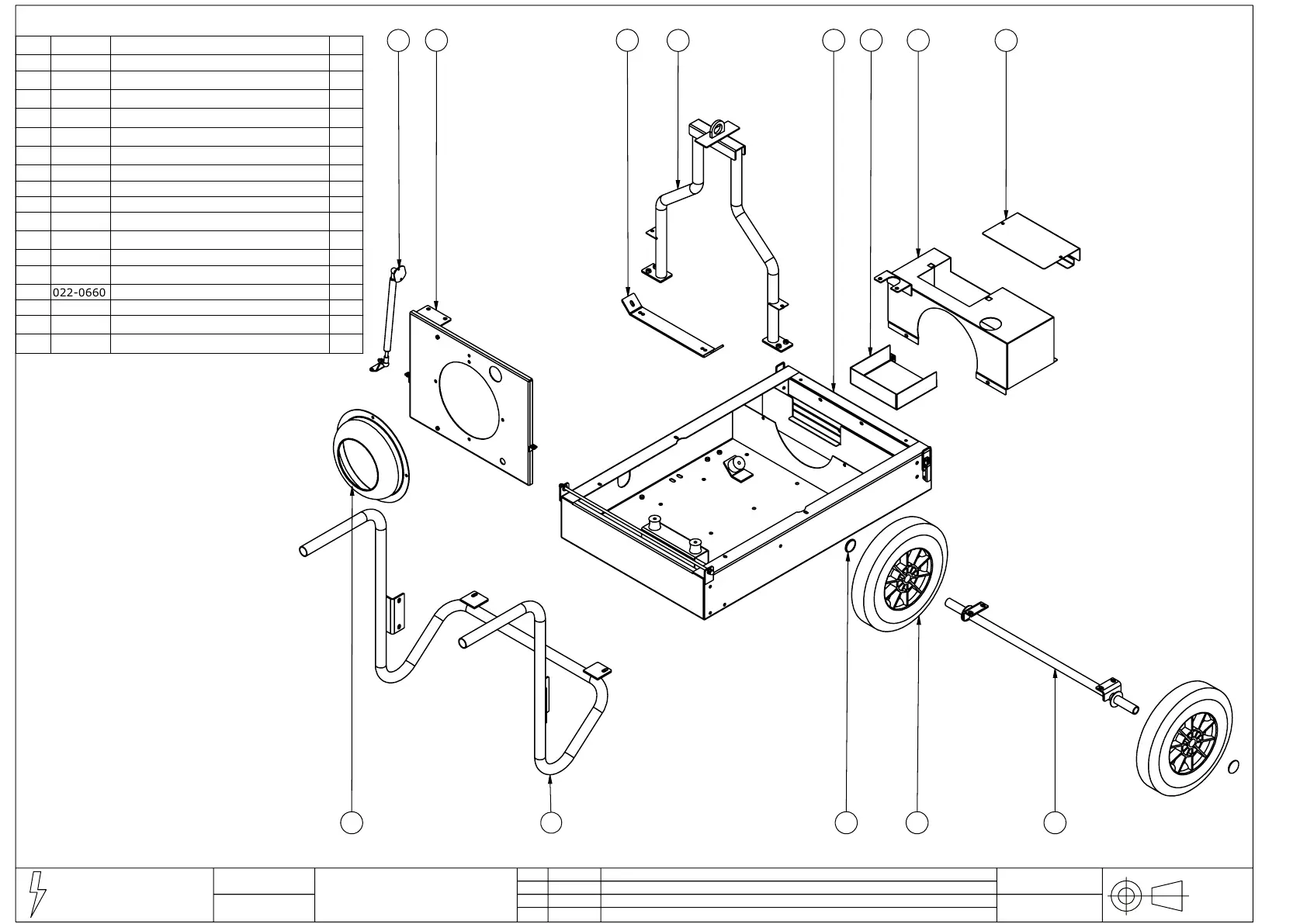

SSD6000 & SSD6000S Base exploded
view
22-697
Mild steel
N/A
STEPHILL GENERATORS
+44 (0)1933 677911
+44 (0)1933 677916
Descriptions updated. 16/06/15 B
C Handle changed & Gas strut added. 07/06/18
022-0660
