ATTACH FOAM PLUG HOUSINGS TO TELESCOPING POLES
Each 20m-6m telescoping pole tip requires a breathable foam plug to allow for venting of the EHU. The
foam plug assembly (PN 70-1007-01) consists of a special UV resistant foam plug material, and a plastic
housing as shown in figure 50.
The foam plug is installed inside the plastic housing at the factory.
The fit of the plastic housing on the pole tip is purposely very tight, so that the foam plug assembly will
stay in place. Before attaching the plastic housing, spread a small amount of dish soap around the in-
side edge of the plastic housing as shown in figure 51. This helps the housing slide on easily, and the
soap will eventually evaporate, leaving you with a firm interference fit.
Insert the plastic housing onto the telescoping pole tip as shown in figure 52. Be sure that the plastic
housing bottoms out on the pole tip, as shown in figure 53.
Repeat for the other telescoping pole tip.

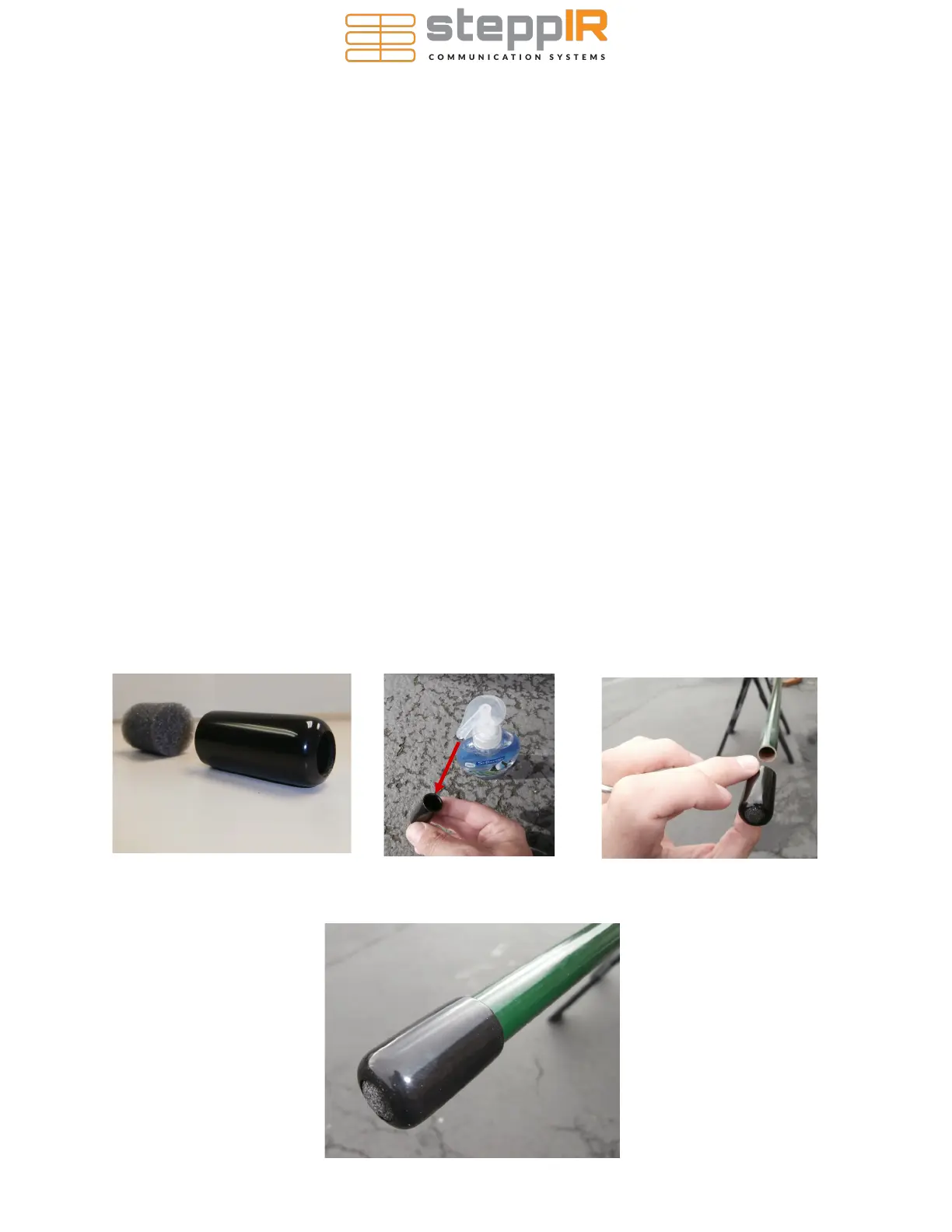

FIG. 50
FIG. 51
FIG. 52
FIG. 53
