2. Attach each of the 4” stainless steel turnbuckles (PN 60-0083) using the 1/4” x 1-1/4” hex head bolt (PN
60-0110), two of the 5/16” stainless steel flat washers (PN 60-0033) and 1/4” Nylock nuts (PN 60-0030) as

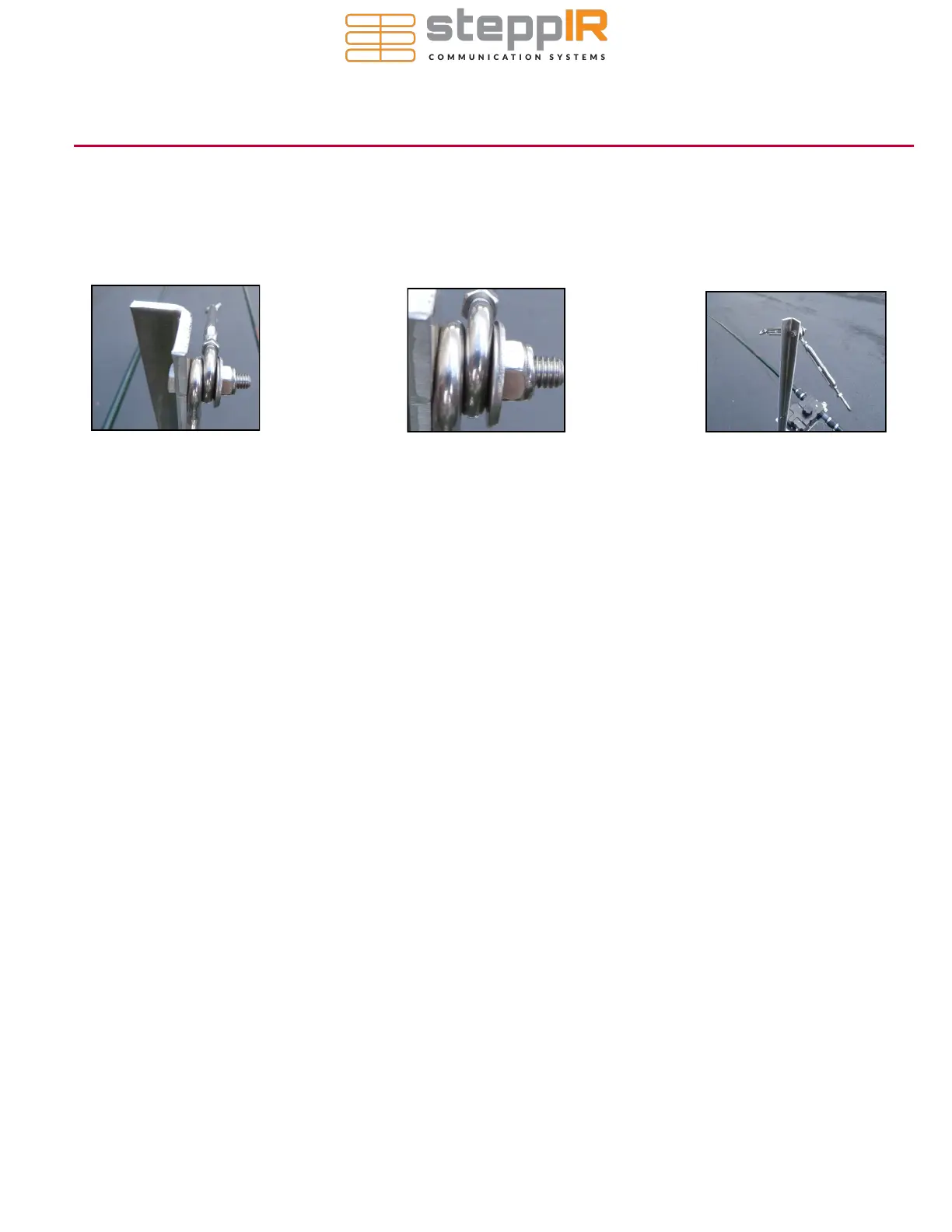

shown in figure 14.04 and figure 14.05. Figure 14.06 shows the top of a completed element truss support
without the Dacron rope attached.
ELEMENT TRUSS SUPPORT CONT.
Figure 14.04
Figure 14.05
Figure 14.06
