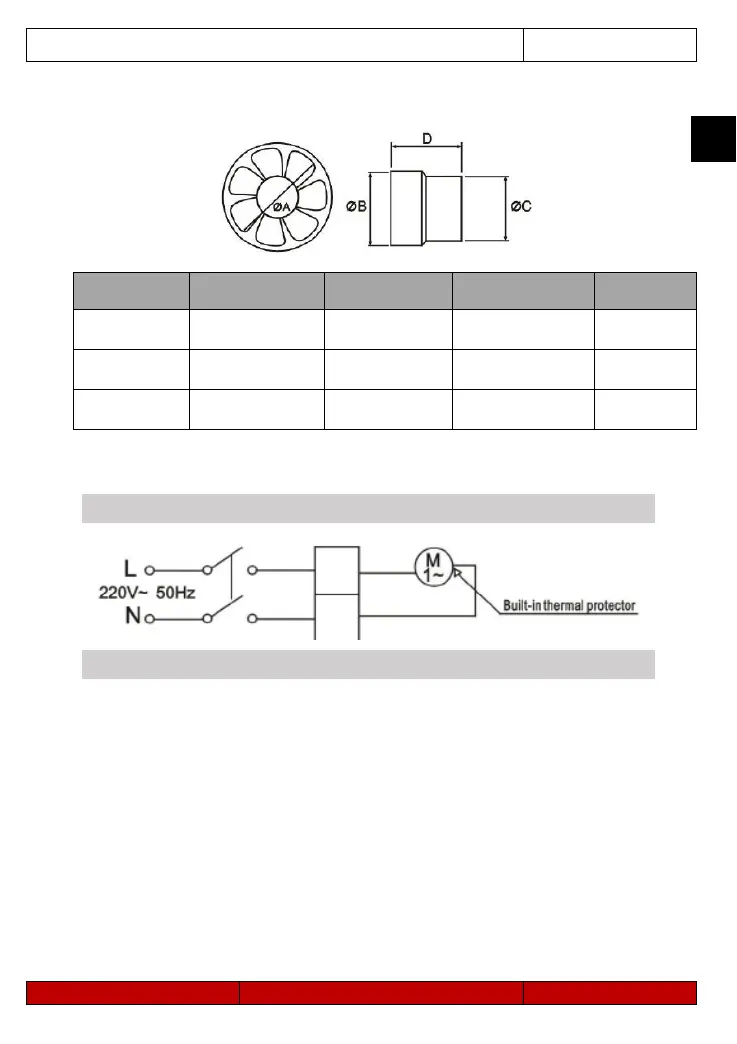

1.2 Product Dimension
Model
A
B
C
D
IDM100
ø100 mm
ø104 mm
ø 98 mm
88 mm
IDM125
ø120 mm
ø128 mm
ø123 mm
88 mm
IDM150
ø150 mm
ø154 mm
ø148 mm
108 mm
2. WIRING DIAGRAM
3. INSTALLATION
3.1 Correct connect the power line of the exhaust fan with
electrical circuit.
3.2. Connect the two individual sides with pipelines, tighten
them with clamp band.
3.3 When starting the exhaust fan, please check if there are any
following malfunctions.
(1) If the impeller works well.
(2) if there is any strong vibration or strange noise.
3.4 If there is no malfunction as declared above, please shut
down the fan, mount connecting box.
