actual conditions of use (taking into account all parts of the operating cycle such as the times when the
tool is switched o and when it is running idle in addition to the trigger time).
4. ASSEMBLY
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly
assembled or assembled with damaged parts !

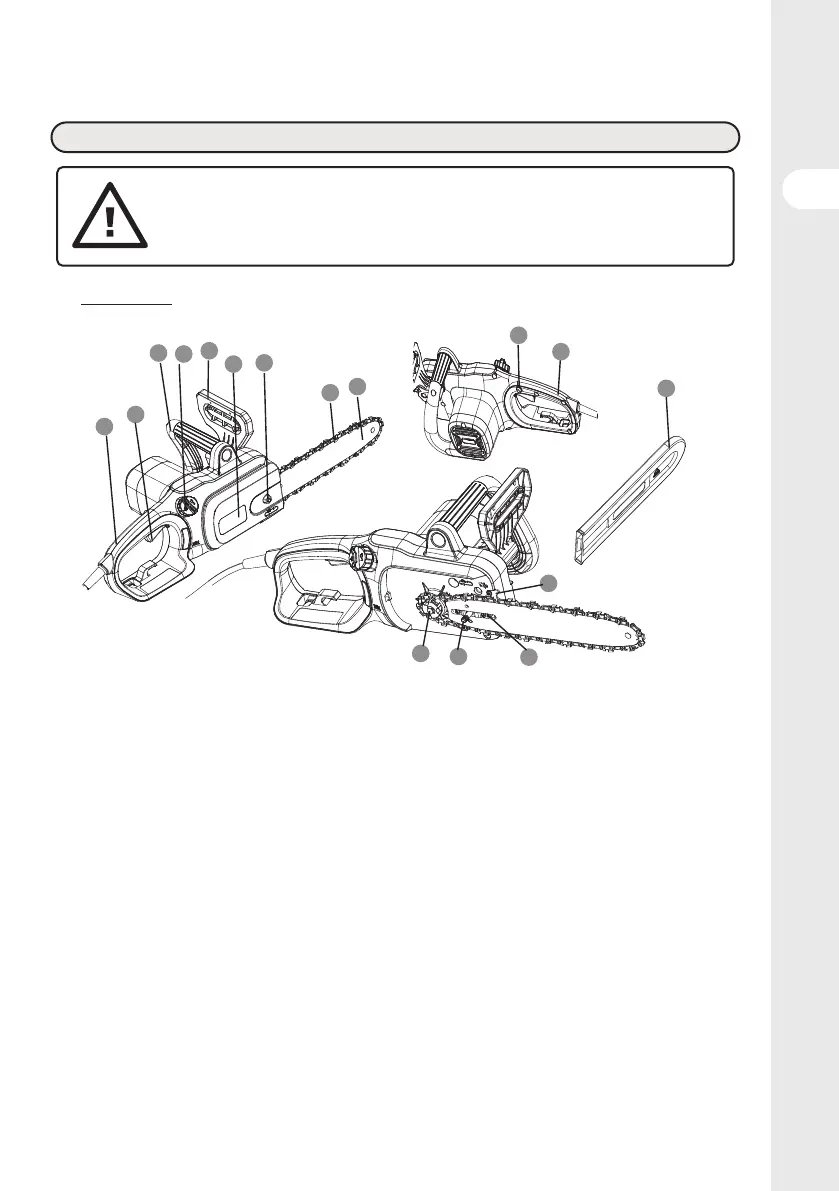

4.1 UNBOXING
15
5
3
4
6
1
14
2
11
13
12
13
7
8
9
10
1. Front handle
2. Safety chain brake lever
3. Chain
4. Guide bar
5. Clamp nut
6. Chain cover
7. Metal bump spikes
8. Locking pin
9. Sprocket
10. Chain tension screw
11. Main switch
12. Safety lock-o button
13. Rear handle
14. Chain oil cap
15. Guide bar cover
16. Tensioning bolt
• Wear gloves when unboxing.
