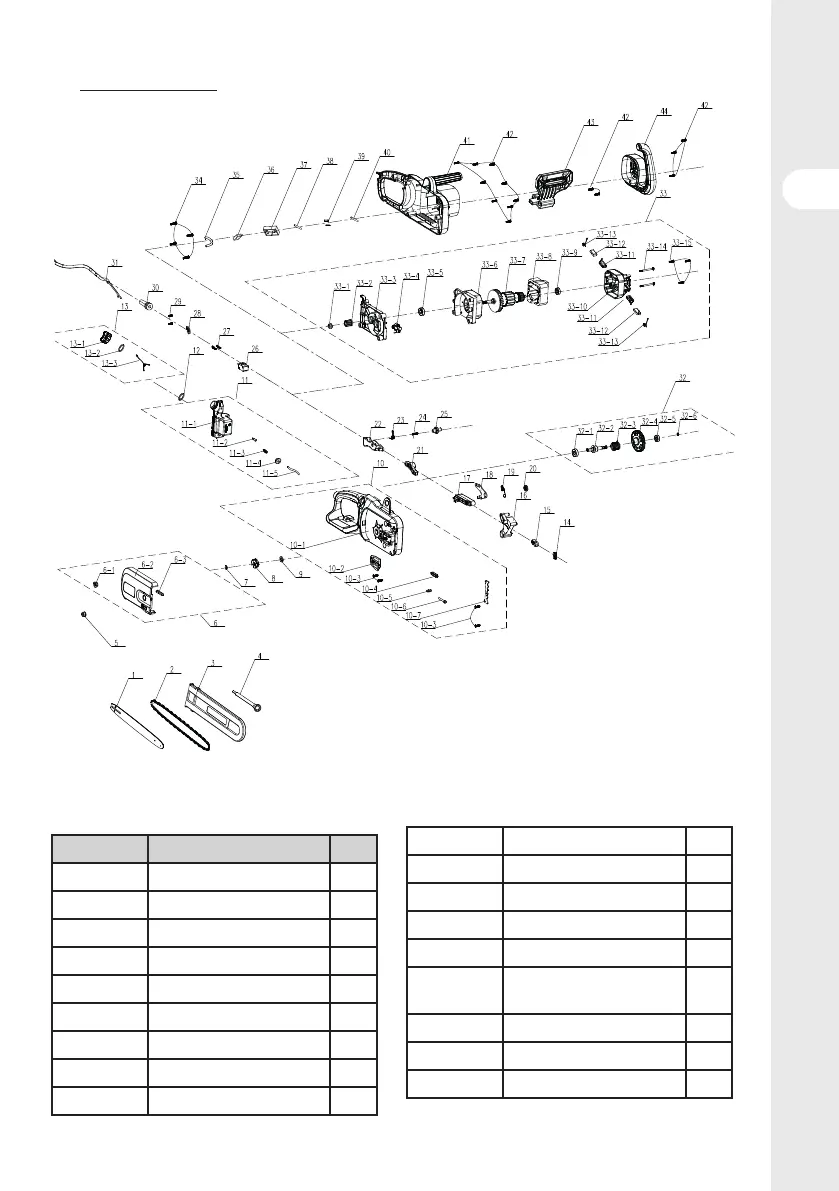

8.3 EXPLODED VIEW
POS DESCRIPTION NB
1 Guide Bar 1
2 Chain Saw 1
3 Knife cover 1
4 Wrenches 1
5 Hex Flange Nut 1
6 End cap assembly 1
6-1 Shaft Sleeve 1
6-2 Cover 1
6-3 End Cover Seal Ring 1
7 Open Ring 1
8 Chain Wheel 1
9 Shaft Sleeve 1
10 Case assembly 1
10-1 cabinet 1
10-2 Thermal Insulation
Gasket
1
10-3 Self-Tapping Screw 4
10-4 Seal ring 1
10-5 Tightening Nut 1
