ASSEMBLY INSTRUCTIONS
MOR950CLS/ MOR950CLC
CAUTION:
STEP 1:
Back Receivers
Steel
Mechanism
Post
Figure A
Figure B
Screwdriver required (not included)
Attached to the top of the swivel base is the hardware bag that includes the power transfor
-mer, power cord and power transformer extension cord. Remove the parts from the bag and
attach the power cord to the transformer and the power transformer extension cord to the
matching end coming from the power transformer. Make sure to close the clip lock to prevent
the connection from coming loose during use. Set the assembly aside to be used in step 5.

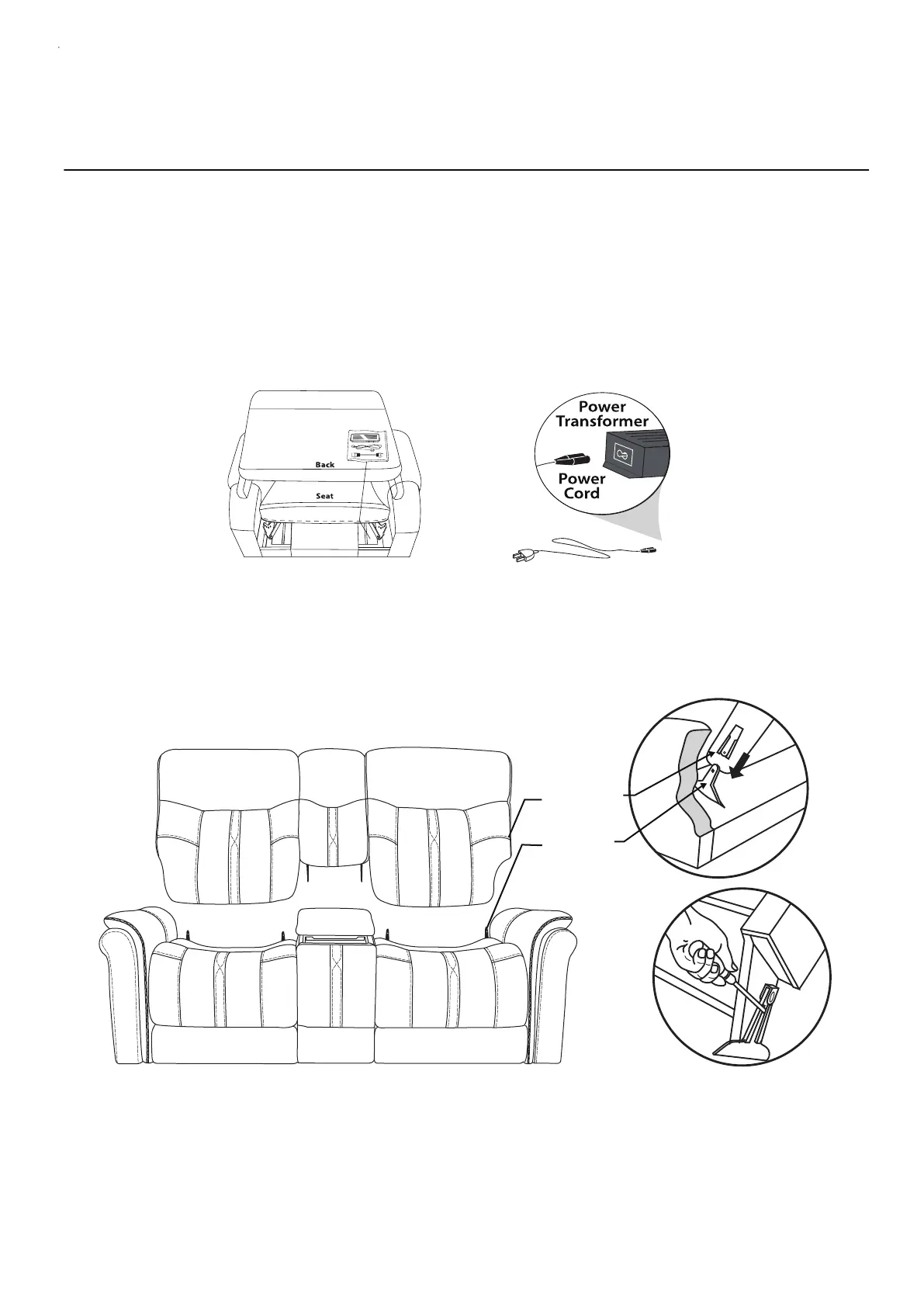

STEP 2: Attaching the Recliner Back: Position the KD back(A) with the KD receivers positioned over
the mechanism post on the recliner body (B) as pictured below. Check to assure both sides
of the mechanism post are positioned inside of the KD receivers on the back frame, push in
a downward motion from the top of the back frame until a clicking sound is heard.
Transformer
and Cord
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY PROCESS. IT IS
RECOMMENDED TO USE TWO PEOPLE WHEN ASSEMBLING AND REMOVING THE INSIDE BACKS
TO AND FROM THE BASE OF THE FURNITURE.
To Next Page
