14
1N5817 rectier diode (1)
#7522
BC-108 Transistor (2)
#101123
Insert the diode leads through the component side (the side with the component’s info
silkscreened in white). In many cases, components must be inserted in a specic direction
due to polarity, so follow the graphics carefully. For example, diodes are polarized, so they
must be installed in the correct orientation. Solder the diode and transistors on the opposite
side of the board, known as the solder side.

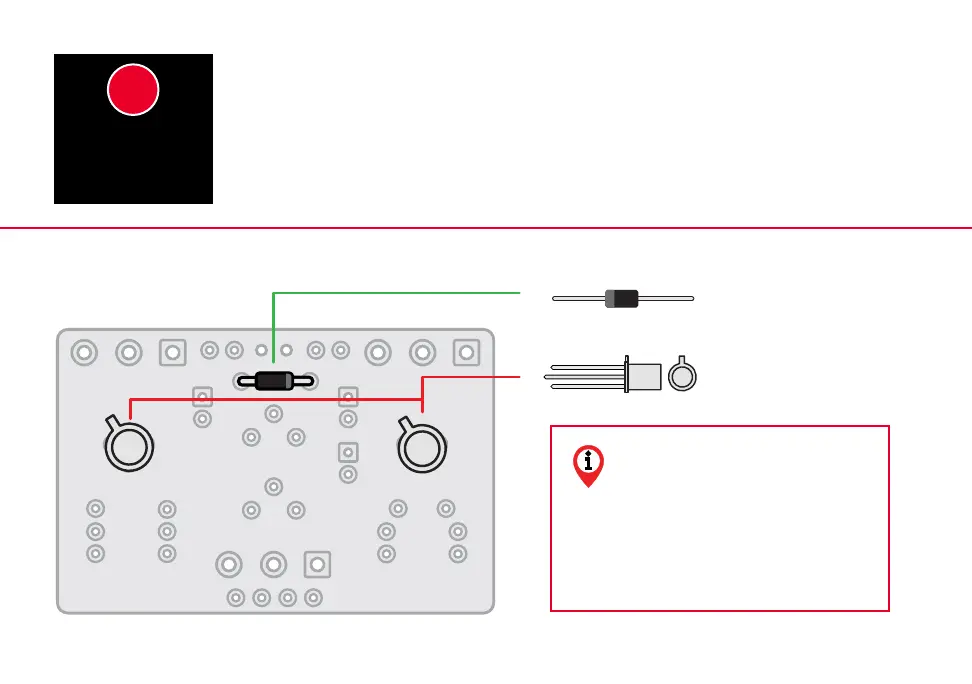

INSTALL
1 DIODE & 2
TRANSISTORS
22
Note the stripe around one end of the diode.
This marks the negative (minus) lead. On
the PCB, the printed outline of the diodes also
shows this stripe. Install each diode to match the
direction shown. Place all diodes with the wires
pointing down, through the component side.
